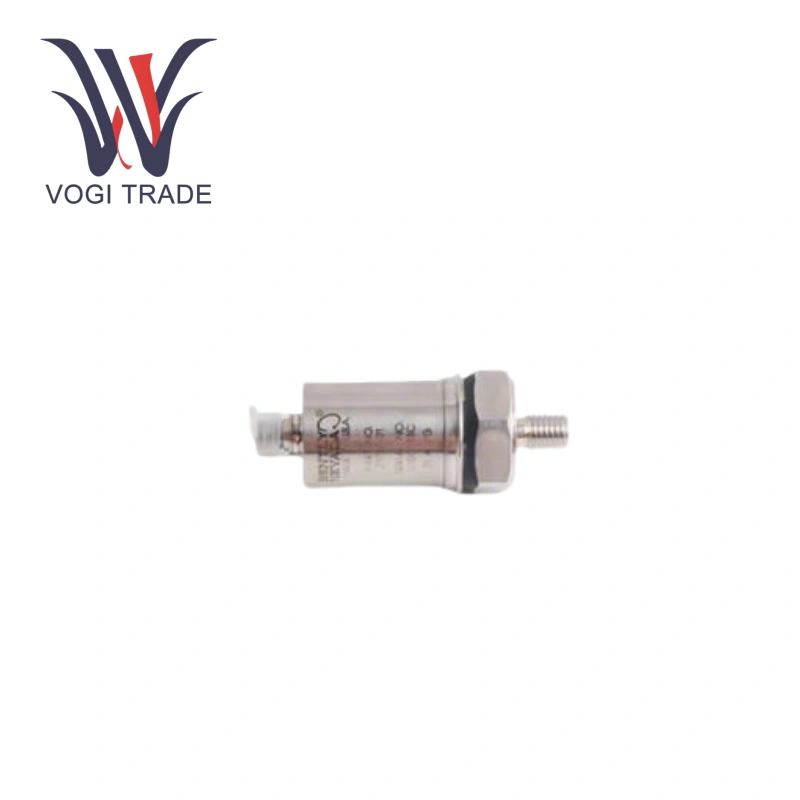

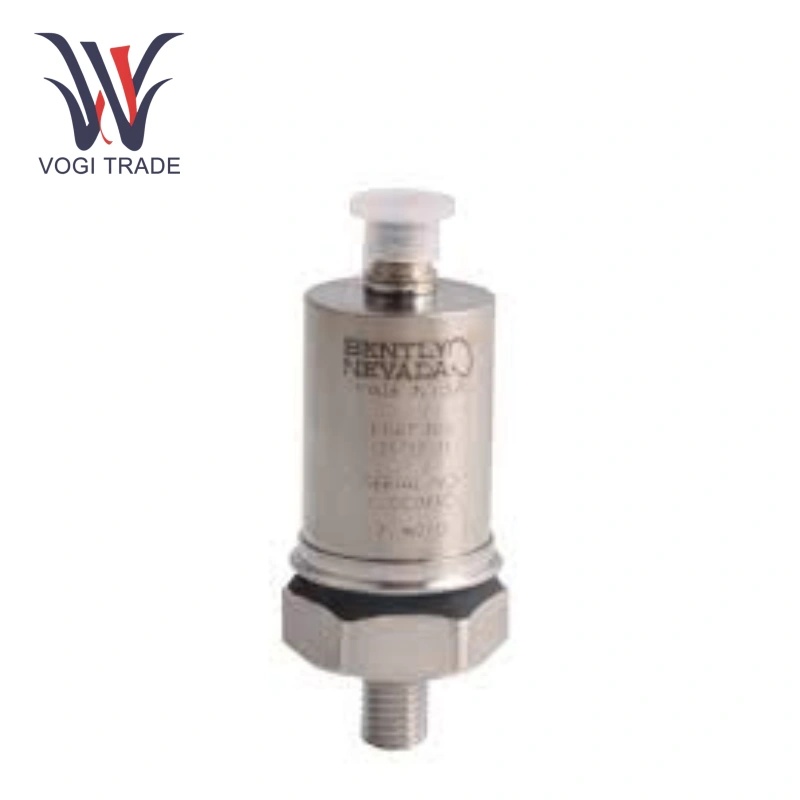

Brand: Bently Nevada Description: Acceleration Transducer System Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 23732-01 Acceleration Transducer System is designed for critical machinery applications requiring casing acceleration measurement, such as gear mesh monitoring. It consists of an accelerometer, interconnecting cable, and an interface module.
|
Manufacture |
Bently Nevada |
|
Model Number |
23732-01 |
|
Ordering Number |
23732-01 |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
17*17*7CM |
|
Weight |
1 kg |
Product Overview
Output Characteristics (Accelerometer):
Sensitivity: 25 mV/g (2.55 mV/m/s²) ±5%.
Acceleration Range: 75 g (735 m/s²) peak.
Frequency Response:
10 Hz to 20 kHz (600 cpm to 1.2 million cpm) ±3 dB.
30 Hz to 10 kHz (1800 cpm to 600,000 cpm) ±5%.
Mounted Resonant Frequency: 30 kHz minimum.
Amplitude Linearity:
±1% to 50 g (490 m/s²) peak.
±5% to 75 g (735 m/s²) peak
Internally connected to system common, with built-in isolators providing isolation from the machine enclosure.
Shock Survivability: ±5000 g (±49,050 m/s²) peak
Interface Module Specifications
Input: Power requirements -18 to -24 VDC, 15 mA maximum (10 mA typical). Cable length maximum 305 m (1000 ft).
Output: Sensitivity 100 mV/g (10.2 mV/m/s²) nominal.
Environmental Limits: Operating temperature -40°C to +100°C (-40°F to +212°F), relative humidity up to 95% non-condensing, weight 170 g (6 oz).
Feature
Bently Nevada 23732-01 with a sensitivity of 25 mV/g (2.55 mV/m/s²) ± 5% and excellent amplitude linearity ensure accurate measurement data.
Bently Nevada 23732-01 with a frequency response range of 10 Hz to 20 kHz fully captures acceleration changes in equipment under various operating conditions.
Bently Nevada 23732-01 used 316L stainless steel housing offers excellent corrosion and wear resistance, ensuring long-term stable operation in harsh environments.
Bently Nevada 23732-01 with a maximum cable length of 305 meters between the interface module and the monitor facilitates long-distance signal transmission in large industrial facilities.
Application
Bently Nevada 23732-01 used to monitor the vibration acceleration of large equipment such as steam turbines and generators, promptly identifying potential faults such as loose components and wear.
Bently Nevada 23732-01 suitable for monitoring the operating status of various pumps, compressors, and other equipment within petrochemical plants.
Accessories and Dimensional Drawings
This document provides detailed dimensional drawings of the accelerometer and interface module for easy installation and integration.

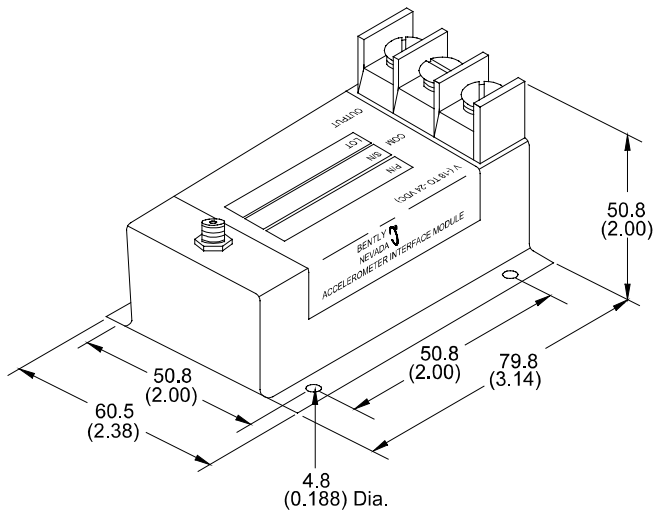

Interface Module Dimensional Drawing (Figure 1):
This drawing shows the physical dimensions of the interface module and is useful for installation planning.

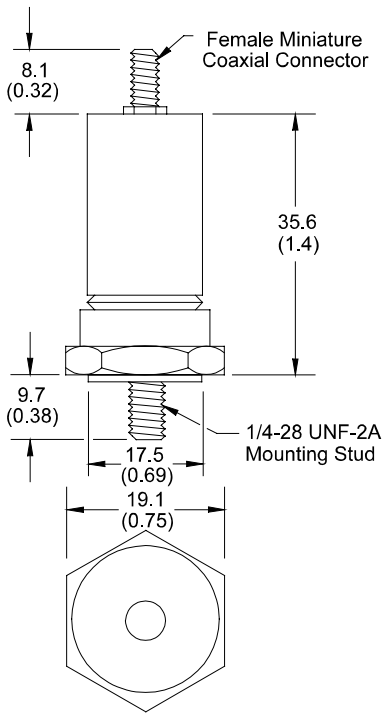

23732 Accelerometer Dimensional Drawing (Figure 2):
This drawing provides detailed dimensions (in millimeters/inches) of the 23732-01 Accelerometer, including mounting threads and height, and is a key reference for installation.
