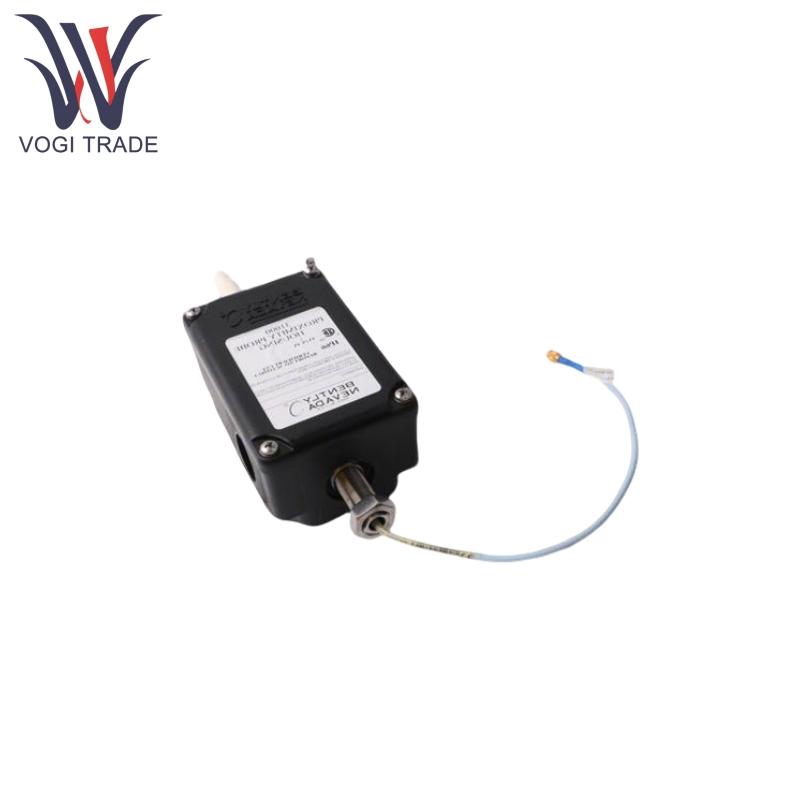

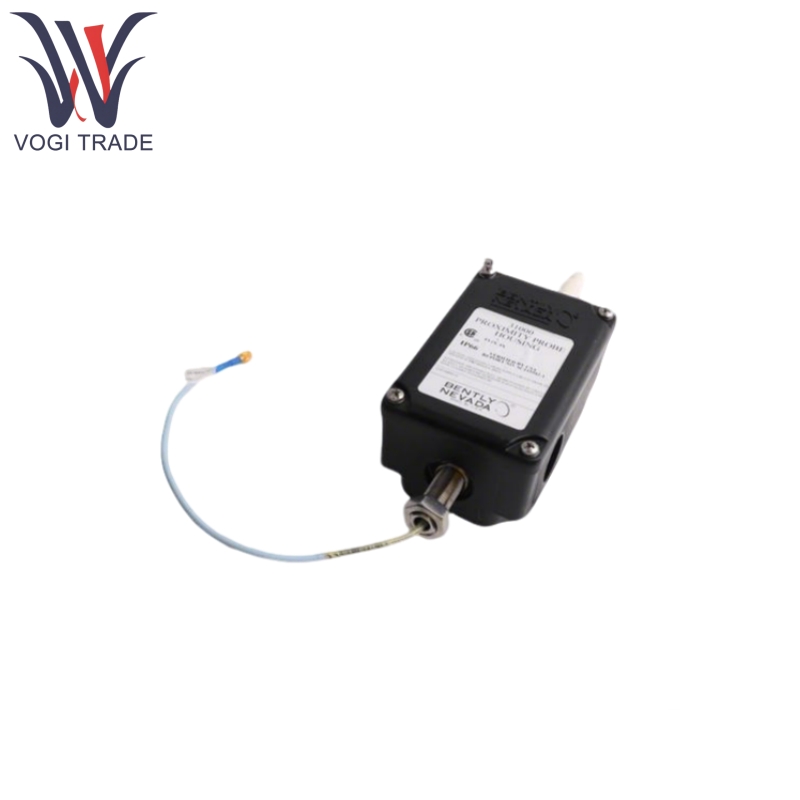

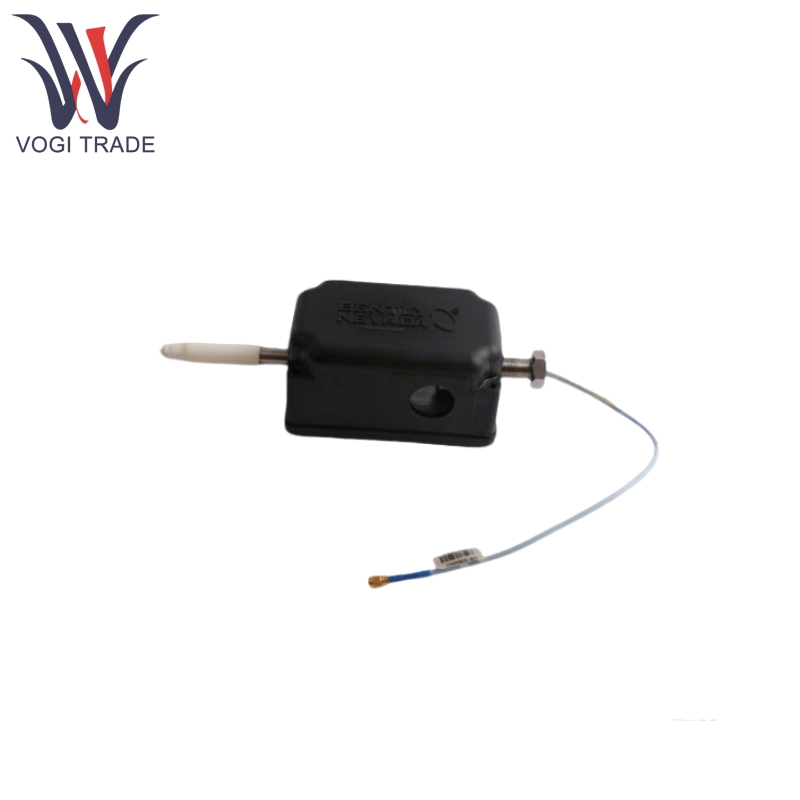

Brand: Bently Nevada Description: Proximity Probe Housing Assembly Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 31000-28-05-35-032-03-02 Proximity Probe Housing Assembly are for both radially-mounted (jacking bolt & stand-off systems), as well as axially-mounted probes, which complies with the American Petroleum Institute (API) 670, offer mechanical and environmental protection and allow for gap adjustment, or probe replacement without the need to dismantle the machine for condition monitoring applications on industrial rotating machines.
|
Manufacture |
Bently Nevada |
|
Model Number |
31000 |
|
Ordering Number |
31000-28-05-35-032-03-02 |
|
Catalog |
- |
|
Country Of Origin |
United States (US) |
|
HS CODE |
9030900090 |
|
Dimension |
8cm |
|
Weight |
1kg |
Product Features
Bently Nevada 31000-28-05-35-032-03-02 protects against machinery and the environment with a glass fiber reinforced polyphenylene sulfide (PPS) thermoplastic housing (with conductive fibers) and AISI 303/304 stainless steel sleeves and external screws for high corrosion resistance.
Bently Nevada 31000-28-05-35-032-03-02 meets NEMA 4X and IP66 standards for protection against high-pressure water washdown and dust intrusion, making it suitable for harsh industrial environments.
Bently Nevada 31000-28-05-35-032-03-02 is flexible and easy to install for adjusting probe gaps or replacing probes without disassembling the machine, reducing downtime, and is designed with bracket adapters and penetration lengths to accommodate different machine enclosure thicknesses.
Bently Nevada 31000-28-05-35-032-03-02 meets API 670 standards for external probe mounting on critical rotating machinery, and can be used in intrinsically safe hazardous areas (non-explosion-proof enclosure, CA21000/CA24701 required for explosion-proofing) in conjunction with certified sensor systems and safety barriers.
Bently Nevada 31000-28-05-35-032-03-02 supports a wide range of conduit fittings (3/4-14 NPT fittings, reducers, etc.) for use with hard or metal conduit, and includes cable sealing clips to ensure sealing and retention of armored cables.
Product Using Principle
Installation Procedure:
Bently Nevada 31000-28-05-35-032-03-02 secure the outer sleeve to the machine housing, insert the probe sleeve and adjust the clearance between the probe and the target surface, disconnect the probe cable, place the housing over the outer sleeve, secure it with the retainer and lock nut, reconnect the cable, close the housing cover and tighten the captive screws to complete the installation.
Signal Transmission Guarantee:
Bently Nevada 31000-28-05-35-032-03-02 the housing provides physical protection for the probe and cable from mechanical damage, and the conductive fiber material and sealing design reduces electromagnetic interference and ensures stable transmission of vibration or keying signals to the monitoring system.
Gap Adjustment and Maintenance:
Bently Nevada 31000-28-05-35-032-03-02 adjusts the probe penetration length with a socket (±0.5 inch / 13 mm range) to calibrate the probe-to-target distance without disassembling the machine, ensuring measurement accuracy.
Product Parameters
The following detail is for Bently Nevada 31000-28-05-35-032-03-02.
Operating Temperature: -51°C to +105°C (-60°F to +221°F)
Hot Water / Steam Exposure:
Short-term (≤1 week) exposure to 95°C hot water or condensing steam does not significantly affect strength
Long-term exposure (6-8 weeks) may reduce strength to 50% of initial values
Housing Material: Glass fiber reinforced PPS (with conductive fibers)
Sleeve and screw material: AISI 303 (external)/304 (sleeve) stainless steel
O-ring material: Neoprene
Recommended locknut torque: 29.4 N-m (260 in-lb)
Housing strength (typical): withstands 912 N (205 lb) load (38 mm from unsupported end)
Impact strength: 2 x 4 Joule impacts at -39°C and 115°C, 7 Joule impacts at room temperature (BASEEFA/CSA certified)
