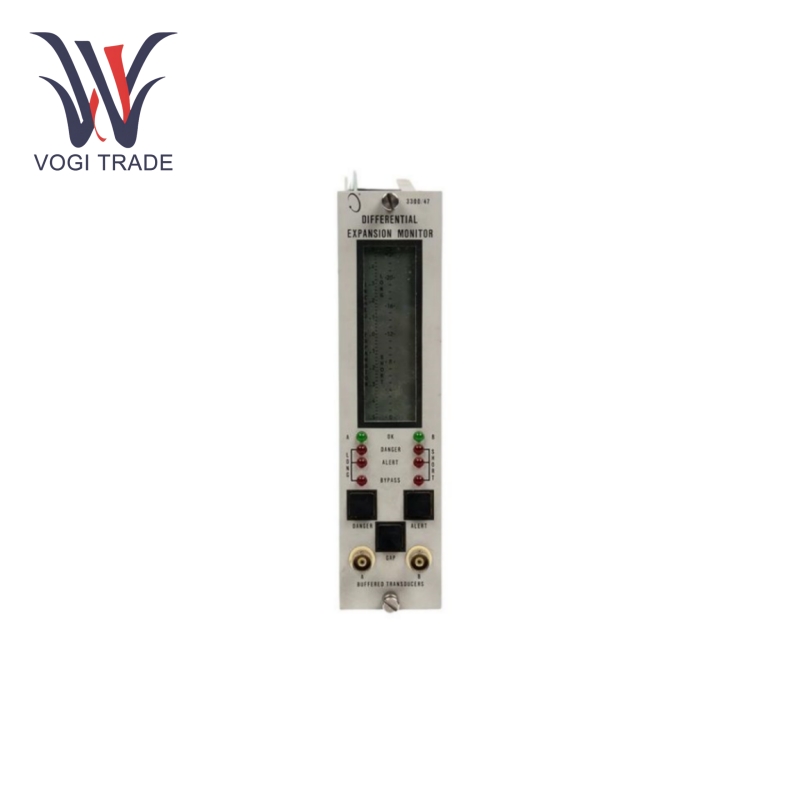

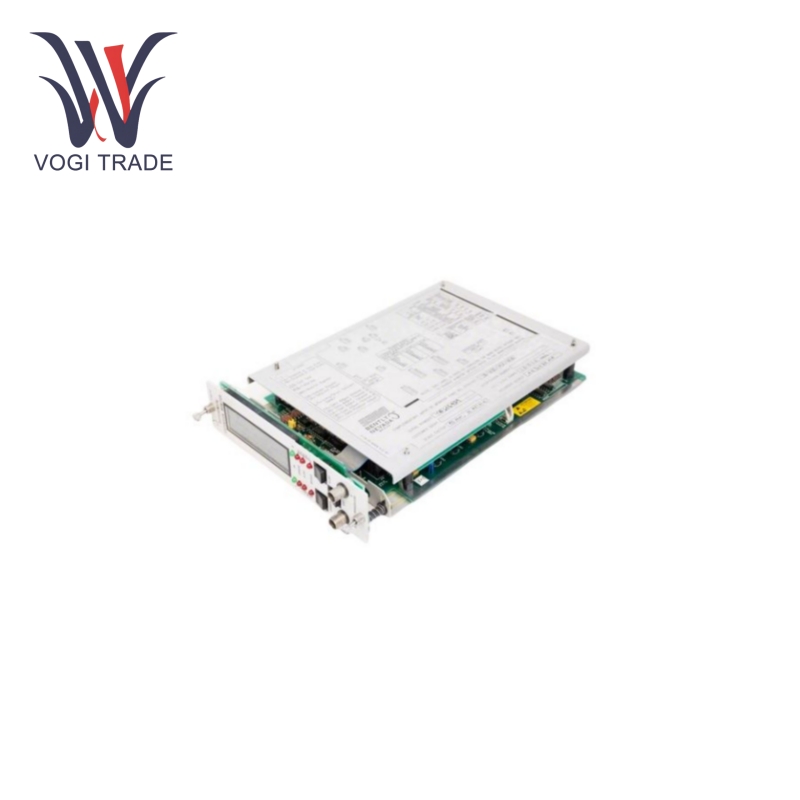

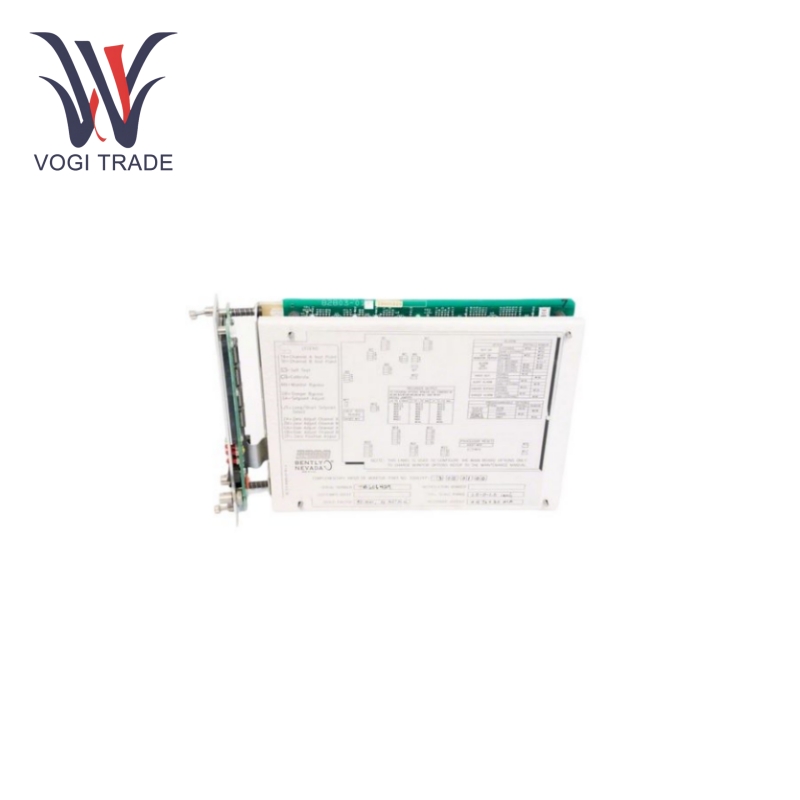

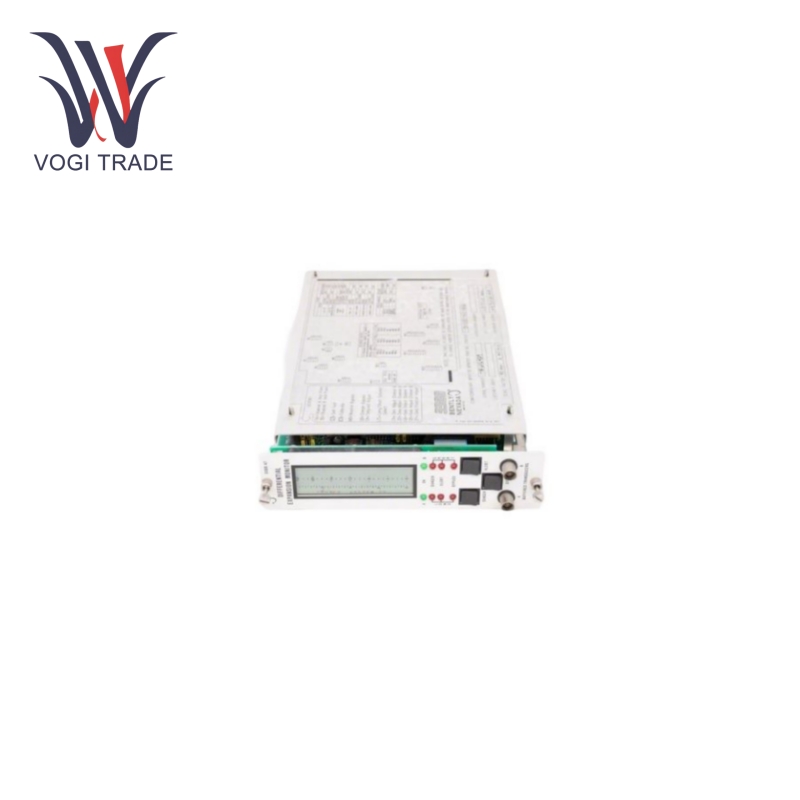

Bently Nevada 3300/47 141509-01

Operating Parameters

Operating Temperature: For most conventional equipment, the operating temperature range is -20°C to +65°C. This covers almost the entire range of industrial applications, from mild to hot conditions, without serious performance degradation.

Supply Voltage: Standard power supply operation is expressed with a 24 VDC supply voltage. This stable power input range provides reliable operating stability.

Frequency Response: Bently Nevada 3300/47 141509-01 provides good frequency response, which is critical for vibration monitoring and measurement. It has a wide frequency bandwidth of 10 Hz to 1000 Hz or more, depending on the specific configuration and application requirements. This makes it very good at detecting vibrations, from low-frequency vibrations associated with slow mechanical movement to high-frequency vibrations that may be related to mechanical stress or defects.

Product Features

Monitoring Vibration: Bently Nevada 3300/47 141509-01 is primarily used for vibration monitoring in industrial plants and can be used to accurately measure the amplitude and frequency of vibrations. By continuously monitoring these parameters, it can provide early warning signs for possible mechanical problems such as imbalance, misalignment, bearing wear, and resonance. It can be used with turbine engines, for example, to detect subtle changes in vibration levels that could otherwise cause catastrophic mechanical failure, allowing responsive maintenance measures to ensure that costly failures do not occur.

Signal Conditioning: Internal conditioning of the signal is integrated into it. This means that the device can take the raw sensor signals from the vibration sensor and present them in a form that allows for accurate measurement and analysis. This filters noise and interference, amplifies weak signals, and linearizes the output, making the measurements reliable and repeatable.

Data Output and Communication: Bently Nevada 3300/47 141509-01 offers a variety of data output systems. Analog output applications with typical 4 - 20 mA signals can usually be well integrated into existing control systems. Digital communication interfaces include RS485 and Ethernet. This establishes a seamless connection with a supervisory system or DCS. The result is a continuous transmission of real-time data, allowing remote monitoring of equipment vibration status from the control room or any active remote center. For example, a large industrial plant with a large number of machines makes it easy for engineers to collect and analyze vibration data for each machine even if they are not near the equipment.

Application Range

Power Generation: They are often used to monitor the vibration of turbines, generators and other important rotating equipment in power plants. With this measure, it is possible to ensure that these machines operate smoothly within the limits of grid stability and reliability. In thermal power plants, Bently Nevada 3300/47 141509 - 01 can be placed on the steam turbine shaft for continuous vibration monitoring. The detection of any abnormal vibration will lead to immediate action, thus preventing failures that may cause power outages.

Petrochemical Industry: They are used in refineries and chemical plants to monitor pumps, compressors and other process equipment. Due to the harsh and corrosive environment, monitoring the vibration of these facilities becomes imperative as they help ensure the safety and efficiency of the equipment. An example is in a petrochemical pipeline, where pumps can be monitored by machine vibration, providing warning signs in the event of cavitation or mechanical damage that could eventually lead to leaks or process disruptions.

Manufacturing: In a manufacturing plant, it can be applied to various types of machinery such as machine tools, conveyors, and industrial fans. By monitoring the vibration of these machines, manufacturers can improve product quality and reduce maintenance costs, thereby increasing productivity. For example, in a precision machining plant, Bently Nevada 3300/47 141509-01 is used to monitor the vibration of machine tools. When a predetermined vibration threshold is reached, it may indicate a problem with the cutting tool or machine tool spindle, and corrective action can be taken.
