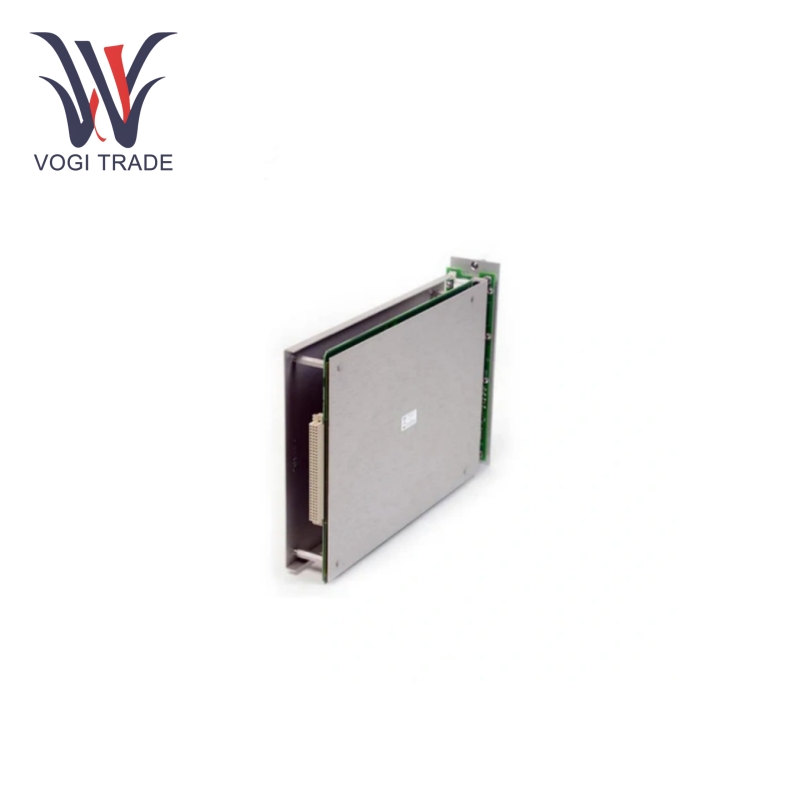

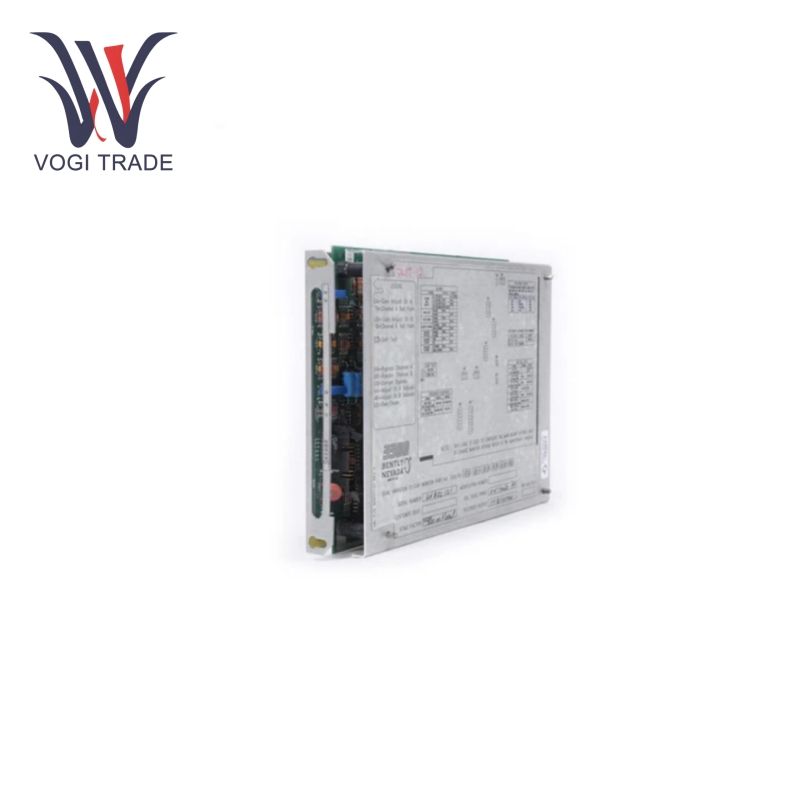

Bently Nevada 3300/50 141512-01

Operating Parameters

Power Supply Voltage: Designed to operate at 22 - 26 VDC, it ensures sufficient power to power the device while preventing stalling under varying industrial line power conditions.

Operating Temperature: With an operating temperature range of -20°C to +65°C, it can be used in systems in cold or hot industrial environments, such as outdoor power plants or indoors in industrial manufacturing plants with variable temperature settings.

Probe Compatibility: The Bently Nevada 3300/50 141512-01 supports certain types of probes, such as eddy current displacement probes, which have their own measurement range and accuracy. For example, an eddy current probe may have a measurement range from a few millimeters to a few centimeters, with an accuracy of up to 0.01 mm or more, enabling accurate detection of shaft displacement or vibration.

Product Features

Vibration Monitoring: Probably the most widely used for vibration monitoring of rotating equipment, it can continuously measure the vibration amplitude and frequency of machine shafts, bearings, and more critical components. It can detect early signs of mechanical failure, such as imbalance, misalignment, or bearing wear, by analyzing vibration data. For example, if the vibration amplitude exceeds a preset threshold, an alert can be sent to maintenance personnel.

Displacement Measurement: The Bently Nevada 3300/50 141512-01 can measure the axial and radial displacement of rotating shafts, which is necessary for the proper alignment and positioning of machine parts. For example, measuring the displacement of a shaft in a turbine system can maintain the gap between the shaft and its housing to prevent friction or any potential damage.

Signal Conditioning and Processing: The Bently Nevada 3300/50 141512-01 has inherent signal conditioning circuitry. Key functions include noise suppression, signal amplification of weak signals from the equipment, and then converting analog signals to digital signals for processing and interpretation. This means that all data used for decision making will be high quality and trustworthy.

Application Areas

Power Generation: The Bently Nevada 3300/50 141512-01 is widely used in power stations to maintain and monitor turbines, generators, and other large rotating gears. Continuously monitoring the vibration and displacement of these machines limits catastrophic failures and downtime, and improves power generation efficiency and reliability. For example, in a hydroelectric power plant, monitoring the vibration of the turbine rotor ensures that the subsequent power generation source is running smoothly.

Petrochemical Industry: The Bently Nevada 3300/50 141512-01 is used to monitor the operating conditions of numerous pumps, compressors, and other rotating machinery in refineries and petrochemical plants. This quickly identifies any potential problems, allowing for planned maintenance to prevent unplanned downtime that can lead to increased production costs and pose safety risks.

Manufacturing: The Bently Nevada 3300/50 141512-01 is used in a variety of manufacturing processes to monitor rotating machinery such as machine tools, fans, and conveyors. It helps maintain product quality by ensuring process stability and reduces costs by reducing equipment downtime and repairs.
