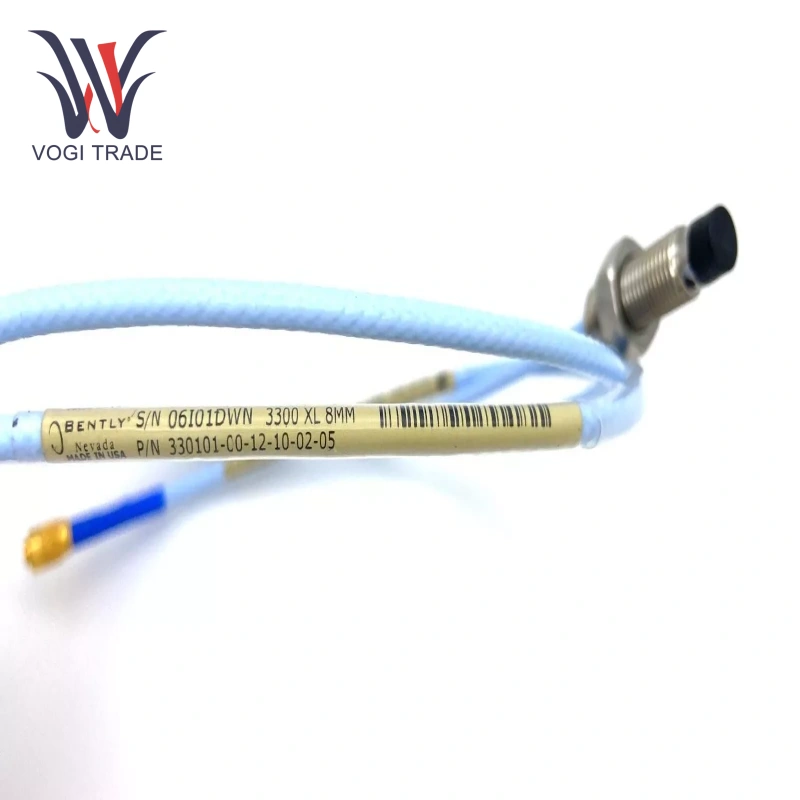

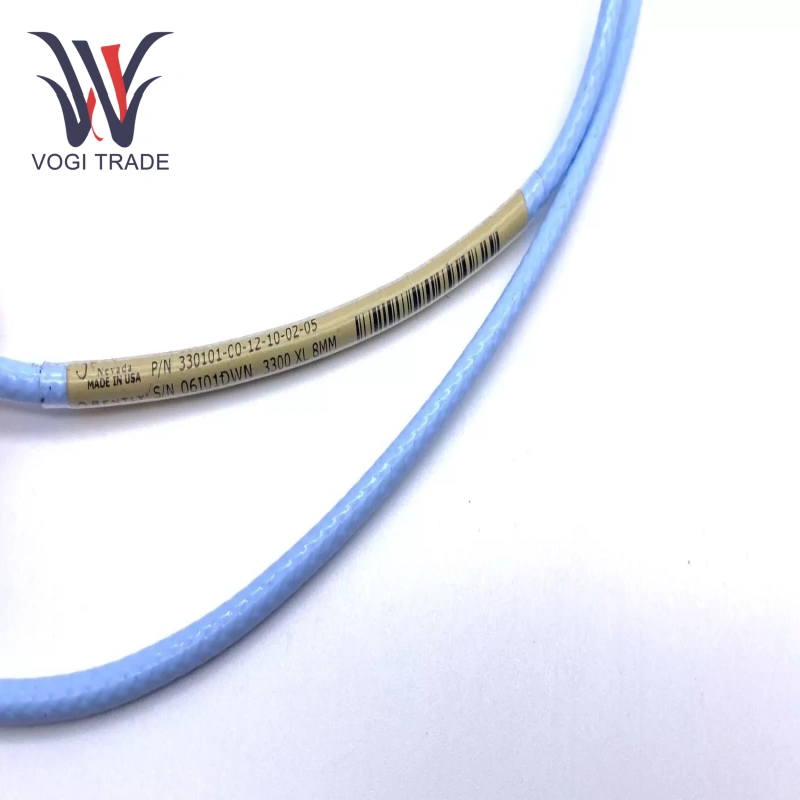

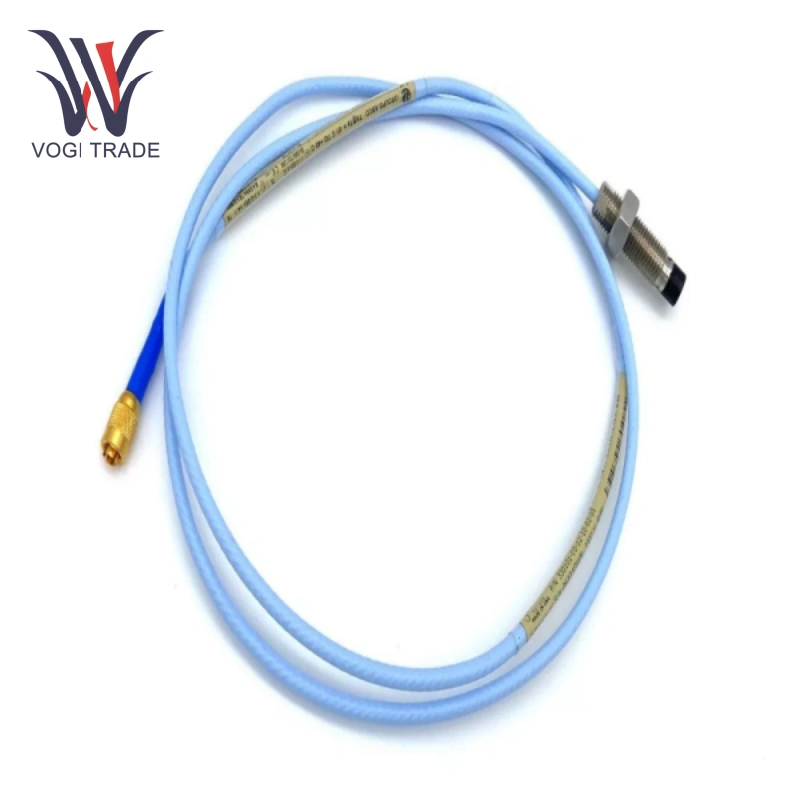

Bently Nevada 330101-00-12-10-02-05

Ordering Number Information

Part Number-AA-BB-CC-DD-EE

330101-00-12-10-02-05

330101: 3300 xL8mm Probe, 3/8-24 UNF thread, without armor

00(Unthreaded length): 0.0 in

12(Overall Case Length)：12mm

10(Total Length)：1.0 meter (3.3 feet)

02(Connector and Cable-Type)：Miniature coaxial click lock connector, standard cable

05(Agency Approval)：CSA, ATEX, IECEx Approvals

Technical Parameters

Static (displacement) measurement range: 0.25mm (10 mils) to 2.3mm (90 mils)

Dynamic (vibration) measurement range: supports API 670 standard, suitable for industrial equipment vibration monitoring

Sensitivity coefficient: 7.87V/mm (corresponding to 8mm probe)

Output signal: voltage signal proportional to the distance between the probe and the surface of the conductor being measured

Standard temperature range: -24°C to +177°C (-12°F to +350°F)

Optional extended temperature range (ETR) components: up to +260°C (+500°F)

Product Features

High reliability: Bently Nevada 330101-00-12-10-02-05 Compliant with API 670 standard, suitable for monitoring key equipment such as turbines and compressors

Strong anti-radio interference (RFI/EMI) capability, CE certification is passed without shielded conduit

Flexible configuration:Probes are available in 8mm or 5mm sizes, and extended cable lengths can be customized (such as 4 meters standard configuration)

Support FluidLoc™ cable to prevent oil or gas leakage along the cable

Easy to maintain:SpringLoc™ terminal design prevents loose wiring
