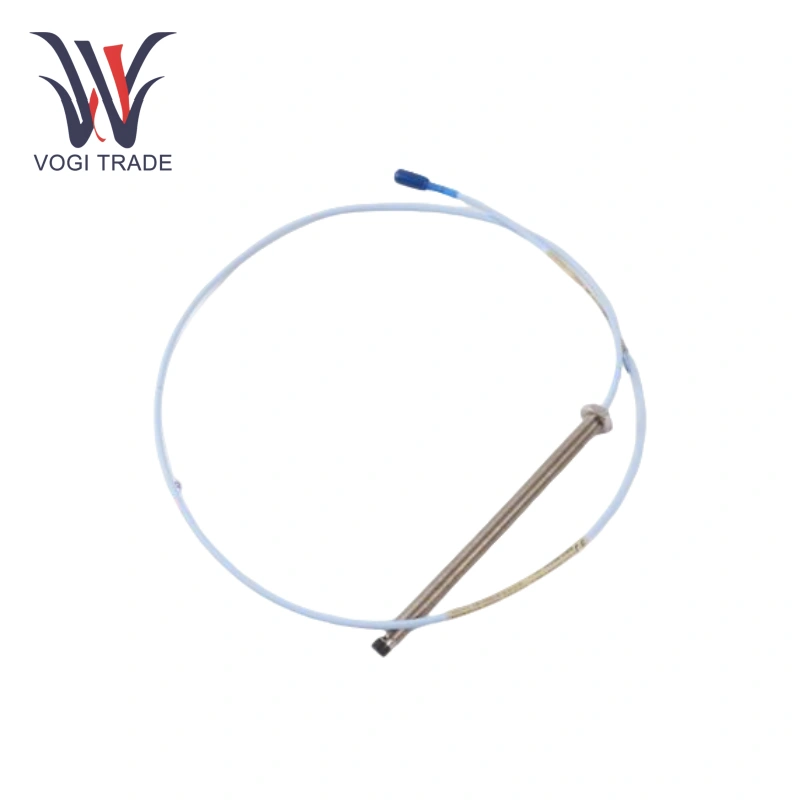

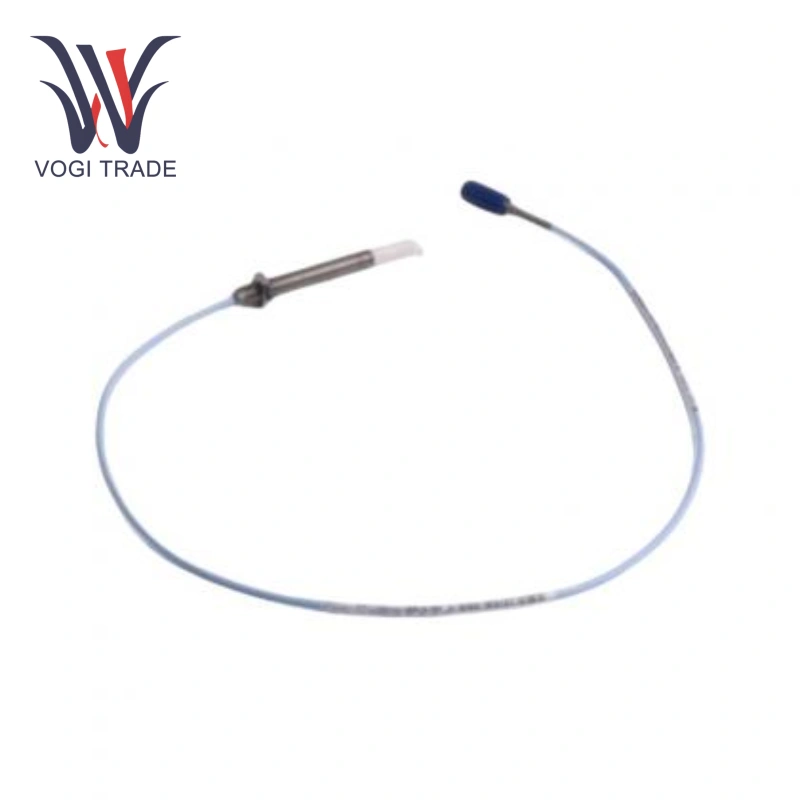

Brand: Bently Nevada Description: Proximity Transducer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330102-00-80-10-02-05 is a high-precision industrial-grade vibration accelerometer. Its core function is to convert the vibration acceleration signal of rotating machinery into a standard 4-20mA current output for real-time acquisition of dynamic vibration data of the equipment.
|
Manufacture |
Bently Nevada |
|
Model Number |
330102-00-80-10-02-05 |
|
Ordering Number |
330102-00-80-10-02-05 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
18*18*6CM |
|
Packing Dimension |
20*20*7CM |
|
Weight |
1.0 kg |
Product Overview
Measurement Type: Vibration Acceleration
Measurement Range: ±100 g
Frequency Response: 0.2-5000 Hz (±3 dB)
Output Signal: 4-20 mA DC (two-wire, ISA standard)
Accuracy: ±0.3% FS
Supply Voltage: 12-30 V DC
Operating Temperature: -50°C to +180°C (-58°F to +356°F)
Protection Rating: IP68
Cable Entry: M20×1.5 threaded (stainless steel gland)
Mounting: 1/4"-28 UNF threaded stud (standard) or magnetic adapter (optional, pull-off force ≥20kg)
EMC Compliance: EN 61000-4-2/3/4/5/6/8/9 (immune to EMI/RFI/ESD, 10V/m field strength)
Long-term Stability: ≤±0.1% FS/year (under -40°C to +180°C)
Shock Resistance: 500g peak (11ms, IEC 60068-2-27)
Calibration: Factory pre-calibrated (ISO 17025 traceable, includes calibration certificate with uncertainty budget)
Product Features
Bently Nevada 330102-00-80-10-02-05 frequency range of 0.2-5000Hz far exceeds the 0.5-2000Hz limit of conventional sensors.
Bently Nevada 330102-00-80-10-02-05 featuring a fully sealed 316L stainless steel housing with fluororubber seals, the IP68 protection rating supports long-term immersion in water up to 3 meters deep.
Bently Nevada 330102-00-80-10-02-05 operating temperature range extends from -50°C to +180°C, making it suitable for direct installation in cracking furnaces in refineries or critical equipment in polar oil and gas fields.
Bently Nevada 330102-00-80-10-02-05 integrated triple shielding (silver-plated copper mesh + aluminum foil + integral metal housing) and adaptive digital filtering ensure an output signal-to-noise ratio (SNR) of >95dB even in strong electromagnetic environments.
Applications
Bently Nevada 330102-00-80-10-02-05 is widely used in key rotating equipment in the fields of electric power, oil refining, metallurgy and ship power. By monitoring the vibration amplitude and frequency characteristics, it can achieve early fault warning such as bearing wear, rotor imbalance, and gear meshing abnormality.
Note
Bently Nevada 330102-00-80-10-02-05 cable treatment: Use shielded twisted-pair cable with the shield grounded at one end to avoid ground loop interference. When the cable length exceeds 500 meters, it is recommended to use low-noise coaxial cable to reduce signal attenuation.
