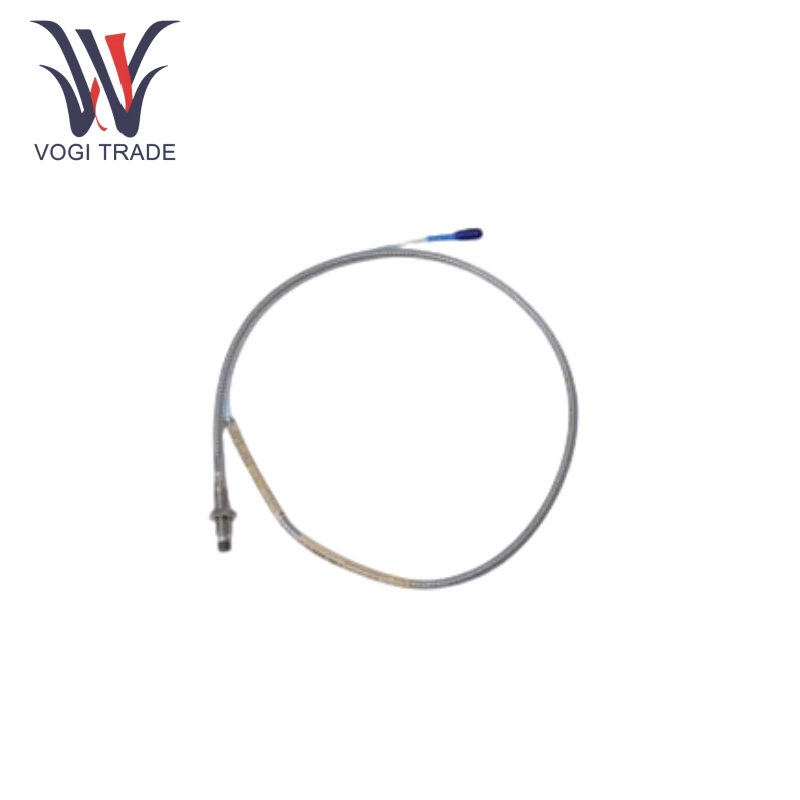

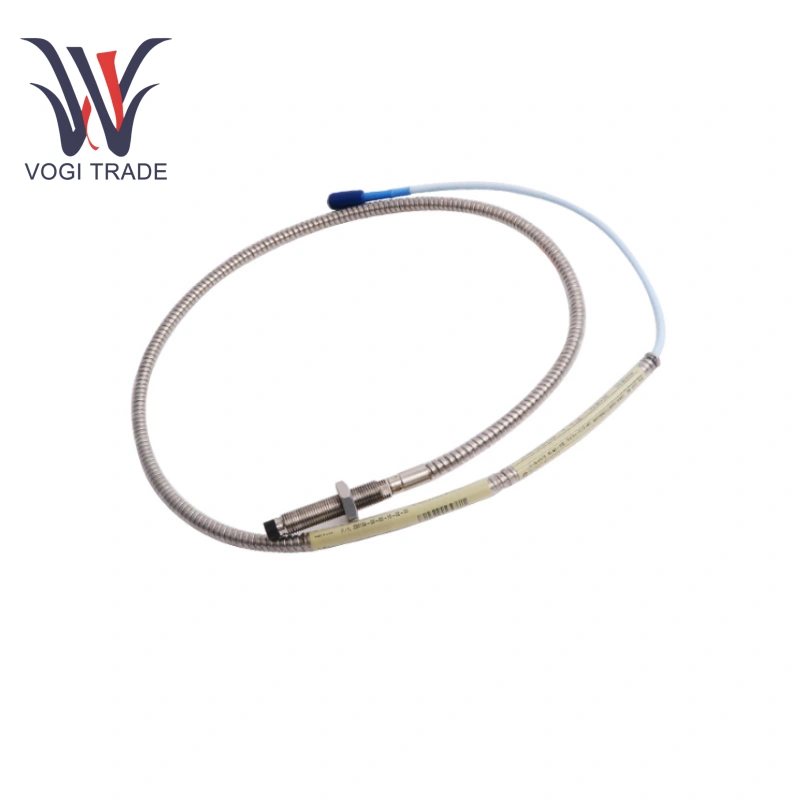

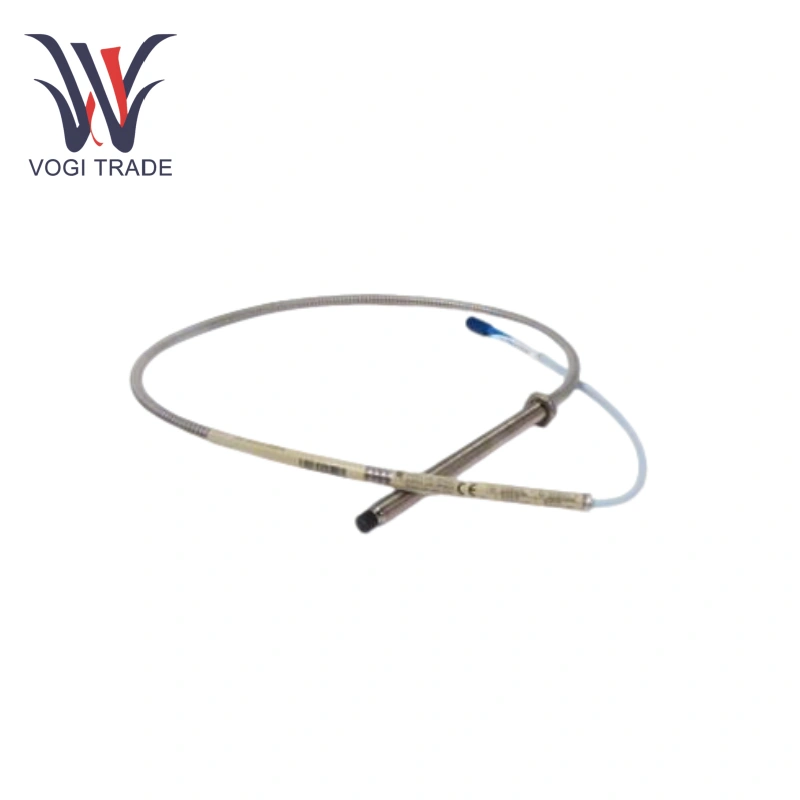

Bently Nevada 330104-01-12-05-01-05

Product Overview

Measurement Type: Vibration Velocity (RMS)

Measurement Range: 0-12 mm/s (±3% FS)

Frequency Response: 5-2000 Hz (±3 dB)

Output Signal: 0-10 V DC (linear, zero-based)

Accuracy: ±0.3% FS (at 25°C, factory calibrated)

Supply Voltage: 15-30 V DC (nominal 24V DC)

Operating Temperature: -40°C to +150°C (-40°F to +302°F)

Protection Rating: IP68 (NEMA 6P, submersible up to 1m)

Cable Entry: M12×1.5 threaded (stainless steel gland)

Mounting: 1/4"-28 UNF threaded stud (standard) or magnetic adapter (optional)

EMC Compliance: EN 61000-4-2/3/4/5/6/8/9 (immune to EMI/RFI/ESD)

Long-term Stability: ≤±0.08% FS/year (under stable conditions)

Shock Resistance: 50g peak (11ms, IEC 60068-2-27)

Calibration: Factory pre-calibrated (ISO 17025 traceable, includes calibration certificate)

Product Features

Ultra-Wide Frequency Response and High Resolution: Bently Nevada 330104-01-12-05-01-05 have 5-2000Hz frequency range far exceeds the 10-1000Hz limit of conventional vibration sensors. The 0.3% full-scale accuracy enables detection of even the smallest vibration changes.

Extreme Environment Tolerance: Bently Nevada 330104-01-12-05-01-05 used IP68 protection rating and 316L stainless steel housing enable direct installation in underwater equipment, high-temperature steam areas, or highly corrosive chemical environments.

Interference Resistance and Signal Purity: Bently Nevada 330104-01-12-05-01-05 integrated triple shielding (conductor shield + double-layer braided mesh + integral metal housing) and digital filtering circuitry suppress electromagnetic interference generated by equipment such as inverters and welding machines, achieving an output signal-to-noise ratio exceeding 90dB.

Applications

Bently Nevada 330104-01-12-05-01-05 is widely used in key rotating equipment in the power, petroleum refining, metallurgy, and papermaking sectors. By monitoring vibration amplitude and frequency characteristics, it provides early warning of equipment failures.

Alternative Models

For monitoring high-frequency equipment or extreme environments, the 330104-01-12-05-01-05's 2000Hz frequency response and IP68 protection are unmatched advantages over other models.

Compared to the 330130-085-01-05 in the same series, its 12mm/s range covers more high-vibration amplitude scenarios and reduces signal distortion caused by over-range.

For long-distance transmission (>1000 meters), current output models offer greater attenuation resistance. However, the 0-10V output of the 01-12-05-01-05 is more compatible with the high input impedance requirements of data acquisition cards (DAQs) over shorter distances (<500 meters), eliminating the need for an additional signal amplifier.
