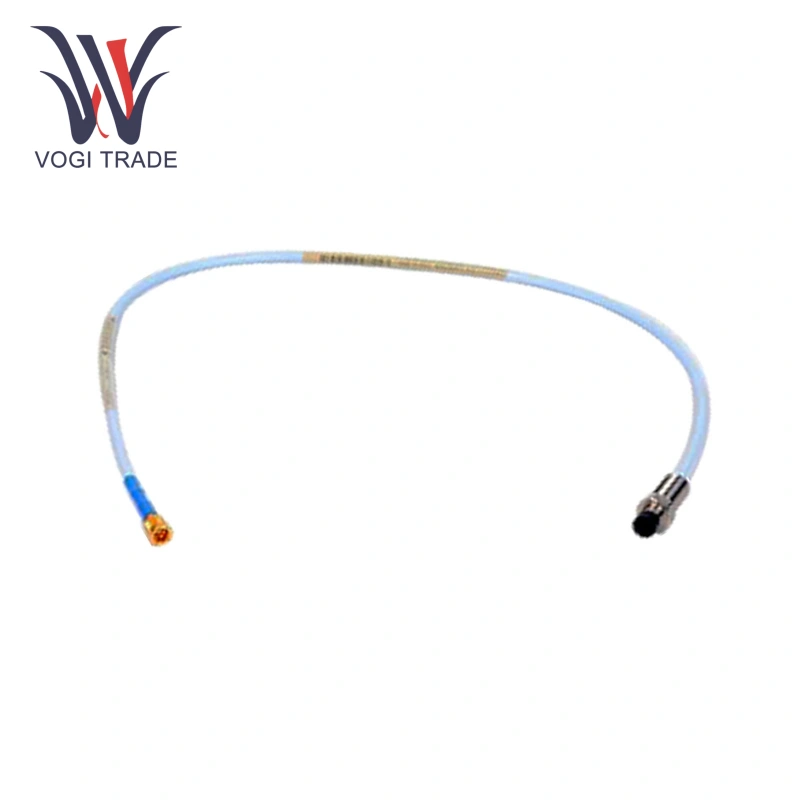

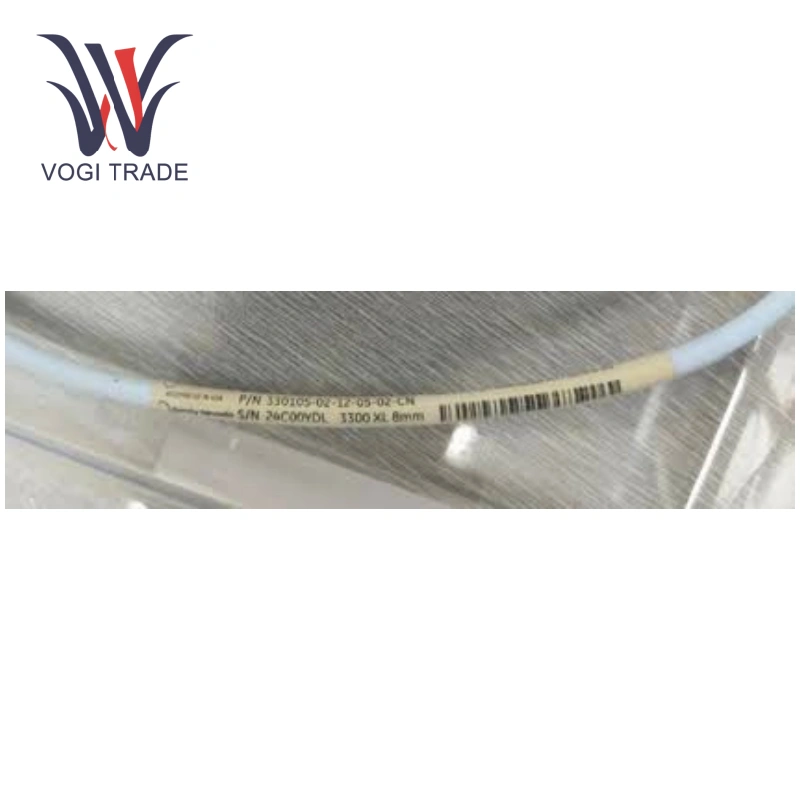

Brand: Bently Nevada Description: Reverse Mount Probe Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330105-02-12-05-02-CN is an 8mm reverse-mount probe for the 3300 XL Series, designed for industrial equipment health monitoring. The unthreaded portion of the probe is 2mm long, the overall probe housing length is 12mm, and the total system length is 0.5 meters (1.6 feet).
|
Manufacture |
Bently Nevada |
|
Model Number |
330105-02-12-05-02-CN |
|
Ordering Number |
330105-02-12-05-02-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
30*30*4CM |
|
Packing Dimension |
32*32*6CM |
|
Weight |
1.15 kg |
Product Overview
Model: 330105-02-12-05-02-CN
Probe Type: 3300 XL 8mm Reverse Mount Probe
Unthreaded Length: 2mm
Probe Housing Length: 12mm
Total System Length: 0.5m (1.6ft)
Connector and Cable Type: Micro-coaxial Click Loc connector, standard cable
Linear Range: 2mm (80mils)
Sensitivity: 7.87V/mm (200mV/mil)
Frequency Response: 0-10kHz, with less than 1% attenuation from 0-1kHz and less than 5% attenuation at 10kHz
Operating Temperature: -51°C to +177°C (Probe)
Operating Media: Operates in a variety of media, including air, oil, and water
Maximum Probe Operating Pressure: 12MPa
Minimum Target Size: 50mm diameter (applicable to 8mm probes)
Product Features
Accurate Measurement: Bently Nevada 330105-02-12-05-02-CN based on eddy current principles, it precisely measures static displacement and dynamic vibration, providing reliable data for equipment health assessment.
Easy Installation: Bently Nevada 330105-02-12-05-02-CN with the standard 3/8 - 24 UNF thread design, coupled with a micro Click Loc coaxial connector, allows for simple and efficient installation.
Reliable connection: Bently Nevada 330105-02-12-05-02-CN use micro coaxial Click Loc connector provides a secure connection, effectively reducing problems such as looseness and poor contact during signal transmission, ensuring stable signal transmission.
Applications
Power Industry: Bently Nevada 330105-02-12-05-02-CN used in equipment such as steam turbines and generators to monitor radial vibration and axial displacement of shafts, ensuring stable operation of power equipment.
Petrochemical Industry: Bently Nevada 330105-02-12-05-02-CN is suitable for compressors, pumps, and other equipment, monitoring vibration in real time to promptly identify potential equipment failures.
Industrial Manufacturing: Bently Nevada 330105-02-12-05-02-CN can be installed on equipment such as motors and machine tools to monitor vibration, optimize operating parameters, and minimize the impact of equipment failures on production schedules.
Compatibility
Component Interchangeability: Electrically and physically compatible with all 3300 XL and non-XL 5 mm/8 mm probes, extension cables, and Proximitor sensors. For example:
Can be paired with a 3300 XL Proximitor sensor (such as the 330180 series).
Extension cables must match the total system length (e.g., a 1.0 m probe with a 4.0 m extension cable for a 5 m system).
