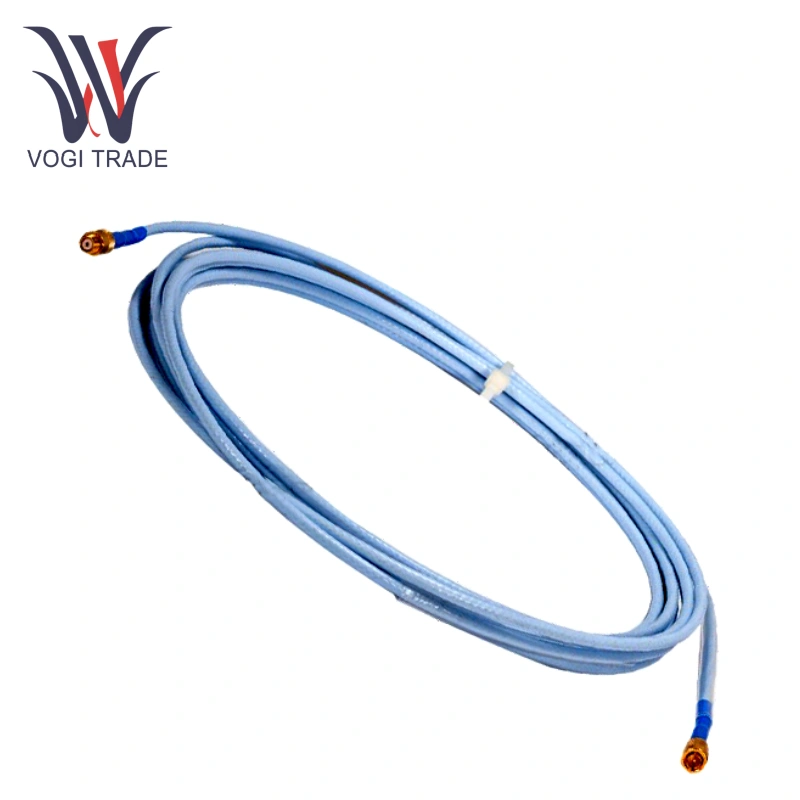

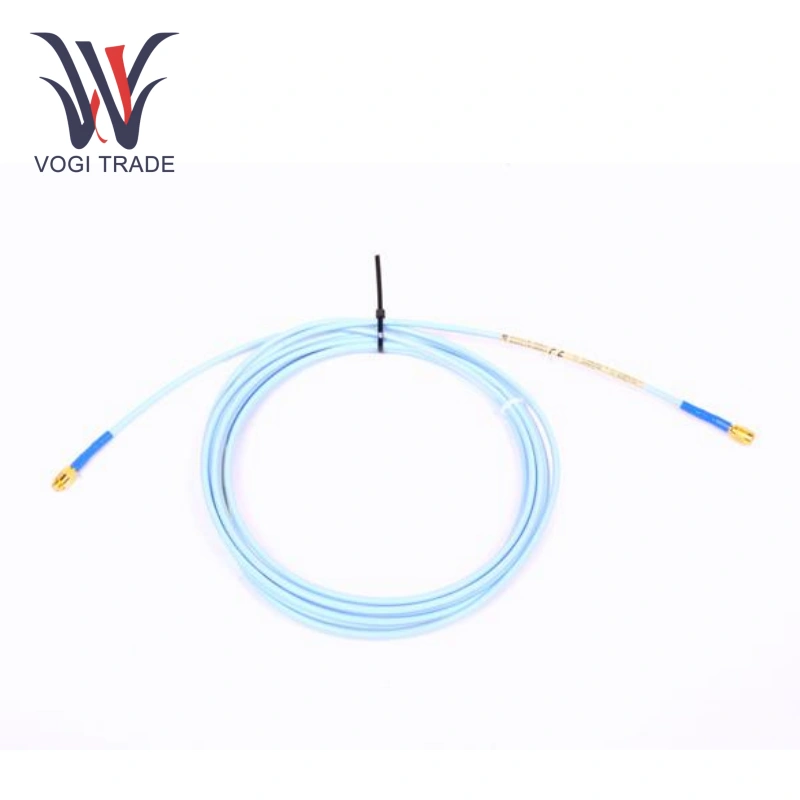

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330130-045-00-05 Extension Cable is designed for use with the 3300 XL 8mm Proximity Sensor System. It extends the signal transmission distance of the 3300 XL series probes. It features a 75Ω triaxial cable construction with an optimized center conductor resistance of typically 0.88Ω ± 0.13Ω.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-045-00-05 |
|
Ordering Number |
330130-045-00-05 |
|
Catalog |
3300 XL |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
18*18*8CM |
|
Packing Dimension |
21*21*10CM |
|
Weight |
0.8kg |
Performance Parameters
**045 (AAA Segment): Cable length 4.5 meters (14.8 feet).
**00 (BB Segment):
Cable type: Standard cable without armor.
Connector protection: No connector protector.
**05 (CC Segment):
Certification options: Includes CSA, ATEX, and IECEx Hazardous Area Approvals.
Mechanical and Installation
Minimum bend radius: 25.4 mm (1.0 in). Avoid excessive bending that could cause damage.
Connector Type:
Corrosion-resistant, gold-plated ClickLoc connector with finger-tight torque.
No special tools required for installation or removal.
Maximum connector torque: 0.565 N·m (5 in·lbf).
Environmental Compatibility
Temperature Range:
Operating/Storage Temperature: -52°C to +177°C (-62°F to +350°F).
Protection:
Connector protector not included (order 40180-02 separately or use silicone tape 03200006).
Silicone tape is not recommended for use in environments exposed to turbine oil.
Product Advantages
Bently Nevada 330130-045-00-05 with low-resistance center conductor and shielded design effectively reduce signal loss and interference.
Bently Nevada 330130-045-00-05 used patented CableLoc design increases tensile strength to prevent accidental cable disconnection, while the gold-plated ClickLoc connector is corrosion- and oxidation-resistant.
Bently Nevada 330130-045-00-05 have standard and extended temperature ranges accommodate a wide range of industrial environments, from low to high temperatures, and the tight minimum bend radius facilitates installation in complex spaces.
Application
Bently Nevada 330130-045-00-05 used in vibration monitoring systems for equipment like steam turbines and generators, this device is used to extend the sensor signal transmission distance.
Bently Nevada 330130-045-00-05 is suitable for condition monitoring of pumps, compressors, and other equipment in petrochemical plants.
Bently Nevada 330130-045-00-05 used in machining equipment like machine tools, this device is used to connect position and vibration monitoring sensors, helping to improve machining accuracy and provide real-time monitoring of equipment operating conditions.
Compatibility and System Integration
Compatible with Probes/Proximity:
Ensure that the probe length + extension cable length = the total proximity system length (5 m or 9 m).
For example, when using a 0.5 m probe, select a 4.5 m extension cable for a 5 m system.
Mixing Components Warning:
If mixed with non-XL series components (such as the older 3300 series), system performance will be degraded to non-XL specifications.
Certifications and Safety
Explosion-proof Certifications: Complies with CSA, ATEX, and IECEx standards for use in hazardous areas.
Installation Requirements:
Non-incentive circuit connections must be made according to drawing 140979 to meet Zone 2/Division 2 safety requirements.
