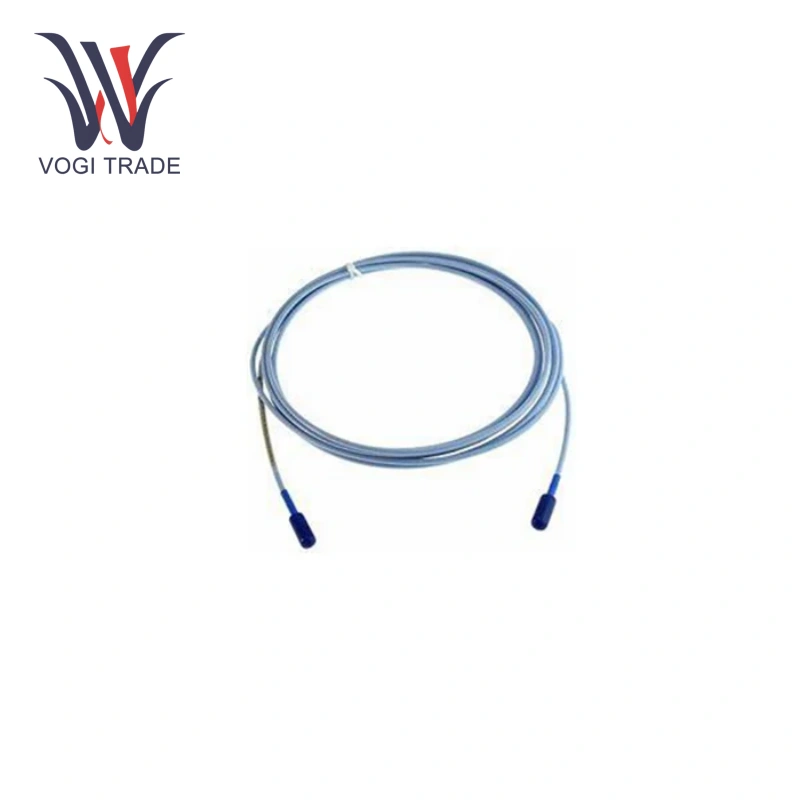

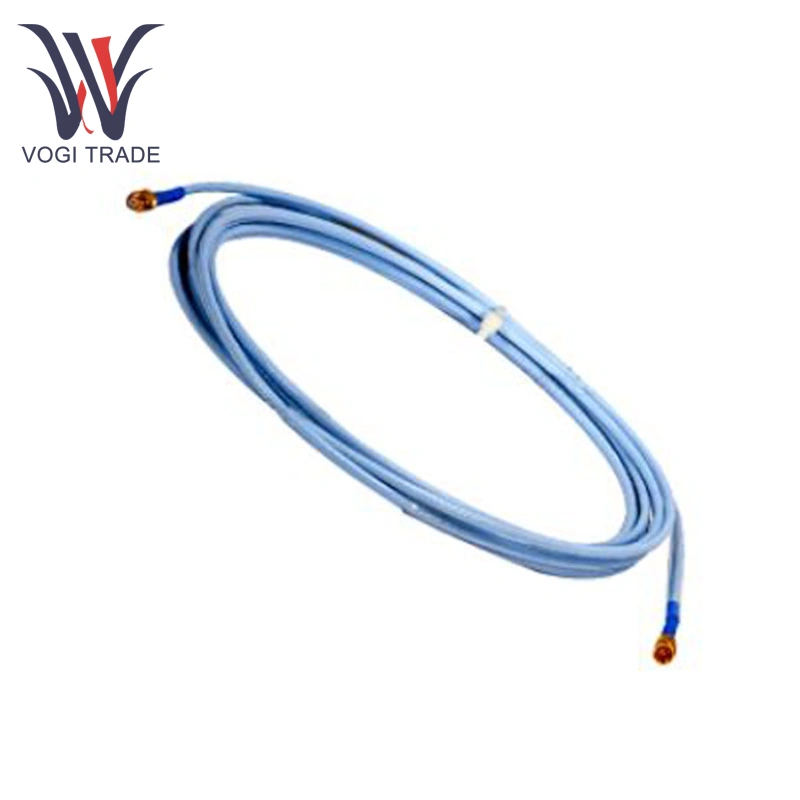

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330130-045-12-CN is a standard extension cable for industrial vibration monitoring systems. It is used to connect sensors to monitoring equipment to achieve stable signal transmission. This cable belongs to the 3300 XL series, is 4.5 meters (14.8 feet) long, and is equipped with Fluid Loc cable and connector protectors.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-045-12-CN |
|
Ordering Number |
330130-045-12-CN |
|
Catalog |
3300 XL |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
18*18*8CM |
|
Packing Dimension |
21*21*10CM |
|
Weight |
2.3kg |
Temperature Range:
Operating and Storage: -52°C to +177°C (-62°F to +350°F).
Note: Temperatures below -34°C (-30°F) may cause seal failure.
Humidity Effect: Average Scale Factor (ASF) change <3% at ≤93% relative humidity.
Product Advantages
Stable signal transmission: Bently Nevada 330130-045-12-CN have high-quality copper conductors and optimized impedance design, combined with excellent insulation performance, reduce signal transmission loss and external interference.
Durable: Bently Nevada 330130-045-12-CN made of high-quality materials, the outer sheath offers a high level of protection against industrial dust, moisture, and oil.
Application Areas
Power Industry: Bently Nevada 330130-045-12-CN used in vibration monitoring systems for large rotating equipment such as steam turbines and generators, this cable transmits signals from sensors installed in key locations on the equipment to monitoring equipment in a remote monitoring room.
Petrochemical Industry: Bently Nevada 330130-045-12-CN used in vibration monitoring of compressors, pumps, fans, and other equipment, it transmits sensor signals to explosion-proof monitoring equipment.
Manufacturing Industry: Bently Nevada 330130-045-12-CN used in various rotating machinery, such as motors, machine tools, and fans, are connected to the monitoring system by installing vibration sensors and using this extension cable.
Physical and Mechanical Specifications
Key physical characteristics of the 330130-045-12-CN are as follows:
Cable Length: 4.5 meters (14.8 feet), with a length tolerance of +20% and -0%.
Cable Type: 75Ω triaxial construction with fluoroethylene propylene (FEP) insulation. The FluidLoc option uses a special seal design to prevent liquid penetration.
Connector: Corrosion-resistant, gold-plated ClickLoc connectors with finger-tight torque for tool-free installation and removal. The BB=12 option includes a connector protector.
Jacketing Options: Standard cable (unarmored), but armored versions can be ordered (specify the BB option). The BB=12 cable shown here does not include armor.
Minimum Bend Radius: 25.4 mm (1.0 in) to prevent cable damage.
Weight: Approximately 34 g/m (0.4 oz/ft), total weight approximately 153 g (based on a 4.5-meter cable). Connector torque: Maximum 0.565 N·m (5 in·lbf). Finger-tightening recommended (the connector will "click" when tightened).
Related image: When describing a connector protector, Figure 18 shows an extension cable with a connector protector. The image is located adjacent to this description to comply with the rule:
