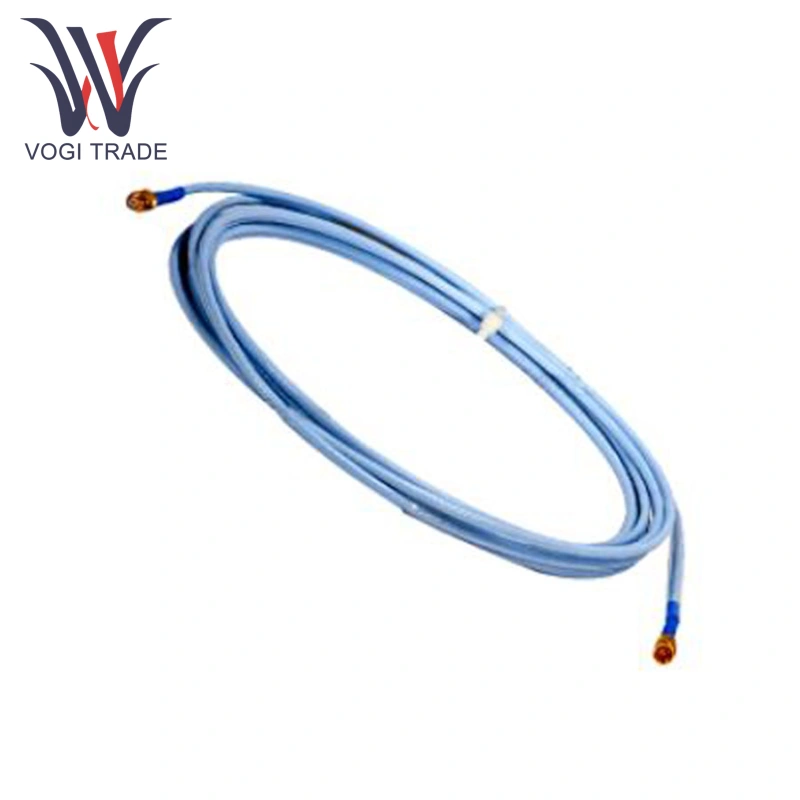

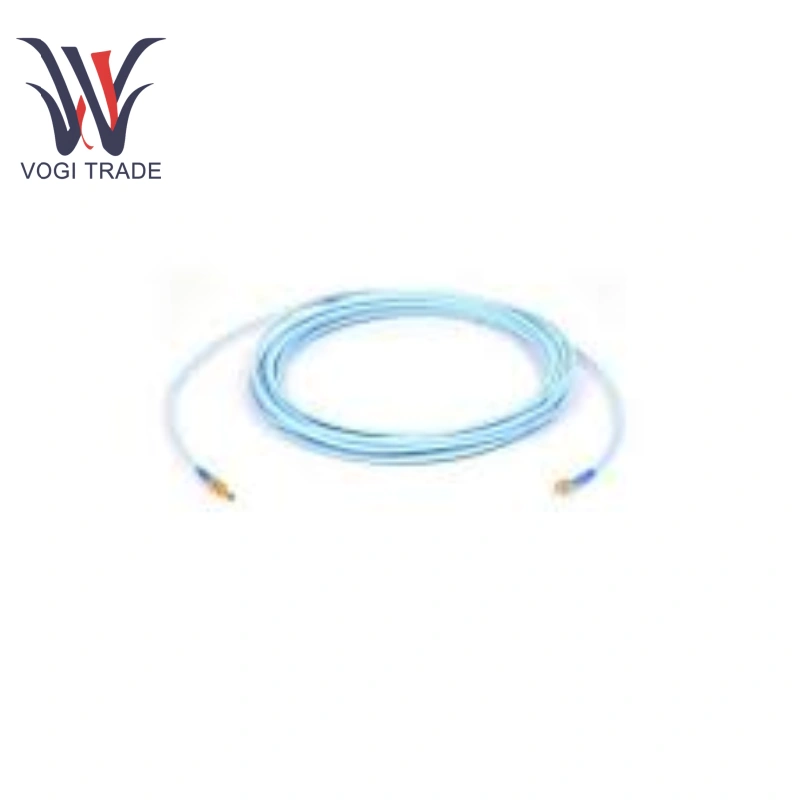

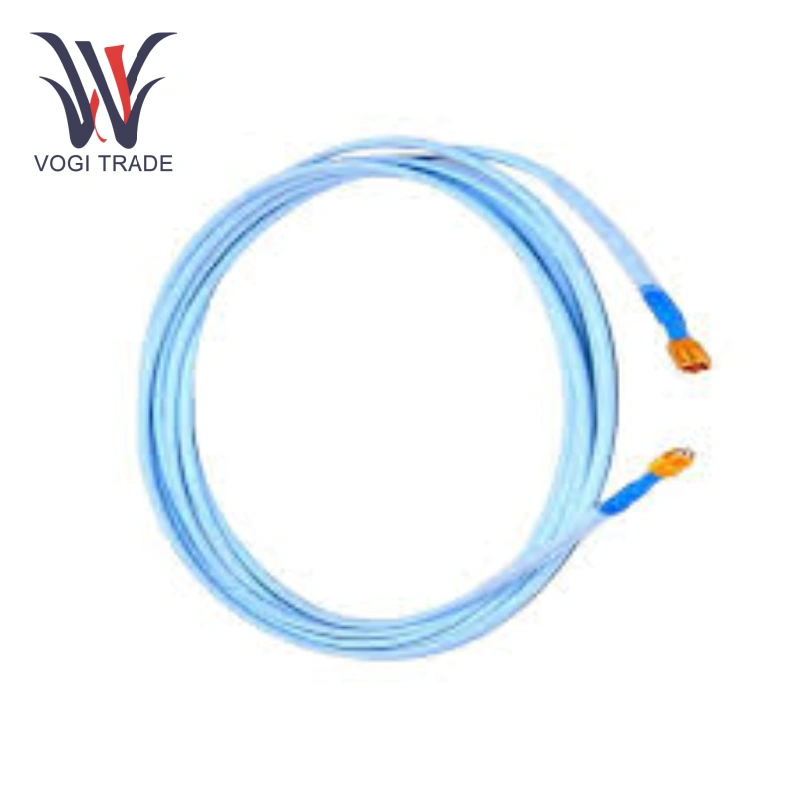

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330130 - 070 - 01 - 05 Extension Cable is used with the 3300 XL 8mm proximity sensor system to extend the signal transmission distance of the 3300 XL series probes. It uses 75Ω triaxial cable with a carefully designed center conductor resistance of typically 0.88Ω ± 0.13Ω at a length of 4 meters.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-070-01-05 |
|
Ordering Number |
330130-070-01-05 |
|
Catalog |
3300 XL |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
18*18*8CM |
|
Packing Dimension |
21*21*10CM |
|
Weight |
1.5 kg |
Cable Length: 7.0 m (23.0 ft).
Conductor Resistance: Typical center conductor resistance (RCORE) 0.88Ω ± 0.13Ω (4 m length).
Cable Construction: 75Ω triaxial cable with FEP insulation.
Tensile Strength: Withstands 330N (75 lbf) of pull force thanks to the patented CableLoc feature.
Connector Type: One end features a 3-socket plug with a fluorosilicone rubber boot for high protection; the other end features a terminal block for easy connection.
Operating Temperature Range: -52°C to +177°C
Minimum Bend Radius: 25.4mm.
Product Advantages
Bently Nevada 330130 - 070 - 01 - 05 with a low-resistance center conductor and shielded design reduce signal loss and interference.
Bently Nevada 330130 - 070 - 01 - 05 use the patented CableLoc design increases tensile strength to prevent disconnection. The plug with a fluorosilicone rubber protective sleeve and high-quality terminal blocks are corrosion- and oxidation-resistant, ensuring a long-term, stable connection.
Bently Nevada 330130 - 070 - 01 - 05 with standard and extended temperature ranges accommodate a wide range of industrial environments, from extremely cold to extremely high temperatures.
Application Areas
Power Industry: Bently Nevada 330130 - 070 - 01 - 05 used in vibration monitoring systems for equipment such as steam turbines and generators, extending the probe signal transmission distance and accurately monitoring equipment operating status.
Petrochemical Industry: Bently Nevada 330130 - 070 - 01 - 05 suitable for monitoring the status of pumps, compressors, fans, and other equipment in petrochemical plants. By extending the cable and installing the probe in the appropriate location, it accurately measures equipment vibration and position changes.
Industrial Manufacturing: Bently Nevada 330130 - 070 - 01 - 05 connecting position and vibration monitoring probes to machining equipment such as machine tools helps improve machining accuracy, monitor equipment operating status in real time, and promptly detect equipment anomalies.
Note
Installation Guidelines: Install strictly according to the product manual, ensuring that the plug is securely connected to the connector and terminal blocks. Avoid excessive pulling or bending the cable during installation to prevent damage to the internal conductors or shielding, which could affect signal transmission. Keep the plug and terminal blocks clean to prevent impurities from affecting connection performance.
