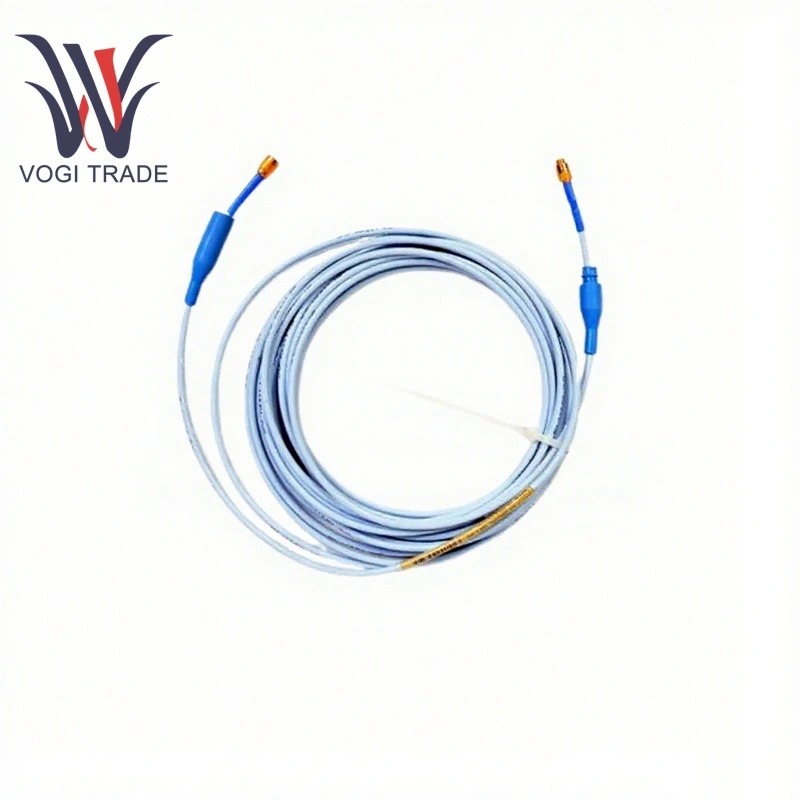

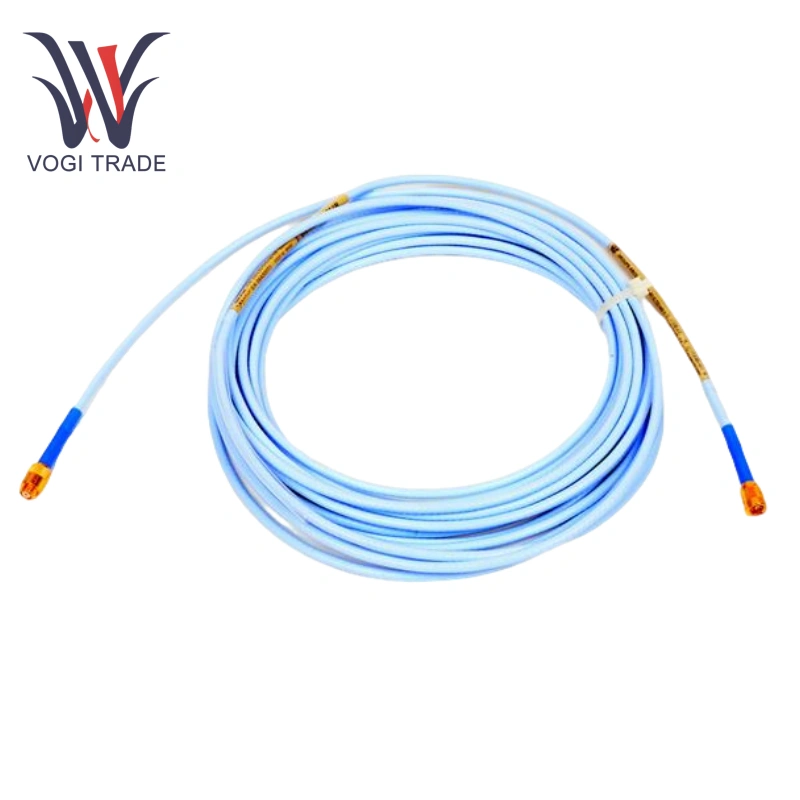

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330130-070-11-05 is a standard extension cable for the Bently Nevada 3300 XL Proximity Transducer System. Its primary function is to connect the probe to the Proximitor sensor, transmitting eddy current signals for vibration and position measurement.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-070-11-05 |
|
Ordering Number |
330130-070-11-05 |
|
Catalog |
3300 XL |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
18*18*8CM |
|
Packing Dimension |
21*21*10CM |
|
Weight |
1.5 kg |
Electrical Specifications
Cable Type: 75Ω triaxial cable with fluoroethylene propylene (FEP) insulation.
DC Resistance:
Center Conductor Resistance (RCORE): For a 7.0-meter length, the document table shows: "Length of Extension Cable (m) | RCORE" → "7.0 | 1.54 ± 0.23 Ω."
Outer Conductor Resistance (RJACKET): For a 7.0-meter length, the "RJACKET" value is "0.46 ± 0.09 Ω."
Capacitance: Typical value: 69.9 pF/m (21.3 pF/ft).
Operating and storage temperature: -52°C to +177°C with standard cable
Performance Specifications
Frequency Response: 0 to 10 kHz, +0, -3 dB (with 305-meter field wiring).
Interchangeability: Compatible with all 3300 XL 8 mm components, including probes and sensors.
Linear Range: The system's overall linear range is 2 mm (80 mils), starting at 0.25 mm (10 mils) from the target.
Product Advantages
Reliable signal transmission: Bently Nevada 330130-070-11-05 have high-quality conductors and excellent insulation design reduce signal transmission loss and mitigate the impact of external electromagnetic interference on the signal.
Strong environmental adaptability: Bently Nevada 330130-070-11-05 can operate stably in complex industrial environments such as high and low temperatures, dust, and humidity, reducing the impact of environmental factors on cable performance.
Easy installation: The Bently Nevada 330130-070-11-05 standard length is 7.0 meters and is equipped with an easy-to-use connector.
Application Areas
Power Industry: Bently Nevada 330130-070-11-05 sed in vibration monitoring systems for large rotating equipment such as steam turbines and generators, this system transmits signals from sensors installed in key locations on the equipment to monitoring equipment in a remote monitoring room.
Petrochemical Industry: Bently Nevada 330130-070-11-05 widely used in vibration monitoring of compressors, pumps, fans, and other equipment, it can transmit sensor signals to explosion-proof monitoring equipment.
Note
Installation should follow documented guidelines to avoid performance degradation or damage:
Bend Radius: Minimum 25.4 mm (1.0 in).
Connector Installation: Use ClickLoc connectors, which require only finger tightening.
Field Wiring: Recommended 3-conductor shielded cable, maximum length 305 m.
