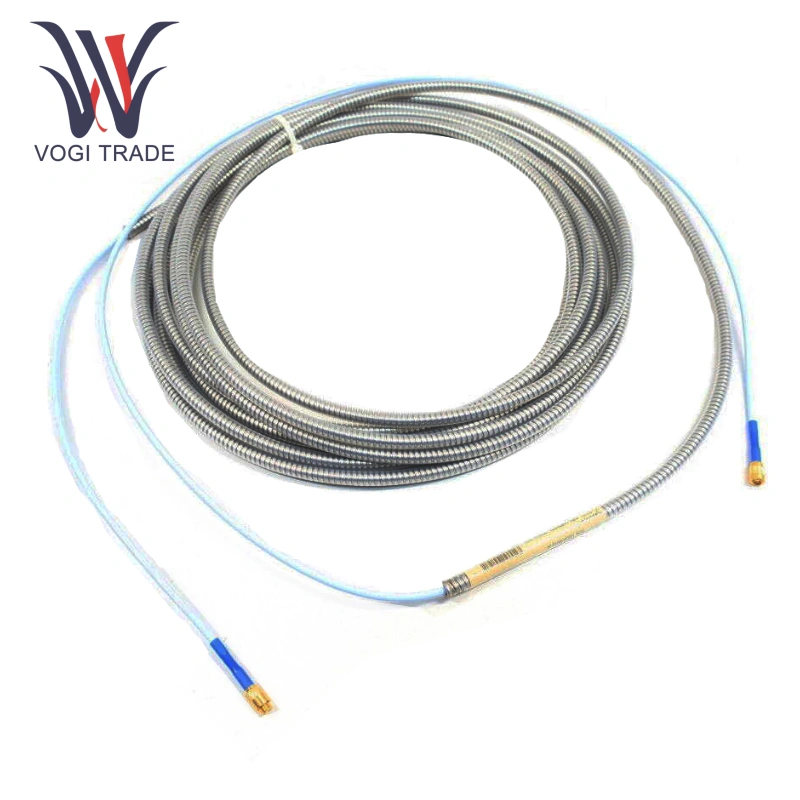

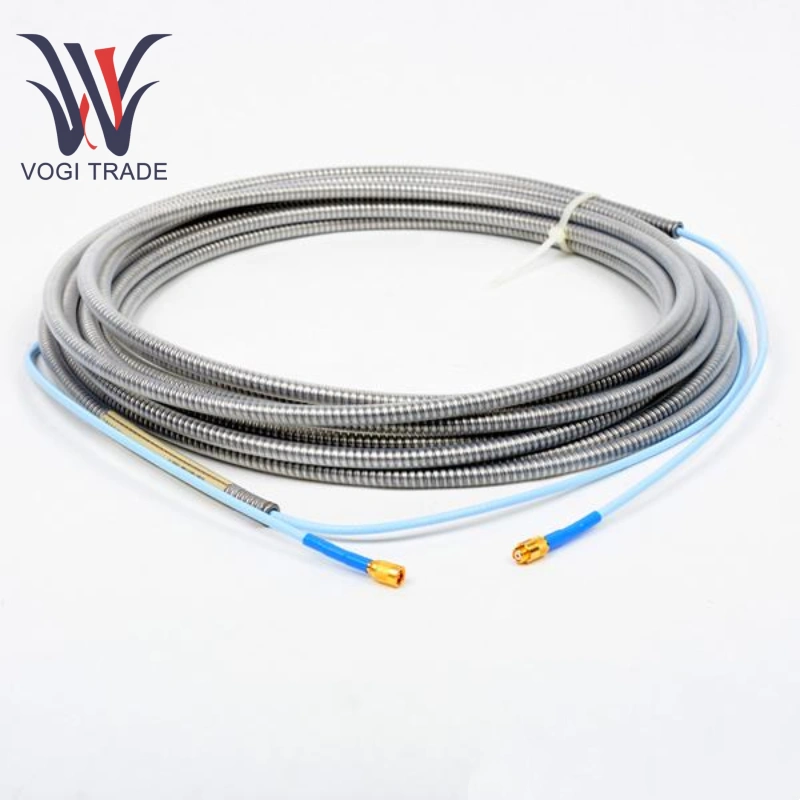

Bently Nevada 330130-080-01-05

Product Overview

Performance Parameters

Cable Type: Armored Extension Cable (for 3300 XL Systems)

Length: 8.0 m (26.2 ft)

Insulation: 75Ω triaxial FEP insulation

Protection: Metal armor + standard connector protector

Capacitance: 69.9 pf/m (21.3 pf/ft) typical

Operating Temperature Range: -51°C to +177°C

Weight: Approximately 0.3 kg (net weight per cable, including armor)

Shipping Weight: 2 kg (including packaging)

Compatibility: Compatible only with 3300 XL series probes and proximitor sensors

Product Features

Double protection and durability: Bently Nevada 330130-080-01-05 with the metal armor layer resists mechanical damage such as extrusion and abrasion, while the FEP insulation and connector protector resist corrosion, dust, and moisture.

Stable signal transmission: Bently Nevada 330130-080-01-05 with 75Ω triaxial structure effectively shields electromagnetic interference, ensuring minimal signal attenuation and distortion within a distance of 8 meters.

Effective installation adaptability: Bently Nevada 330130-080-01-05 designed specifically for the 3300 XL system, it's plug-and-play, requiring no additional commissioning. The armored structure supports complex industrial wiring and meets the needs of long-distance device connections.

Applications

Heavy Machinery Monitoring:  Bently Nevada 330130-080-01-05 used for large rotating equipment such as steam turbines and compressors, connecting vibration probes and preamplifiers to ensure signal transmission in the complex wiring environments of equipment rooms.

Industrial Workshop Scenario:  Bently Nevada 330130-080-01-05 is suitable for condition monitoring systems for equipment such as motors and pumps. The armored layer protects against mechanical impacts and dust intrusion, ensuring stable transmission of vibration and displacement signals.

Harsh Environment Applications:  Bently Nevada 330130-080-01-05 used in high-temperature, dusty environments such as the petrochemical and power industries, replacing conventional extension cables to prevent signal interruption or cable damage caused by environmental factors.

Installation Requirements

Cable Management: A minimum bend radius of 25.4 mm must be observed to avoid cable damage. Failure to comply may result in performance degradation or interchangeability issues.

Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG) field wiring is supported, with a maximum length of 305 meters (1000 feet). Three-conductor shielded cable with tinned wiring is recommended to reduce interference.
