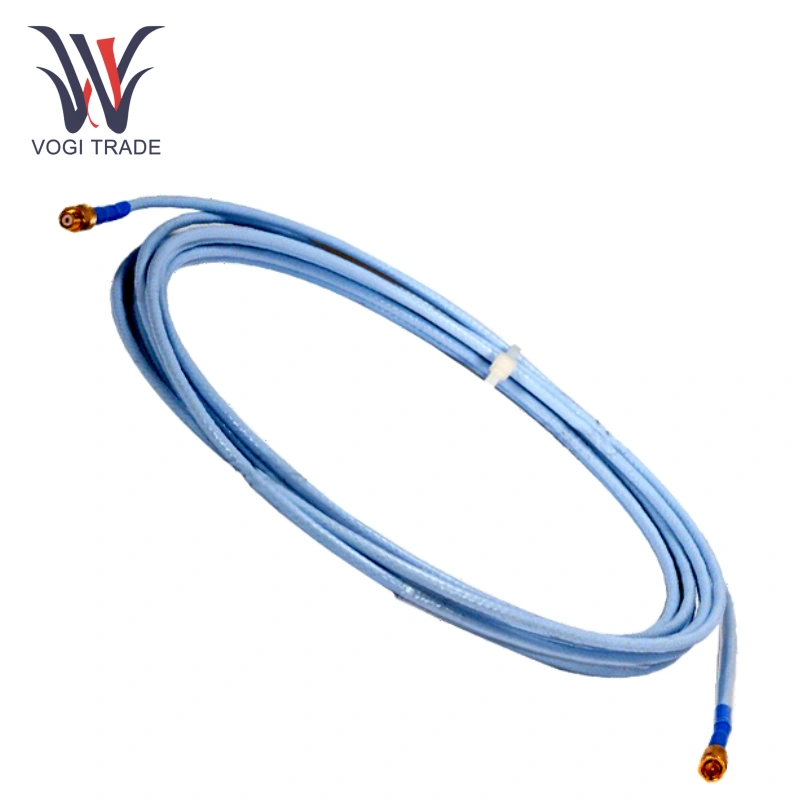

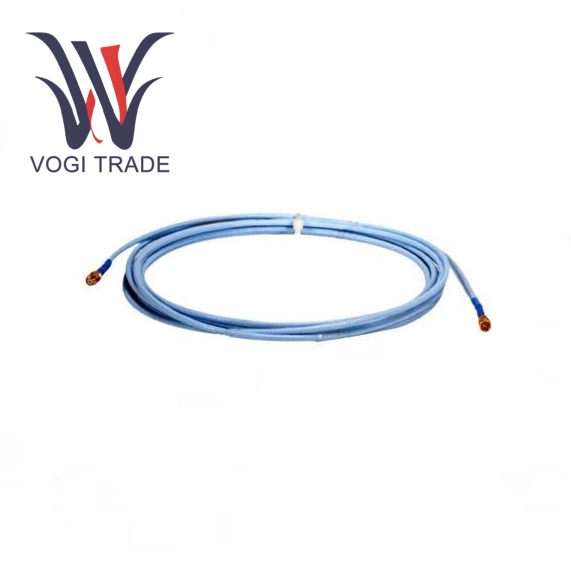

Brand: Bently Nevada Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330130-085-03-05 is an industrial-grade vibration monitoring sensor. Its core function is to convert the vibration velocity signal of rotating machinery (such as turbines, compressors, and fans) into a standard voltage output for real-time equipment vibration data collection.
|
Manufacture |
Bently Nevada |
|
Model Number |
330130-085-03-05 |
|
Ordering Number |
330130-085-03-05 |
|
Catalog |
3300 XL |
|
Country Of Origin |
America |
|
HS CODE |
8537101190 |
|
Dimension |
18*18*8CM |
|
Packing Dimension |
21*21*10CM |
|
Weight |
0.8kg |
Performance Parameters
Measurement Type: Vibration Velocity (RMS)
Measurement Range: 0-10 mm/s (±5% FS)
Frequency Response: 10-1000 Hz (±3 dB)
Output Signal: 0-5 V DC (linear, zero-based)
Accuracy: ±0.5% FS (at 25°C, calibrated)
Supply Voltage: 12-28 V DC (nominal 24V DC)
Operating Temperature: -40°C to +120°C (-40°F to +248°F)
Protection Rating: IP67 (NEMA 6P, dust-tight & waterproof)
Cable Entry: M20×1.5 threaded (with stainless steel gland)
Mounting: Magnetic base (≥10kg pull-off force) or 1/4"-20 UNC stud mount
EMC Compliance: EN 61000-4-2/3/4/5/6/8/9 (immune to EMI/RFI)
Long-term Stability: ≤±0.1% FS/year (under stable conditions)
Calibration: Factory pre-calibrated (ISO 17025 traceable)
Product Features
Frequency Response and High Resolution: Bently Nevada 330130-085-03-05 have 10-1000Hz frequency coverage captures the full-band vibration characteristics of rotating machinery, from low-speed bearing friction to high-speed rotor imbalance. 0.5% full-scale accuracy ensures that even the smallest vibration changes are captured.
Strong Environmental Tolerance: Bently Nevada 330130-085-03-05 used stainless steel housing and IP67 protection design allow for direct installation in humid, dusty, or salt-spray environments without the need for additional protective covers.
Optimized Anti-Interference: Bently Nevada 330130-085-03-05 integrated twisted-pair shielded wiring and low-pass filtering suppress high-frequency noise generated by devices such as frequency converters and inverters, achieving an output signal-to-noise ratio of >80dB.
Applications
Bently Nevada 330130-085-03-05 is widely used in key rotating equipment in the fields of electric power, petrochemicals, metallurgy and renewable energy (such as wind power). By monitoring the vibration amplitude and frequency characteristics, early fault diagnosis of equipment can be achieved.
International Project Application Examples
European Offshore Wind Power: The 330130-085-03-05 sensor is used to monitor gearbox high-speed shaft vibration in Vestas' V164-10.0MW offshore wind turbine. Its IP67 protection and wide operating temperature range of -40°C to +120°C ensure stable operation in high salt spray and wide temperature fluctuations at sea, accumulating over 40,000 hours of trouble-free operation.
