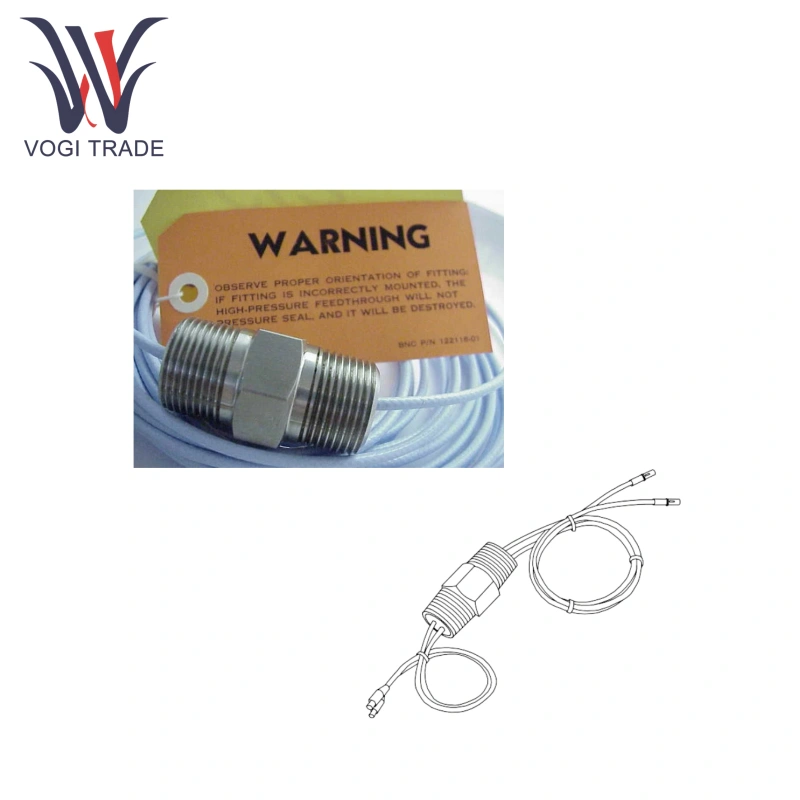

Brand: Bently Nevada Description: Single Triaxial HP Feedthrough Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330161-04-85-11-94-01-02 is a single, three-axis, high-voltage feedthrough device for rotating machinery condition monitoring and is a key component of the 3300 XL monitoring system. It is primarily used to reliably transmit and isolate three-axis eddy-current sensor signals in high-voltage, complex electromagnetic environments.
|
Manufacture |
Bently Nevada |
|
Model Number |
330161-04-85-11-94-01-02 |
|
Ordering Number |
330161-04-85-11-94-01-02 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
0.9kg |
Compatible Sensors: Compatible with Bently Nevada 3300 XL series tri-axis eddy-current sensors.
Transmission Channels: Three independent channels for signal transmission in the X, Y, and Z axes.
Operating temperature range: -26°C to 121°C (-15°F to 250°F), determined by O-ring option (DD=94). Temperature range depends on O-ring material.
Maximum pressure rating: 2.76 MPa (400 psi).
Humidity limit: 100% non-condensing.
Minimum bend radius: 25.4 mm (1.00 in).
Material: Fittings are 303 stainless steel.
Product Features
Bently Nevada 330161-04-85-11-94-01-02 utilizing advanced electromagnetic shielding technology and insulation design, it effectively resists strong electromagnetic interference and high-voltage environments found in industrial environments.
Bently Nevada 330161-04-85-11-94-01-02 have three independent channels simultaneously and accurately transmit signals along three axes, ensuring comprehensive monitoring of complex vibration and displacement conditions in equipment.
Bently Nevada 330161-04-85-11-94-01-02 capable of withstanding high-pressure environments, it is suitable for monitoring high-pressure equipment such as steam turbine high-pressure cylinders and high-pressure compressors, ensuring the proper operation of the monitoring system under high-pressure conditions.
Applications
Bently Nevada 330161-04-85-11-94-01-02 can be used to monitor shaft vibration and axial displacement in equipment such as steam turbines and generators.
Bently Nevada 330161-04-85-11-94-01-02 is suitable for monitoring systems for key equipment such as centrifugal compressors and high-pressure pumps, enabling real-time status monitoring of equipment under high-pressure and complex operating conditions.

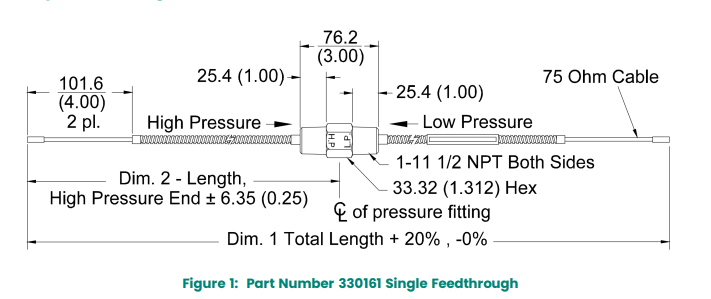

Graphs and Figures
Installation and Compatibility
The high-pressure side (internal to the machine) typically features a female connector (EE=01), while the low-pressure side (external) features a male connector (FF=02) to accommodate standard probes and Proximitor sensors.
The optional O-ring (DD=94) is designed for oil and gas environments, ensuring a reliable seal when exposed to natural gas or turbine oil.
