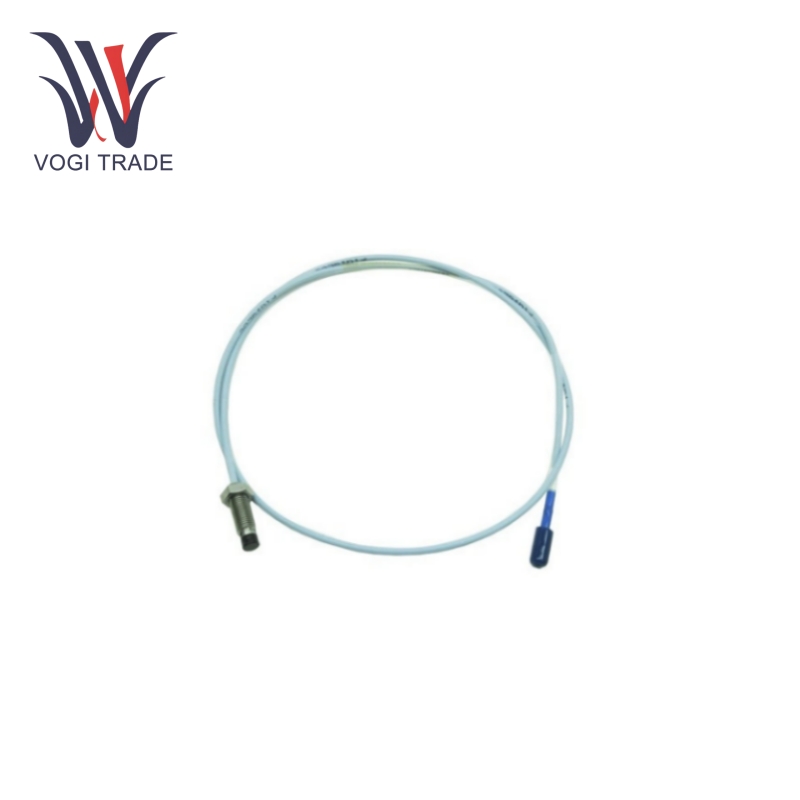

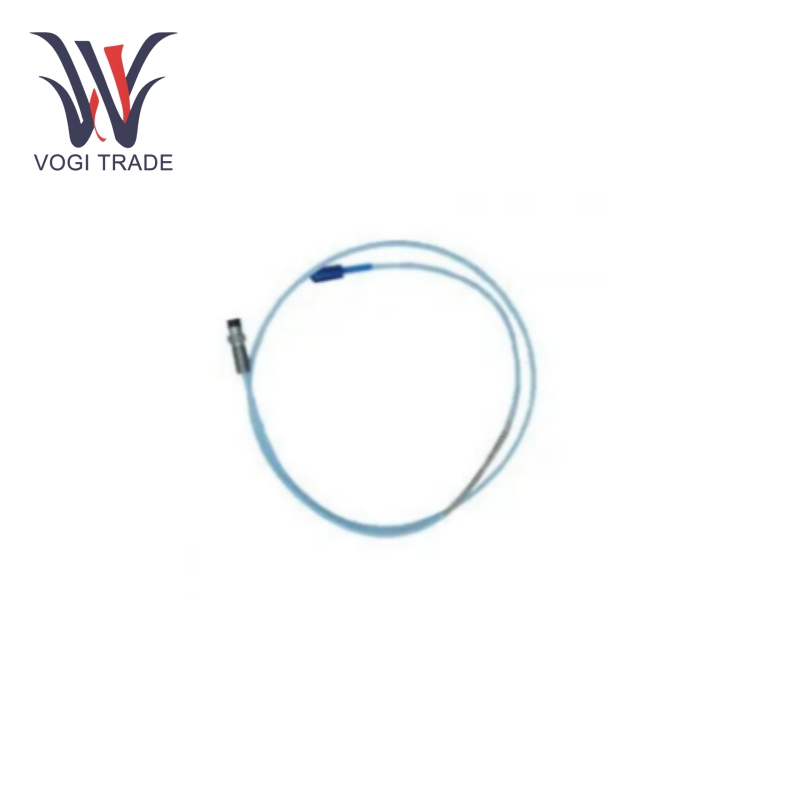

Bently Nevada 330171-10-24-05-02-00

1. Specification

The output characteristics of the signal: when operated in combination with the 3300 XL proximity sensor and the XL extension cables, it emits a voltage proportional to the distance from the probe tip to the conductive surface being monitored, both static and dynamic data providing measurements on vibration and position, respectively.

Measurement range-wild: When installed in combination with 3300 XL proximity sensors and XL extension cables, the Bently Nevada 330171-10-24-05-02-00 is capable of measuring the proximity of its probe tip with respect to an adjacent conductive surface, and therefore this device could impart physical quantities of vibration, position, and so forth.

2. Feature

The characteristics of signals and function of observations: If the Bently Nevada 330171-10-24-05-02-00 and the 3300 XL proximity sensor, together with the XL extension cable, are used, the output of the system is a constant voltage tailored to the distance of the probe tip above the measured conductive surface whereby static (position) and dynamic (vibration) data can be simultaneously measured for a more comprehensive status monitoring of the firm.

The advantages of probe design include: the patented 5 mm probe has a tip positioning molding technique wherein there is a secure connection between the tip of the probe and its body, thereby increasing its durability and reliability by enabling it to cope with even more complex and harsher working conditions.

Wiring options: The system can be equipped with possibly fluid leakage-proof tubing options such as Fluid Loc cable that can effectively deal with oil and other liquids leaking from the machine through the cable and increases safety and reliability by having less probability of equipment failure due to liquid leakages during operation.

Features of the connector: The 3300 5mm probe and the extension cables of 3300 XL come with corrosion-resistant, gold-plated brass Click Loc connectors. They are tightened by gripping and need not be specially mounted in a fixed or particular manner but rather pushed and clicked on. The specially-designed locking mechanism provides a nervous function that prevents the other connector from becoming loose. On the other hand, this happens to be fast and easy because no special dealing tools are required for installation or for dismantling. Further, the protector connector could either come pre-installed by clients or else come separately for installation on-site. Protectors are to be recommended in every installation for the sake of environmental protection of the connector itself.

3. Application

Powers

Monitoring large rotating machinery in power generation plants: Bently Nevada 330171-10-24-05-02-00 is used most often to monitor shaft vibration and displacement and various other characteristics of large rotating machinery such as generators turbines in thermal electricity generation. Real-time monitoring of these key parameters enables staff to identify abnormal equipment vibration and displacement changes quickly, forewarn of potential faults, avert shutdown accidents due to equipment failures and ensure safe and stable operation for the generator set. For example, after equipping a monitoring system, a large thermal power plant successfully detected an abnormal upward trend of the vibration of a turbine shaft. Timely maintenance revealed excessive bearing wear, thereby preventing a major failure that could have shut down the unit for several days and cut back on huge economic damages.

Substation high-voltage equipment monitoring: In substations, Bently Nevada 330171-10-24-05-02-00 may be applied to monitor the vibration of high-voltage equipment such as transformers. While operating, transformers undergo vibration due to electromagnetic force, mechanical stress, and so forth. Such vibration monitoring indirectly reflects the internal operation status of the transformer, for example, looseness of winding and core displacement. Prompt steps may be taken whenever an abnormal vibration is detected to prevent a further fault expansion and ensure reliable power supply from the substations.

Petrochemical Industry

Refineries Equipment Key Monitoring: Compressors, pumps, and other facilities in refineries are key facilities in the production process. The Bently Nevada 330171-10-24-05-02-00 offers a precision measure of both position and vibration for this equipment. Take the main fan in the catalytic cracking unit; vibration monitoring enables discovering issues like blade imbalance and bearing damage in time, thereby keeping the fan stable in operation, thus maintaining continuity of the entire refining process. An abnormal vibration in a main fan once interrupted production in a refinery, inflicting huge economic losses. After fitting a monitoring system, similar failures were effectively averted.

Monitoring of pipeline systems in petrochemical plants: The pipeline system in petrochemical plants is complex and widespread, and vibrations on the pipelines can lead to safety hazards; for instance, weld cracking or leaks. Bently Nevada 330171-10-24-05-02-00 may stand to monitor the vibration of pipelines, enabling prompt detection of abnormal pipeline vibrations upon which pipeline maintenance and repair decisions would be anchored to guarantee safe production generally in petrochemical plants.
