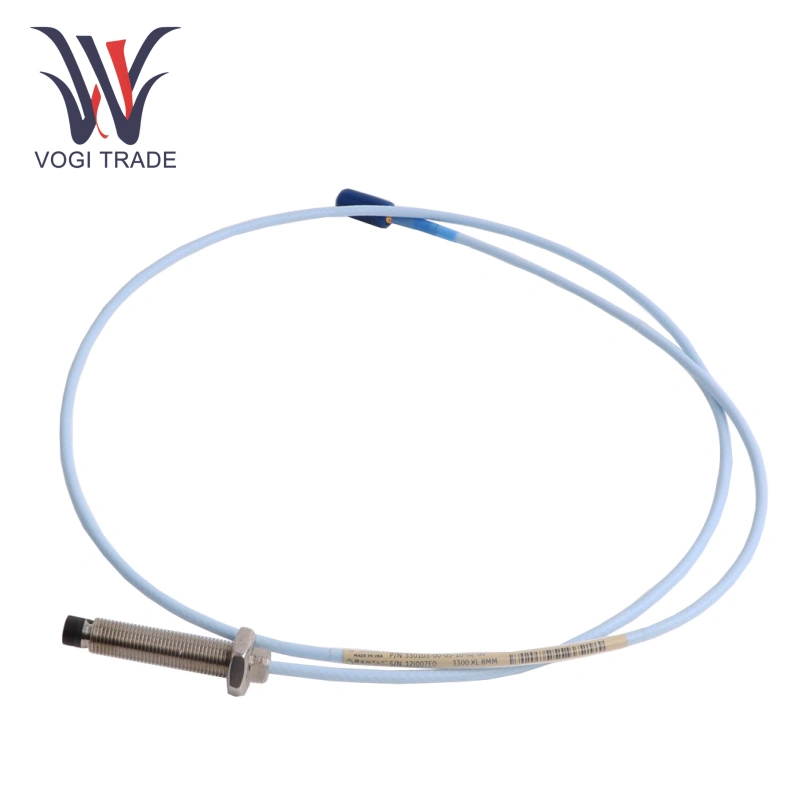

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330173-00-02-20-02-CN is a 3300 XL NSv Series 5mm proximity probe designed for high-precision, non-contact measurement of shaft displacement, vibration, and other parameters on rotating machinery.
|
Manufacture |
Bently Nevada |
|
Model Number |
330173-00-02-20-02-CN |
|
Ordering Number |
330173-00-02-20-02-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
1.0 kg |
Product Overview
The 330173 is the base model of the 3300 5mm Proximity Probe. This unarmored version has a metric thread (M8×1) and is suitable for installation in confined spaces (e.g., with thrust bearing clearance).
Part Number Structure: 330173-AA-BB-CC-DD-EE
AA (Unthreaded Section Length): 00 → 0 mm
BB (Total Housing Length): 02 → 20 mm
CC (Total Cable Length): 20 → 2.0 m
DD (Connector Option): 02 → Standard Cable + ClickLoc Connector (without Connector Boot)
EE (Certification Option): CN → Specific certification required
Mechanical Characteristics
Thread Size: M8×1 Metric Thread
Housing Material: AISI 303/304 Stainless Steel
Probe Tip: Polyphenylene Sulfide (PPS) Injection Molded
Cable: 75Ω Coaxial, Fluorinated Ethylene Propylene (FEP) Insulated, ≤3.7mm Diameter
Tensile Strength: 222 N (50 lbf) between probe housing and leads
Minimum Bend Radius: 25.4 mm (1.0 in)
Product Features
High-Precision Measurement: Bently Nevada 330173-00-02-20-02-CN with a high sensitivity of 200mV/mil combined with a 60-mil linear range accurately captures minute shaft displacements and vibrations.
Flexible Installation: Bently Nevada 330173-00-02-20-02-CN with threadless design allows for flexible installation in locations with specific space constraints or installation requirements.
High Durability: Bently Nevada 330173-00-02-20-02-CN used PPS probe tip and stainless steel housing provide excellent wear and corrosion resistance, ensuring long-term stable operation in harsh environments such as high temperature, high humidity, and high dust levels.
Applications
Petrochemical: Bently Nevada 330173-00-02-20-02-CN uesd for monitor shaft vibration and displacement on centrifugal air compressors, refrigeration compressors, process gas compressors, and other equipment.
Power Industry: Bently Nevada 330173-00-02-20-02-CN uesd for monitor shaft systems on equipment such as steam turbines and generators to promptly detect shaft anomalies such as shaft bending, misalignment, and bearing wear.
Compatibility and Certifications
Required Components: Requires the 3300 XL Proximity Sensor and XL Extension Cable.
Safety Certifications:
Basic Certifications: CE, FCC, RoHS
Hazardous Areas: ATEX/IECEx Compatible
Note: When not using the connector boot, avoid exposure to turbine oil.
