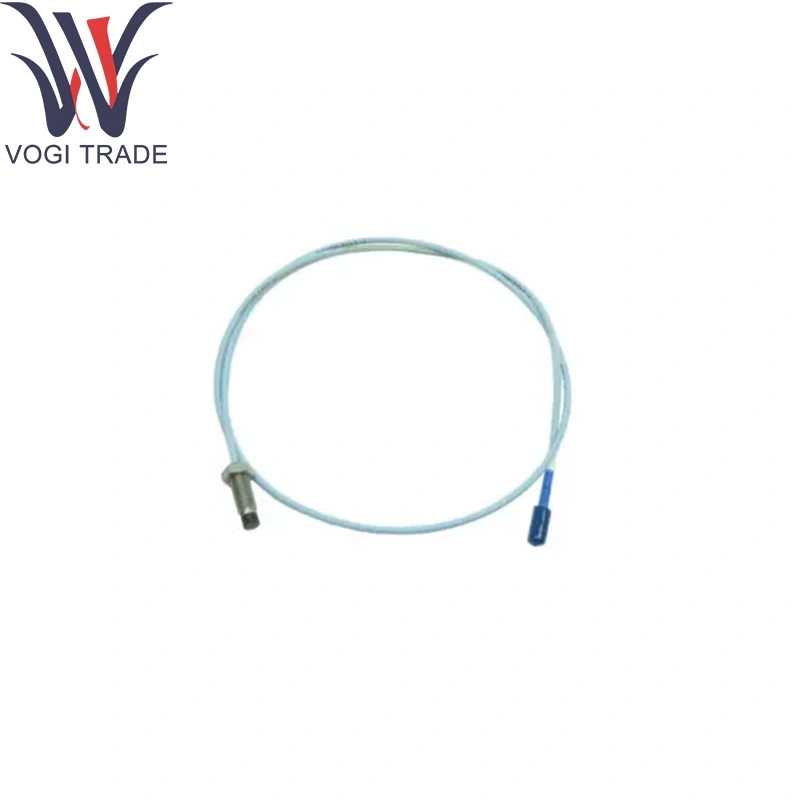

Brand: Bently Nevada Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330194-13-20-10-00 Designed for non-contact shaft-displacement and vibration monitoring in elevated-temperature environments up to 200 °C.
|
Manufacture |
Bently Nevada |
|
Model Number |
330194-13-20-10-00 |
|
Ordering Number |
330194-13-20-10-00 |
|
Catalog |
3300 XL |
|
Description |
Extended Temperature Range Proximity Probes |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
2 M |
|
Weight |
0.22 kg |
Ordering Information
3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes, Metric
330193 3300 XL 8 mm Probe, M10 x 1 thread, without armor
330194 3300 XL 8 mm Probe, M10 x 1 thread, with armor
Part Number-AA-BB-CC-DD
A: Unthreaded Length Option
Order in increments of 10 mm
Length configurations:
Maximum unthreaded length: 230 mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm
B: Overall Case Length Option
Order in increments of 10 mm
Metric thread configurations: Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
Technical Parameters
Linear Range: 2 mm (80 mils) full-scale for Bently Nevada 330194-13-20-10-00
Sensitivity: 200 mV/mil (7.87 mV/µm) ± 5 % at –23 V DC excitation
Output Span: –2 V to –18 V DC over linear range
Linearity: ± 1 % of full-scale
Frequency Response: DC to 10 kHz (–3 dB)
Operating Temperature:
Probe head: –35 °C to +200 °C in Bently Nevada 330194-13-20-10-00
Cable: –55 °C to +200 °C
Environmental Seal: IP65 when mated to connector
Pressure Rating: Suitable for pressurized applications with bulkhead/thermowell
Cable Construction: PTFE jacket with ≥ 95 % braided tinned-copper shield and drain wire
Product function
Bently Nevada 330194-13-20-10-00 converts variations in the air-gap between probe tip and rotating shaft into an AC voltage proportional to displacement. The extended-temperature design (ceramic-reinforced PEEK body, PTFE cable) ensures reliable signal transmission via Bently Nevada 330194-13-20-10-00 in ≤ 200 °C environments for Proximitor® conditioning and monitoring.
Application Areas
High-Temperature Turbine Sections: Shaft-position surveillance with Bently Nevada 330194-13-20-10-00 in hot-end bearings
Combustion & Exhaust Monitoring: Dynamic sensing in exhaust regions using Bently Nevada 330194-13-20-10-00
Industrial Furnaces & Kilns: Vibration analysis near high-heat zones
Petrochemical Skids: Embedded probes in equipment featuring Bently Nevada 330194-13-20-10-00
Offshore & Marine Machinery Rooms: Robust performance in heat-intense environments
