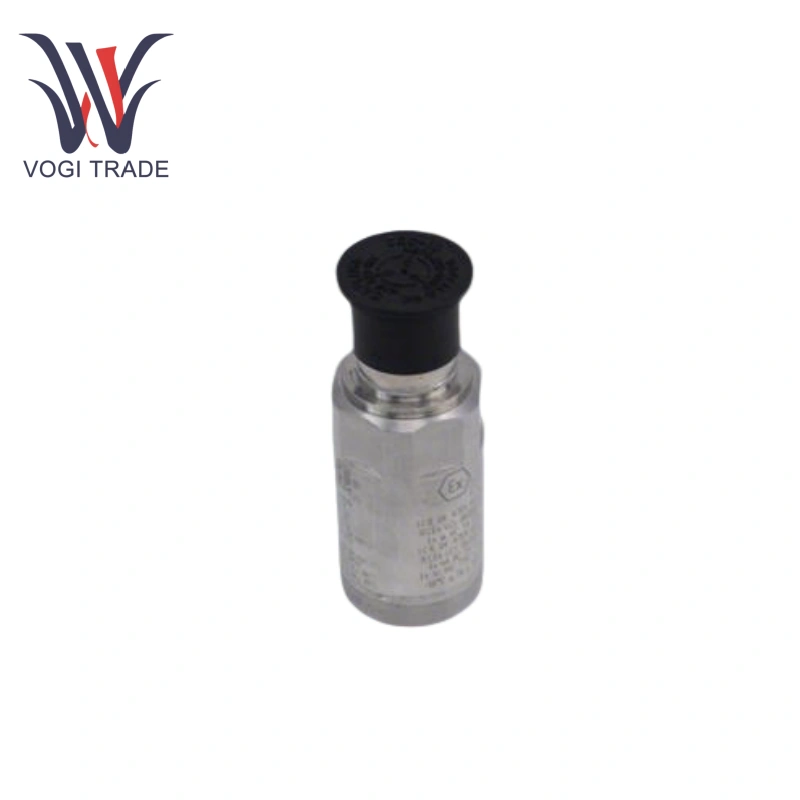

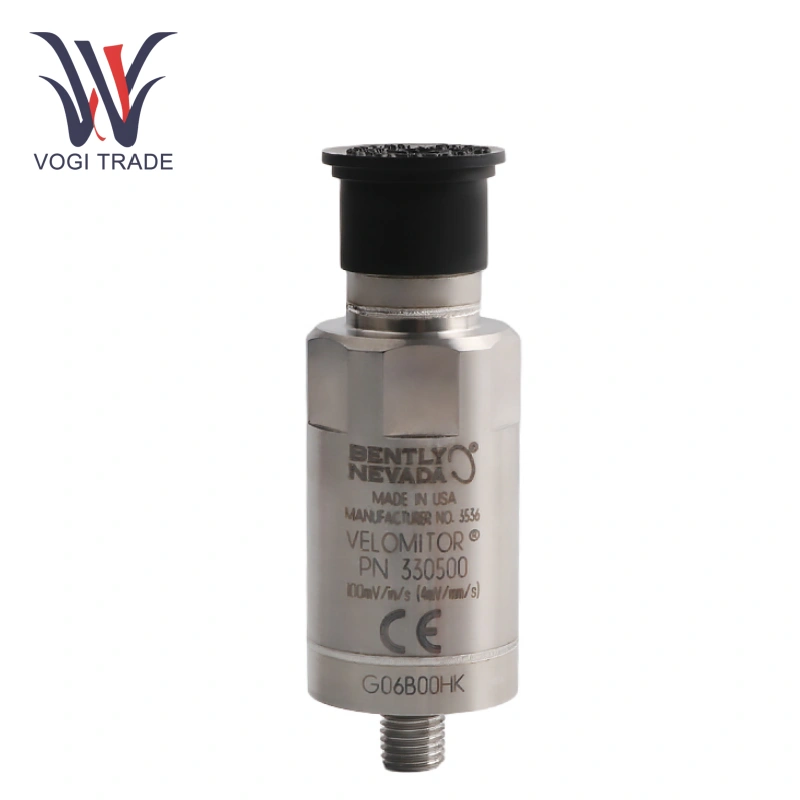

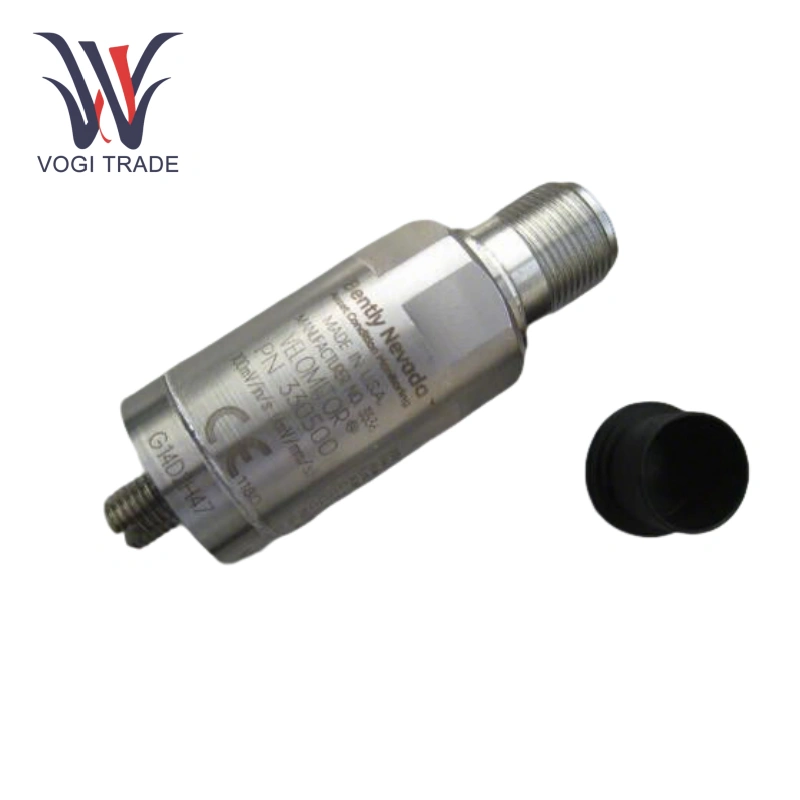

Brand: Bently Nevada Description: Velomitor Piezo-velocity Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330500-01-00 Velomitor piezoelectric velocity sensor measures absolute vibration of bearing housings, housings, or structures. It is a rugged, 2-pin, integrated piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design and can be mounted vertically, horizontally, or at any angle.
|
Manufacture |
Bently Nevada |
|
Model Number |
330500-01-00 |
|
Ordering Number |
330500-01-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
0.6kg |
Product Overview
**01: Threaded Adapter Option
Adopts a 1/2-20 UNF** threaded interface for standard industrial installations.
**00: Certification Option**
No special explosion-proof certification required (basic model).
Frequency response: 4.5 Hz – 5 kHz (±3.0 dB)
Velocity range: 1270 mm/s (peak)
Linearity: ±2% (≤ 152 mm/s peak)
Transverse sensitivity: <5%
Operating temperature: -55°C to 121°C
Shock resistance: 5000 g
Weight: 142 g (316L stainless steel housing)
Product Features
Bently Nevada 330500-01-00 have high sensitivity combined with excellent frequency response and amplitude linearity enables precise measurement of equipment vibration velocity.
Bently Nevada 330500-01-00 dob’t have moving parts reduce mechanical wear, and the 316L stainless steel housing is shock- and corrosion-resistant, ensuring long-term stable operation in harsh industrial environments.
Applications
Bently Nevada 330500-01-00 can used for vibration velocity monitoring is used to monitor the condition and perform preventive maintenance on various rotating machinery, such as motors, fans, and pumps.
Bently Nevada 330500-01-00 can used for vibration monitoring of equipment such as wind turbines and gas turbines.
Bently Nevada 330500-01-00 can used for vibration monitoring of equipment such as rolling mills and blast furnace fans.

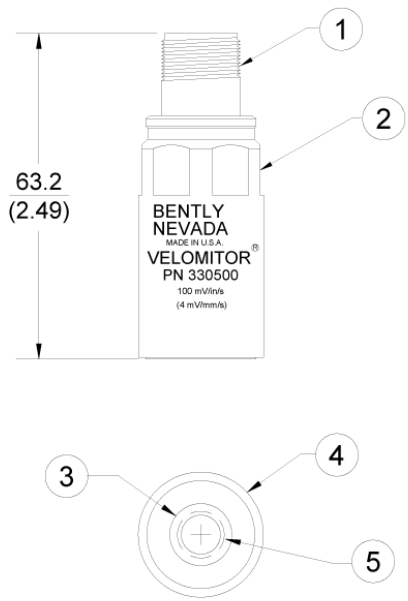

Physical Dimensions and Connectors
Diameter: 25.3 mm (0.995 in)
Height: 63.2 mm (2.49 in)
Connector: 2-pin Mil-C-5015 sealed connector (316L stainless steel)
Installation and Usage Notes
Mounting Location
Must be secured to the bearing housing, housing, or structure to avoid signal distortion due to improper installation.
Torque Requirement: 32-46 kg·cm (24-40 in-lb).
Polarity Definition: When the sensor moves toward the connector, pin A is positive relative to pin B.
Displacement Measurement Warning
If the output signal is integrated to measure displacement, circuit noise may be amplified, resulting in inaccurate data.
Environmental Adaptability
Fully sealed design (IP68 equivalent), resistant to 100% humidity (non-submerged).
Base strain sensitivity: 0.005 in/s/mstrain.
