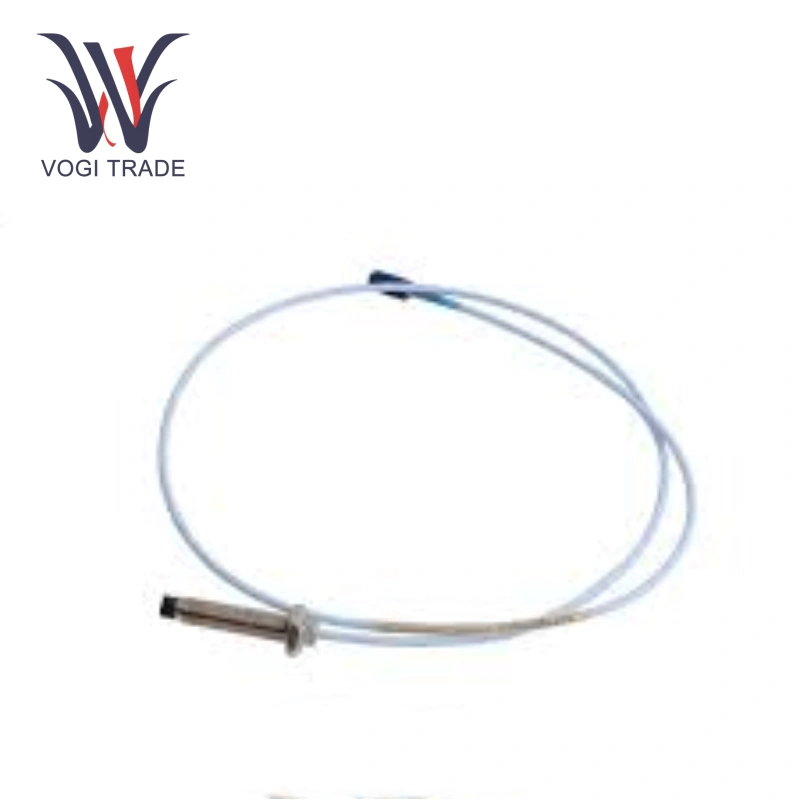

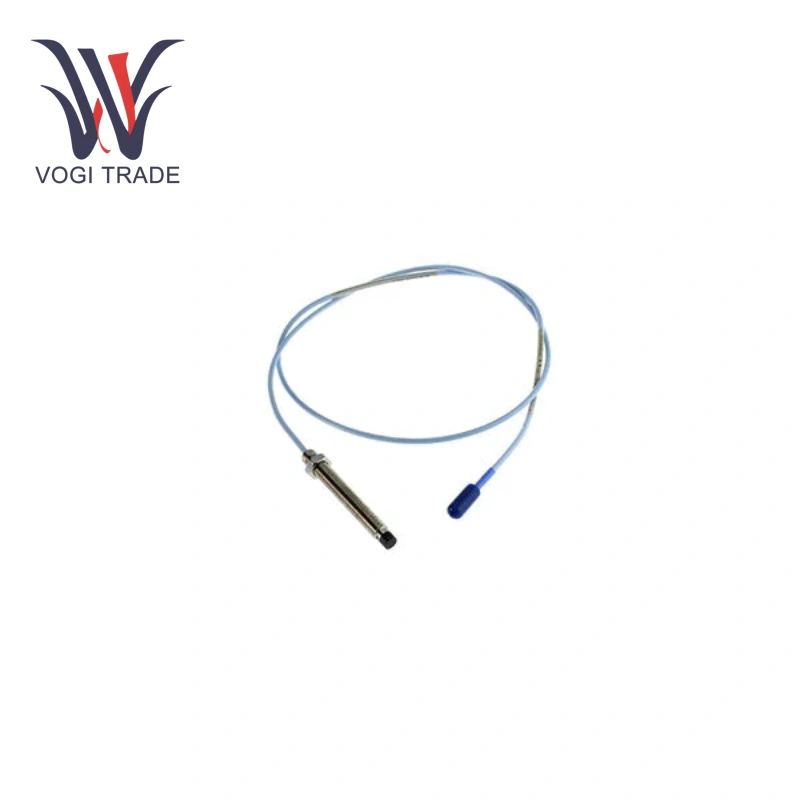

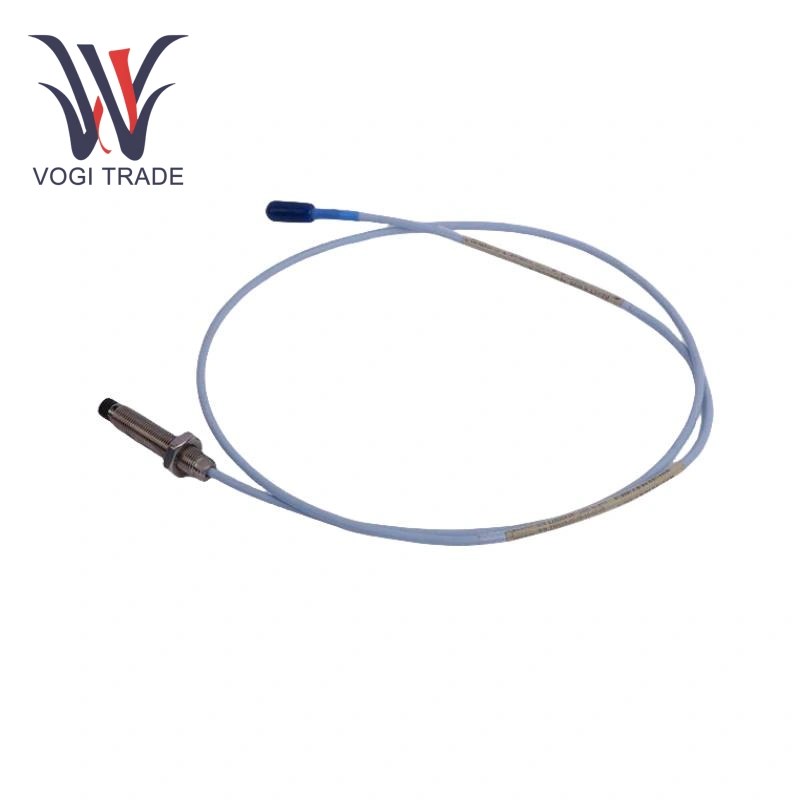

Brand: Bently Nevada Description: Proximity Probe Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330710-000-060-10-02-00 is a member of the 3300 XL 8mm series of eddy-current proximity probes, designed for precise monitoring of vibration and displacement in equipment components. Its AISI 304 stainless steel housing provides a durable and robust probe body that resists impact and corrosion.
|
Manufacture |
Bently Nevada |
|
Model Number |
330710-000-060-10-02-00 |
|
Ordering Number |
330710-000-060-10-02-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
2.5 kg |
Product Overview
Probe Type: Eddy Current Proximity Probe
Probe Diameter: 8mm
Probe Total Length: 600mm
Probe Housing Material: AISI 304 Stainless Steel
Probe Cable: 75Ω Triaxial FEP Insulated Cable
Linear Range: 2mm (80mils)
Average Sensitivity: 7.87V/mm (200mV/mil), Average Sensitivity Error ≤±5%
Frequency Response: 0-10kHz, with less than 1% attenuation from 0-1kHz and less than 5% attenuation at 10kHz
Operating Temperature: -50°C to +175°C, Temperature Drift ≤0.05%/°C
Operating Media: Operates in air, oil, water, and other media
Maximum Operating Pressure: 12MPa
Minimum Target Size: 50mm Diameter (Applicable to 8mm probes)
Product Features
Accurate Measurement: Bently Nevada 330710-000-060-10-02-00 with high linearity and sensitivity enable precise measurement of static displacement and dynamic vibration of equipment components.
Durability: Bently Nevada 330710-000-060-10-02-00 use stainless steel probe housing is impact- and corrosion-resistant, ensuring stable operation in harsh industrial environments.
Stable Signal: Bently Nevada 330710-000-060-10-02-00 with FEP-insulated cable effectively reduces signal transmission interference, ensuring stable and reliable output signals.
Applications
Power Industry: Bently Nevada 330710-000-060-10-02-00 used for vibration and displacement monitoring of equipment such as steam turbines and generators, promptly detecting problems such as loose components and wear.
Petrochemical Industry: Bently Nevada 330710-000-060-10-02-00 is suitable for equipment such as compressors and pumps, accurately measuring vibration and displacement parameters to provide real-time visibility into equipment operating status.
Installation and Maintenance Points
(1) Mechanical Installation
Torque Limit (M16×1.5 Thread):
Maximum Torque: 63.3 N·m (560 in·lb)
Recommended Torque: 21.1 N·m (187 in·lb)
Thread Engagement Length: Maximum 24 mm (Exceeding the limit may cause seizure)
Minimum Bend Radius: 25.4 mm (1.0 in)
(2) Connector Protection
Default Configuration: No Connector Protective Cover (Option Code 02)
Optional Accessories:
Connector Protective Cover (03839410/03839420)
Silicone Self-Fusing Tape (03200006, not recommended for turbine oil environments)
