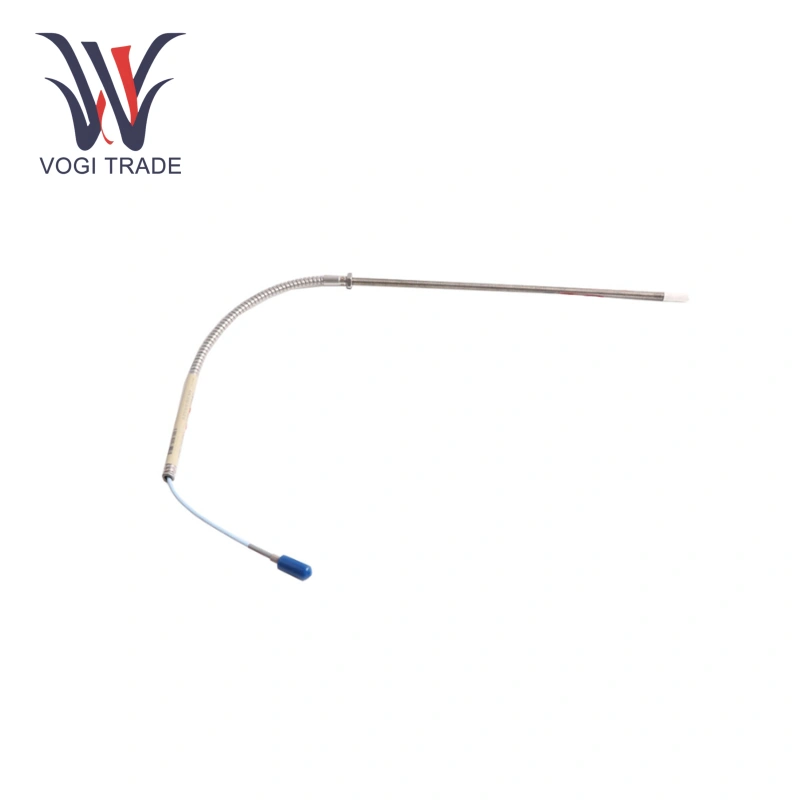

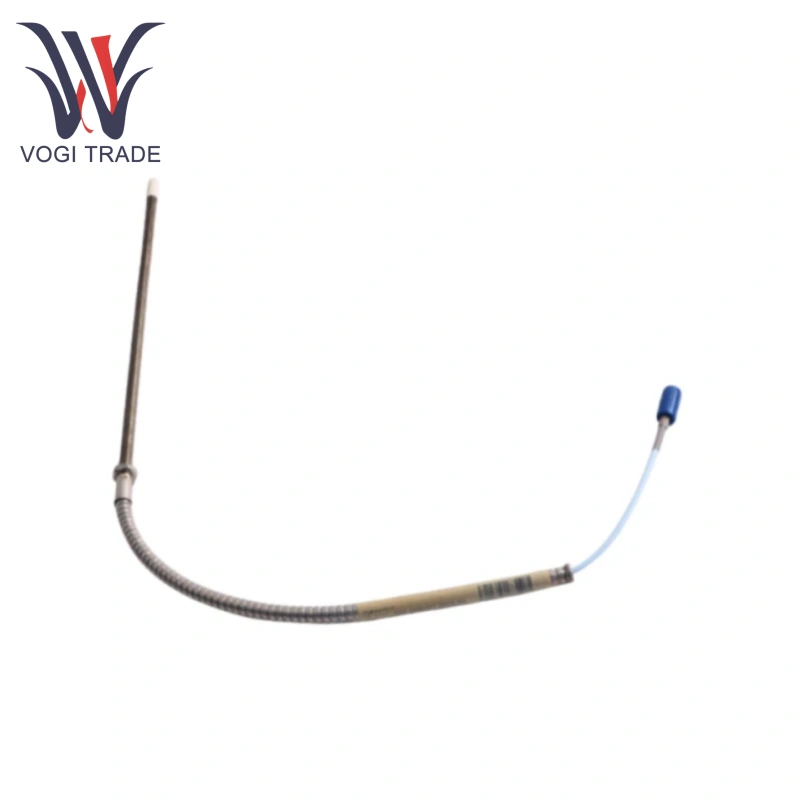

Brand: Bently Nevada Description: NSv Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330902-00-95-05-02-00 NSv Proximity Probe is a key component of the 3300 XL NSv Proximity Sensor System, monitoring shaft displacement, vibration, and other critical parameters in rotating machinery.
|
Manufacture |
Bently Nevada |
|
Model Number |
330902-00-95-05-02-00 |
|
Ordering Number |
330902-00-95-05-02-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
2kg |
Frequency Response: 500Hz
Output Signal: 4-20mA or 0-10V (selectable) standard output signal.
Power Requirements: 24VDC.
Operating Temperature: -40°C to +85°C, Storage Temperature: -55°C to +125°C.
Protection Rating: IP66
Product Features
Bently Nevada 330902-00-95-05-02-00 have advanced design and manufacturing ensure precise measurement.
Bently Nevada 330902-00-95-05-02-00 compared to the previous-generation 3300 RAM probe, it offers significantly improved chemical resistance, making it suitable for monitoring equipment such as process compressors in complex chemical environments.
Bently Nevada 330902-00-95-05-02-00 mechanically and electrically compatible and interchangeable with the previous-generation 3300 RAM probe and extension cable.
Applications
Bently Nevada 330902-00-95-05-02-00 used for turbine and generator shaft monitoring, timely detecting shaft displacement and vibration anomalies.
Bently Nevada 330902-00-95-05-02-00 uesd for monitoring equipment such as compressors and pumps provides early warning of failures.
Bently Nevada 330902-00-95-05-02-00 uesd for condition monitoring of various rotating machinery helps companies implement predictive maintenance.
Installation Notes
Thread engagement limit: Maximum 0.375 inches (9.5 mm). Exceeding this limit may cause seizure.
Minimum bend radius: 25.4 mm (1.0 inch).
Recommended clearance setting: 1.0 mm (40 mils).
Anti-interference spacing:
Radial vibration probe spacing ≥ 23 mm
Axial position probe spacing ≥ 25 mm
Chart Support
Linear Range Verification:

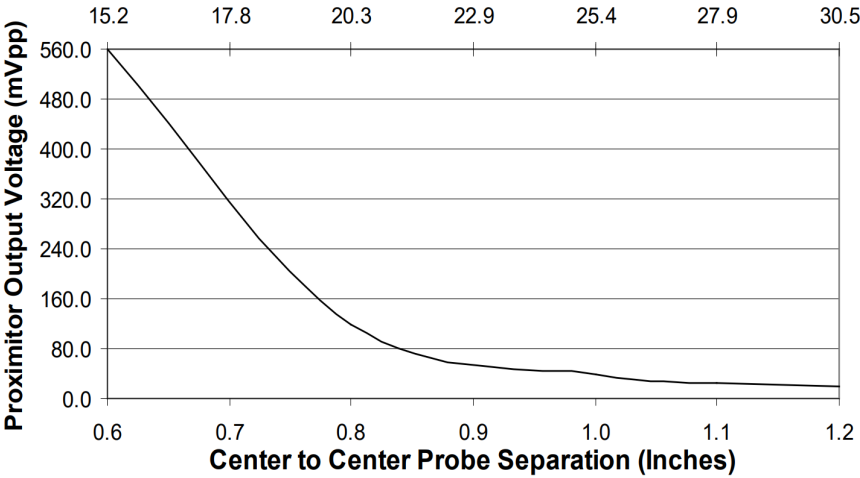

Cross-Interference Avoidance:
