Brand: Bently Nevada Description: NSv Proximity Transducer System Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330980-70-05 NSv proximity sensor system is a 3300 XL NSv series system for monitoring shaft displacement, vibration, and key phase in rotating machinery. It consists of an NSv probe, extension cable, and proximitor amplifier. The threadless probe is designed to adapt to specific installation scenarios, has an overall length of 70mm, and is equipped with a dedicated connector.
|
Manufacture |
Bently Nevada |
|
Model Number |
330980-70-05 |
|
Ordering Number |
330980-70-05 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
2kg |
Product Overview
Measurement range: 0-5mm shaft displacement (linear range), vibration measurement frequency response: 0-500Hz.
Sensitivity: 8mV/μm (±1% linearity error), output voltage range: -2V to -18V DC.
Probe operating temperature: -40°C to +125°C
Proximitor operating temperature: -40°C to +85°C
Relative humidity: 5% to 95% (non-condensing)
Protection rating: IP66.
Product Features
Bently Nevada 330980-70-05 have high sensitivity of 8mV/μm and ±1% linearity error allows detection of micron-level shaft displacement changes.
Bently Nevada 330980-70-05 have wide operating temperature range and IP66 protection make it suitable for high-temperature, dusty environments such as power plants and petrochemical plants, minimizing the impact of harsh environments on monitoring accuracy.
Bently Nevada 330980-70-05 have threadless probe design accommodates specialized mounting locations, and the extension cable is customizable in length to meet the wiring requirements of diverse equipment layouts.
Applications
Bently Nevada 330980-70-05 used in turbine and generator shaft displacement and vibration monitoring, compatible with high- and low-pressure cylinder bearing seat installation, prevents shaft wear and rotor imbalance.
Bently Nevada 330980-70-05 uesd in centrifugal compressor and cracking gas compressor shaft vibration monitoring withstands high temperatures and oil and gas environments in the plant area, ensuring continuous operation of the compressor unit.
Installation and Configuration
The 330980-70-05 is panel-mountable and suitable for high-density control cabinets or traditional panel integration.
Installation Steps:
Preparation: Ensure the total system length is 7.0 meters (probe length + extension cable length).
Connection: Use ClickLoc connectors to connect the probe, extension cable, and proximitor sensor. The connectors feature a locking mechanism to prevent loosening.
Securing: Secure the proximitor sensor with panel mounting screws. Ensure the terminal has a minimum IP54 rating.
Wiring: Field wiring can reach a maximum of 305 meters. Use three-conductor shielded cable to reduce electromagnetic interference (EMI). Avoid cross-probe interference.
Calibration: Default calibration is AISI 4140 steel; custom calibration is required for non-standard targets.

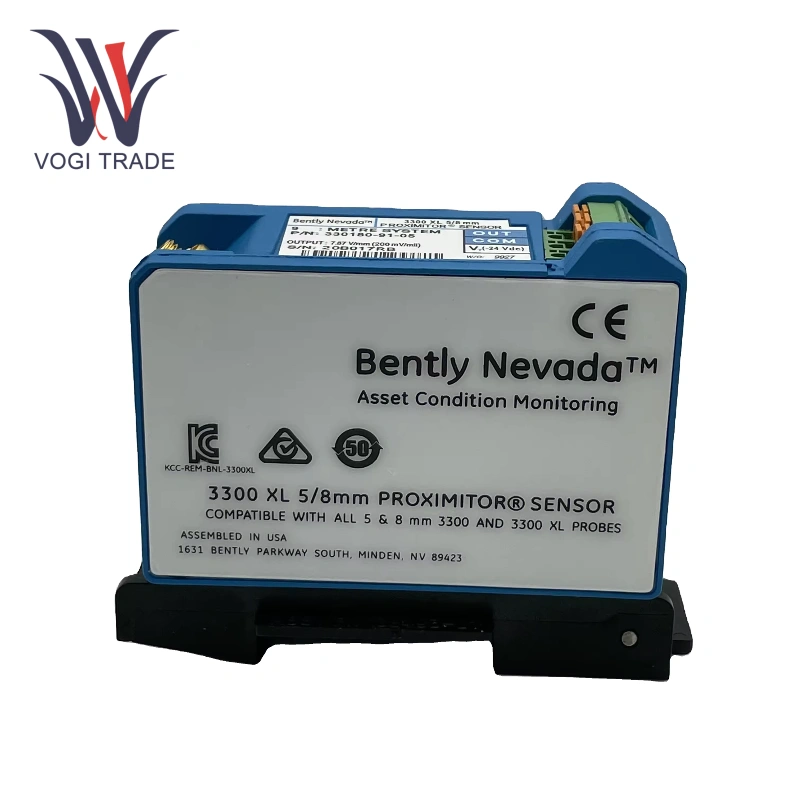

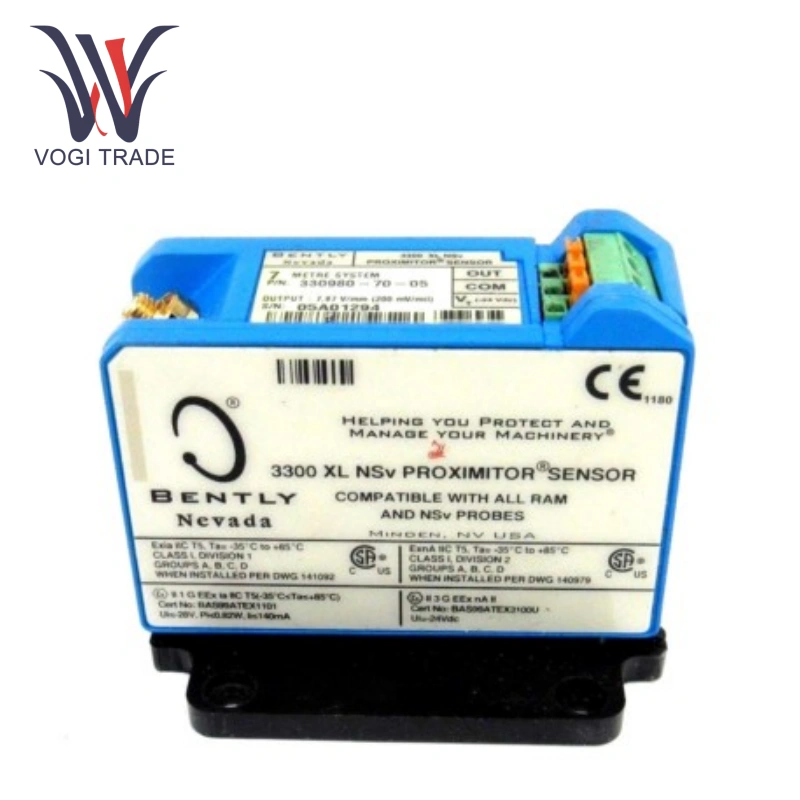

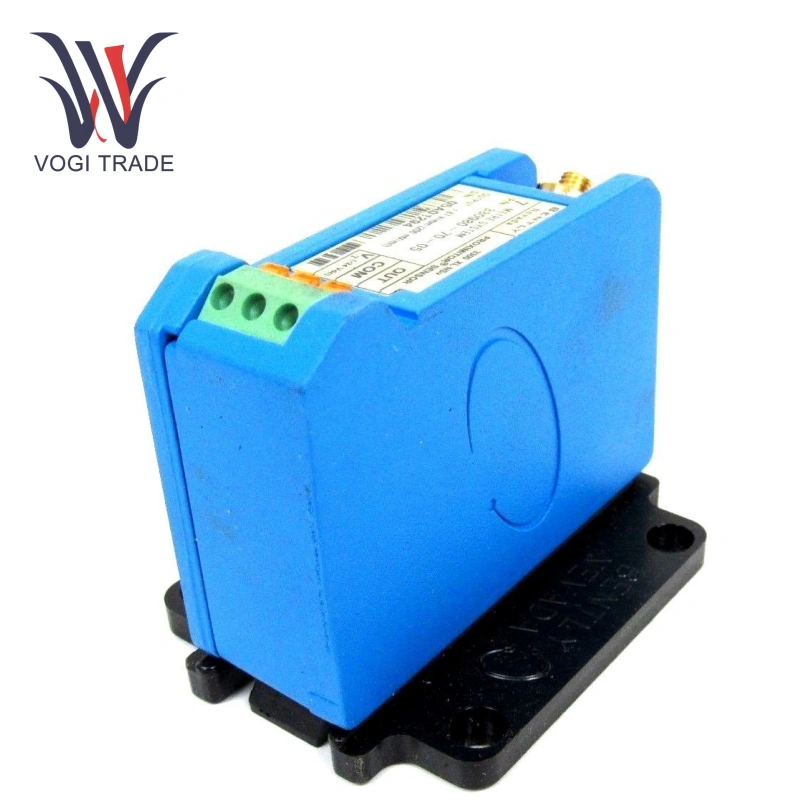

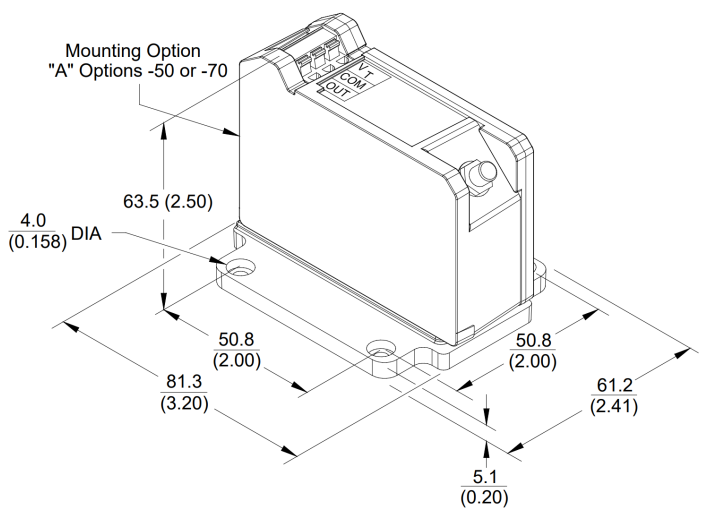

The panel-mount design facilitates deployment in compact spaces. The following images illustrate a typical panel-mount configuration:
