Brand: Bently Nevada Description: 3500/05-01-01-00-00-00 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: Xiamen 3500/05-01-01-00-00-00 is a 19-inch EIA standard rack that serves as a core component for installing the 3500 series Monitor Modules and Power Supplies system.
Product Overview

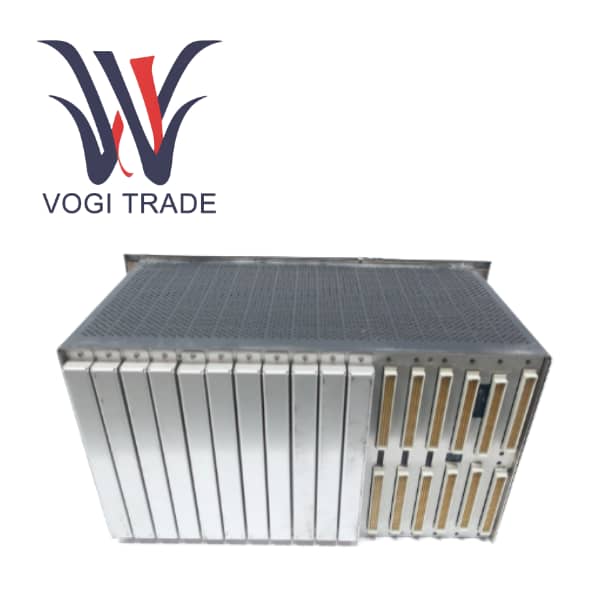

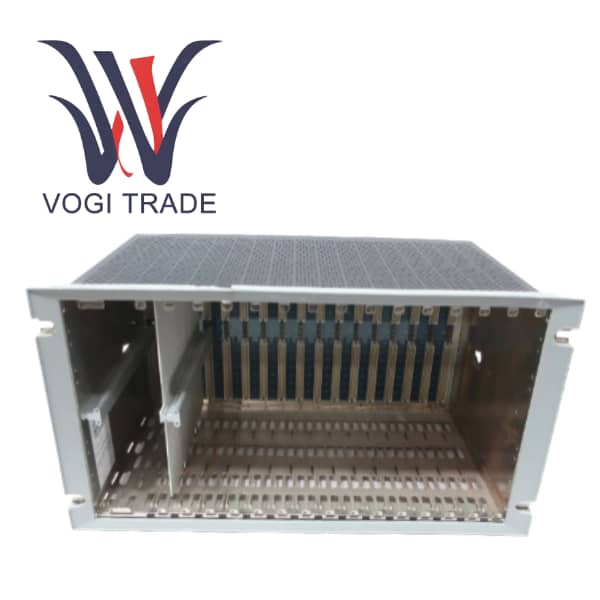

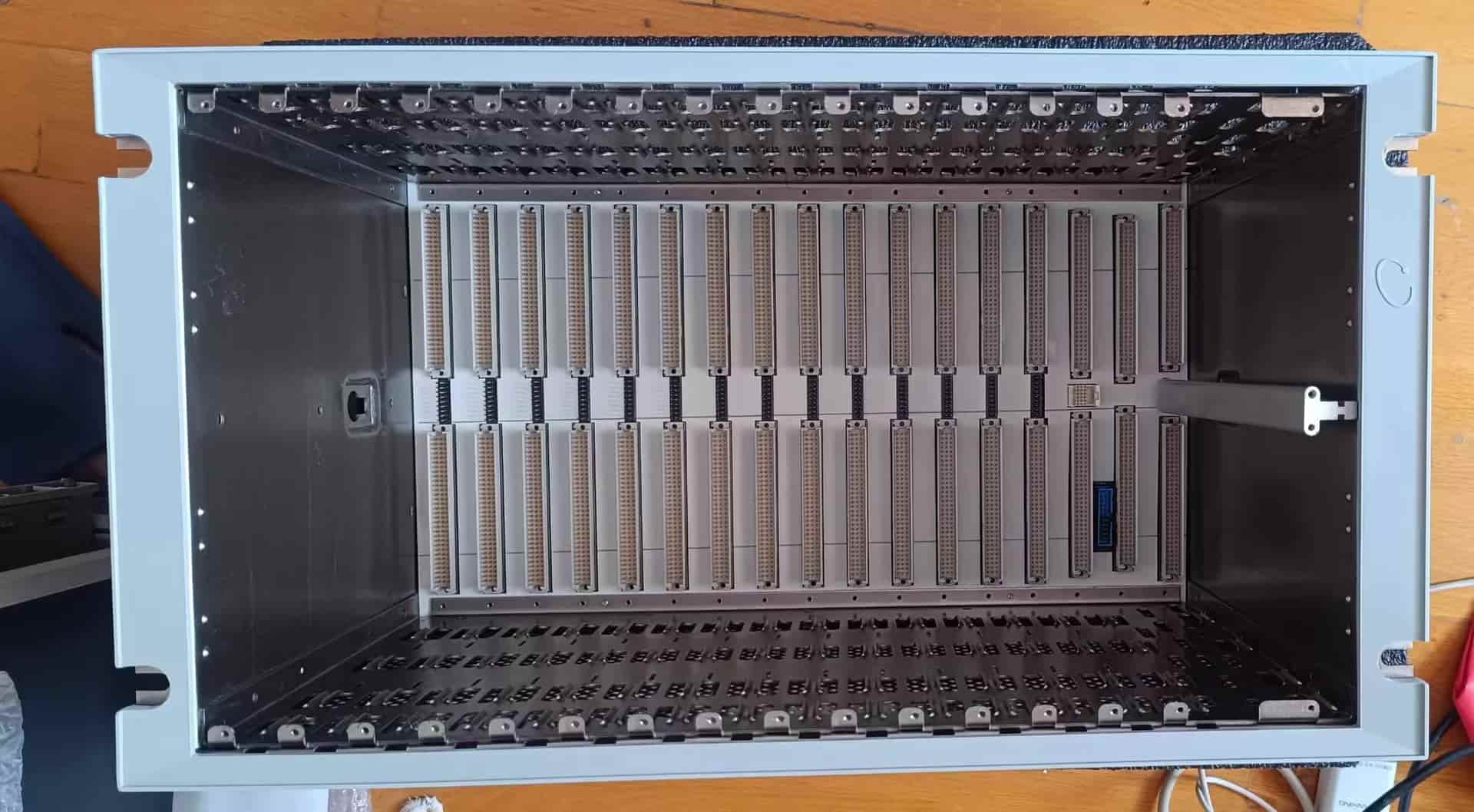

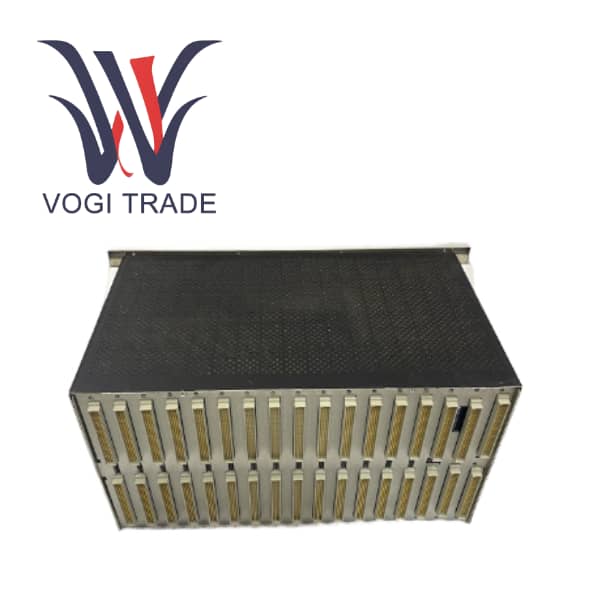

3500/05-01-01-00-00-00 is a 19-inch EIA standard rack that serves as a core component for installing the 3500 series Monitor Modules and Power Supplies system. It is the backbone and veins of the entire 3500 monitoring system, providing physical installation locations, backplane, and power distribution channels for all the monitoring modules.
Ordering number
3500/05 Product series code, representing the 3500 system rack
01 the first digit Rack size, 19-inch full-size rack with 14 module slots
01 the second digit Installation method, Panel Mount
00 the third digit Certification option, no specific hazardous area certification
00 the fourth digit Reserved position, no specific function
00 the fifth digit European compliance option, representing no specific European directive. Usually used to indicate the CE certification status, here it is the default
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/05-01-01-00-00-00 |
|
Ordering Number |
3500/05-01-01-00-00-00 |
|
Catalog |
3500 |
|
Description |
System rack |
|
Country Of Origin |
USA |
|
HS CODE |
7326909000 |
|
Dimension |
48*26*34 (CM) |
|
Weight |
9.5kg |
Comparison of similar products
3500/05-01-01-00-00-00 This product vs 3500/05-02-01-00-00-00 Mini-Rack
Difference
This product is a full-size chassis with 14 slots, while the latter is a mini chassis with 7 slots. The mini chassis is smaller in size and is suitable for situations with limited space, but its expansion capability is halved. Compatibility When installing the mini rack into a 19-inch standard cabinet, an additional order of 144863-01 adapter panel is required. However, this product is directly compatible.
3500/05-01-01-00-00-00 vs 3500/05-01-02-00-00-00
Difference
The rack dimensions of the two are the same, but the installation methods are different. This product is installed on the panel, while the latter is installed in the rack with EIA guide rail mounting ears.
3500/05 vs 3500/06 Weatherproof Housing
Difference
3500/05 is the standard rack for indoor use, while 3500/06 is the rainproof enclosure for outdoor use. The partition installation option of 3500/06 is incompatible with that of 3500/05.
Problems encountered during use
Slot conflict
If the user plans to install Internal Barriers, an additional 3500/04-01 grounding module must be ordered. This will occupy a valuable module slot and is easily overlooked during the design stage.
Space interference
In the panel installation mode, sufficient wiring space needs to be reserved behind the rack. If the control cabinet backplate is too close to the wall, it will make it impossible to connect wires.
Version compatibility
Although the rack itself is hardware, the backplane jumpers inside it need to be set according to the software version. Mini racks require software version 2.70 or higher, and full-size racks also need to pay attention to firmware compatibility when connecting specific new modules.
Heat dissipation issue
When installing 14 fully loaded modules in the full-size rack, the heat generated is relatively large. If installed in a sealed partition installation environment without forced ventilation, it may cause the module to overheat and trigger an alarm.
