Bently Nevada 3500/15

Power Supply Options

Universal AC Voltage: Bently Nevada 3500/15 has a universal AC voltage option. The input voltage ranges from a nominal 110 to 220VAC, with a wider range of 85 to 264VAC RMS and 120 to 373VAC PK. This wide input voltage range makes it compatible with different AC power sources around the world, providing flexibility in different power supply environments.

High Voltage DC: For high voltage DC, it accepts an input voltage of 88 to 140VDC. This option is suitable for applications where a high voltage DC power supply is available or required, ensuring stable power for the connected systems.

Low Voltage DC: The low voltage DC option has an input voltage range of 20 to 30VDC, offering a reliable power source for systems that operate on lower DC voltages.

Features and Advantages

Redundant Power Supply Capability: The 3500/15 is designed to support redundant power supplies. In a rack, one or two power supplies (either AC or DC in any combination) can be accommodated. The bottom slot power supply acts as the primary, and the higher slot power supply serves as a backup. This redundancy ensures continuous operation of the system even if one power supply fails. The ability to use different voltage sources for the primary and backup power supplies (such as 120VAC for the main and 24VDC for the backup) provides added flexibility and reliability in case of power source issues.

Compatibility: It is compatible with the Bently Nevada 3500 mechanical protection system, working seamlessly with other modules in the system to provide comprehensive monitoring and protection for rotating equipment.

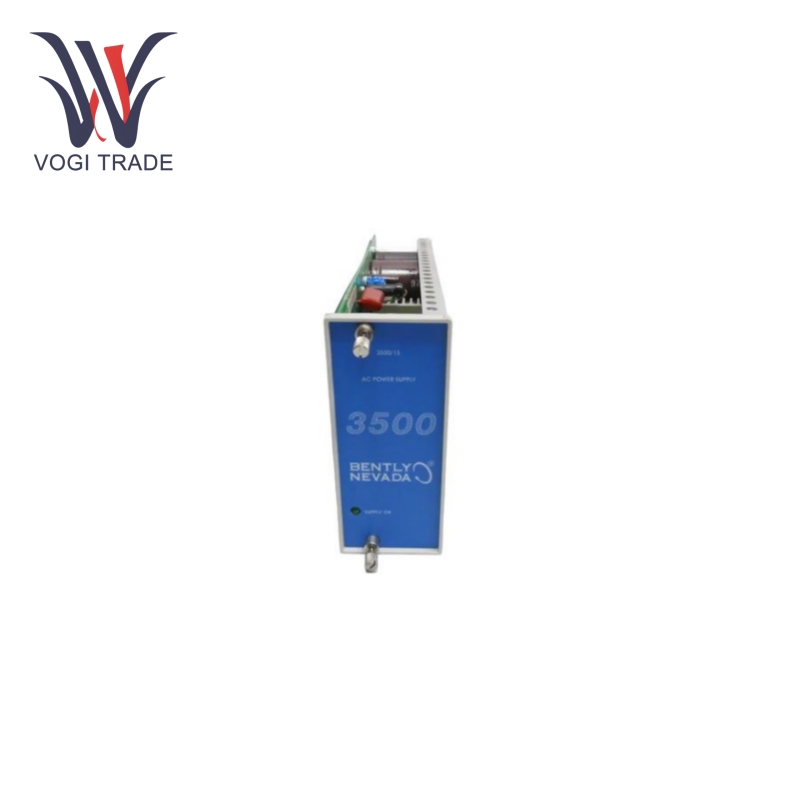

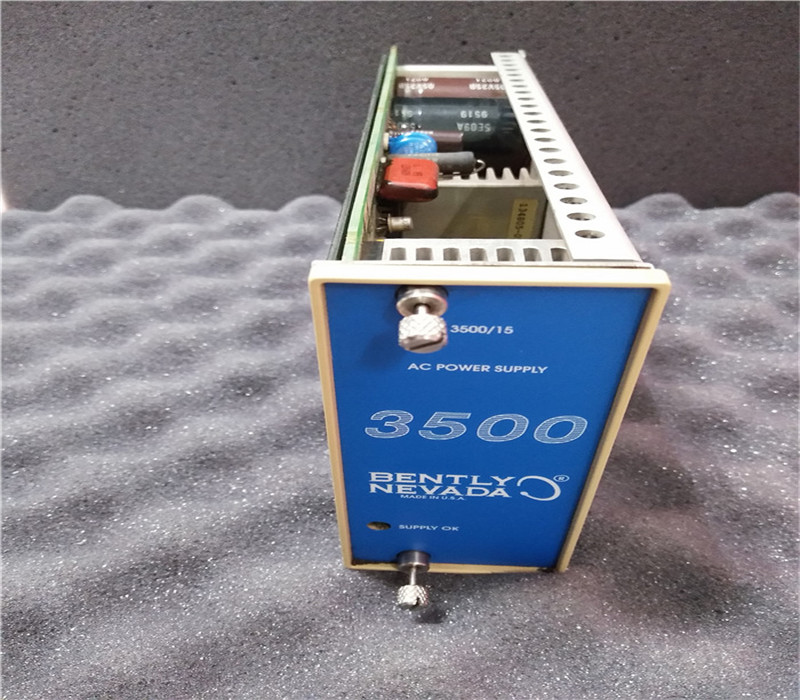

Self-Check Function: Bently Nevada 3500/15 has a self-check function that can monitor whether all output voltages are in line with specifications. This is indicated by a green "supply ok" light-emitting diode (LED) on the front panel of the power module, allowing users to easily monitor the status of the power supply.

Half-Height Module Design: The 3500/15 is a half-height module, which is convenient for installation in the rack. This design saves space in the equipment cabinet and is conducive to the overall layout of the system.

Application Fields

Rotating Equipment Monitoring: Bently Nevada 3500/15 is widely used in the monitoring of rotating equipment such as turbines, generators, and compressors. It can monitor parameters such as vibration, axial displacement, and temperature of the equipment in real-time, helping to predict potential faults, improve equipment reliability and availability, and reduce downtime and maintenance costs.

Industrial Automation: In the field of industrial automation, it provides stable power for the monitoring system's various components, ensuring the normal operation of the entire automation system.

Power Plant Operation and Maintenance: In power plants, it is used to monitor and protect key equipment like generators and turbines, enhancing the operational efficiency and reliability of the power plant. It helps power plant operators to detect and address potential issues in a timely manner, ensuring the safe and stable operation of the power generation process.

Oil and Gas Industry: In the oil and gas industry, Bently Nevada's monitoring systems are often used to monitor drilling equipment, pumping stations, and compressors.

Chemical Industry: In chemical production, Bently Nevada 3500/15 is used to monitor and protect key equipment to ensure the smooth progress of the production process. It helps to prevent equipment failures and ensure the safety and stability of the chemical production process.
