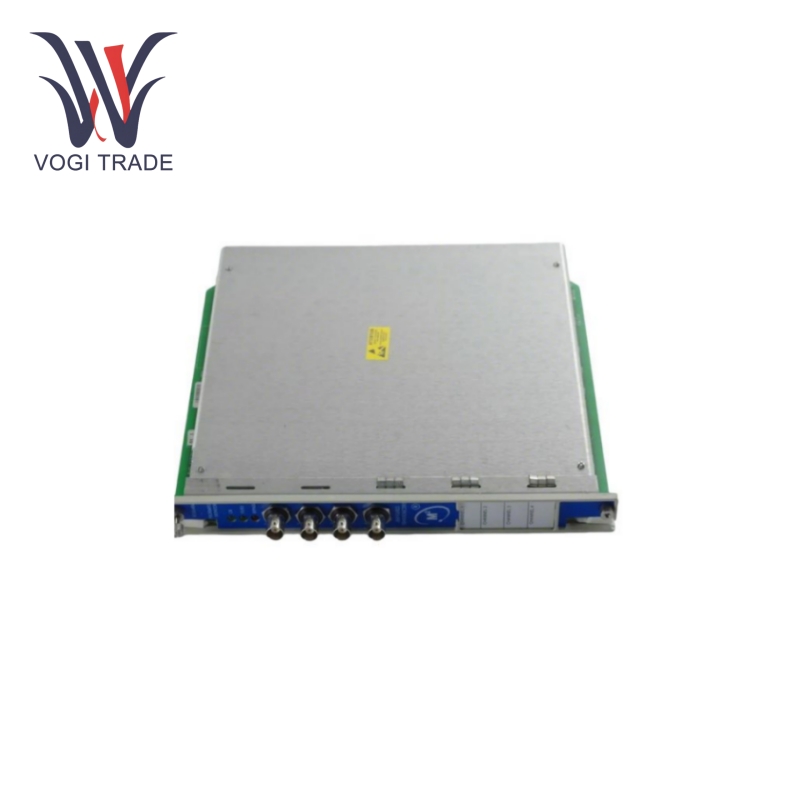

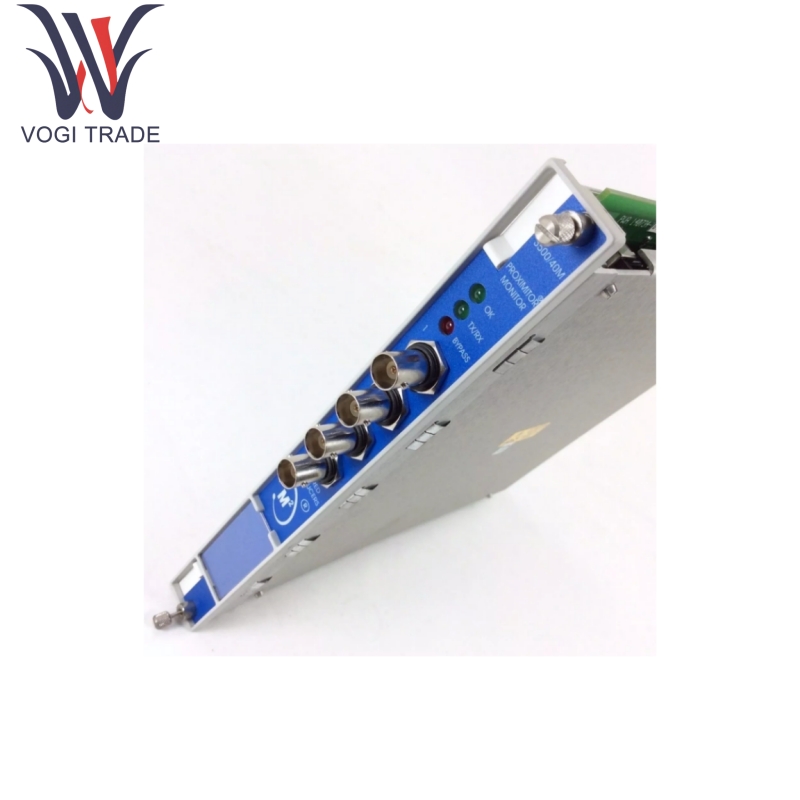

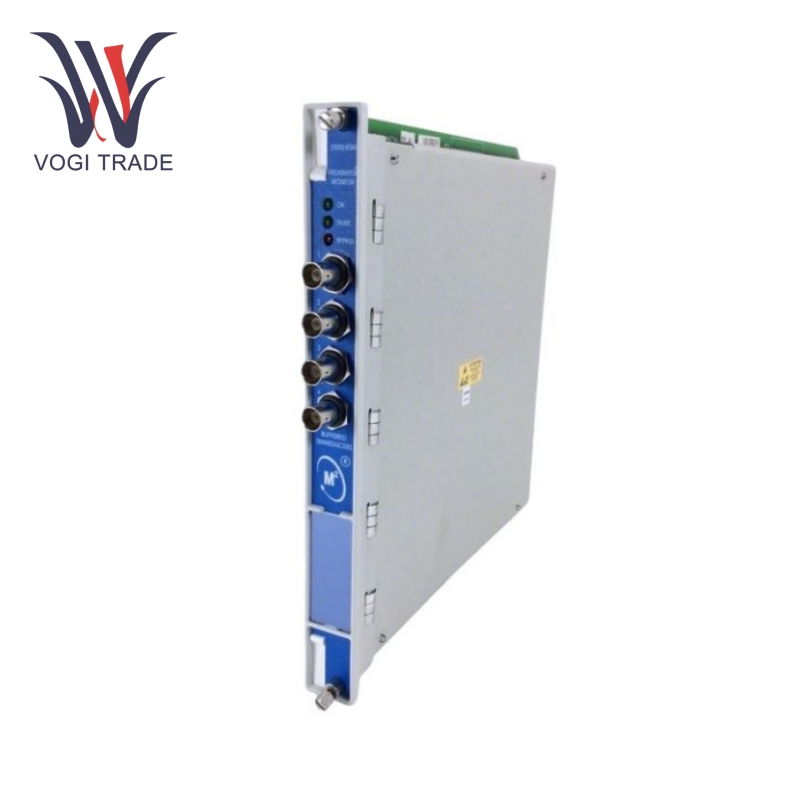

Bently Nevada 3500/40M

Input Channels: These channels can be configured to accept a variety of sensor signals. Its high input impedance (1MΩ or greater) reduces the load on the sensor connected to it. Therefore, it is able to accurately detect low-amplitude signals.

Sampling Rate: With a sampling rate of up to 20 kHz per channel, the module can capture transient events that only appear for a short time or examine more detailed vibration waveforms to obtain detailed information about the operation of the monitored machine - these are examples of signals where this high sampling frequency is beneficial.

Accuracy: The Bently Nevada 3500/40M provides an accuracy of ±0.5% of the reading. Less than one-tenth of a percent accuracy is critical to identifying subtle changes in observed parameters, including subtle changes in vibration amplitude or frequency.

Frequency Response: From DC to 10 kHz - it can handle the entire vibration frequency range. This is necessary for studying low-frequency structural vibrations and high-frequency resonances that may occur in industrial machinery.

Features

Processing Format: It helps to amplify, filter and convert the input signal into a digital format suitable for processing. There are also built-in filters that can be adjusted to remove any unnecessary noise and interference, which will help improve the signal-to-noise ratio for better analysis of measurement data.

Self-monitoring and diagnostics: A complete self-monitoring and diagnostic system. The Bently Nevada 3500/40M performs continuous self-checks on the internal integrity of the entire module, from input channels, authorization and communication lines. If any faults or abnormal conditions occur, it can sound an alarm and provide detailed diagnostic data. This proactive approach helps to maximize availability and reduce maintenance costs by quickly identifying and resolving faults.

Gain Adjustment and Dynamic Range: The module provides dynamic range and gain adjustment for input channels. This allows it to adjust its range and gain based on your signal level and amplitude for maximum measurement accuracy regardless of the operating range. It can be configured to provide accurate readings, whether it is a small low-level signal or a larger or more obvious vibration.

Data Storage and Dissemination: The Bently Nevada 3500/40M helps to store large amounts of measurement data. They can retrieve this data for further analysis and trending. In summary, PLCs also support a variety of communication protocols, such as Ethernet and serial interfaces, allowing them to be seamlessly integrated into larger industrial control and monitoring systems. In other words, this capability enables remote access and control, making it easier to monitor and manage multiple machines and processes simultaneously.

Application Scope

Power Generation: Bently Nevada 3500/40M is commonly used in power plants to monitor the vibration and axial position of turbines, generators, and pumps. Continuous measurement of these parameters helps to detect any signs of imbalance, misalignment, or bearing wear. Preventing equipment failure by detecting such problems early allows for planned maintenance, avoids unexpected failures, and ensures reliable and efficient operation of power generation equipment.

Petrochemical Industry: In refineries and petrochemical plants, Bently Nevada 3500/40M is used to monitor the condition of compressors, motors, and other rotating machinery. As a result, they can quickly identify potential failures, allowing for more efficient maintenance or proactive repairs. This is critical in an industry where downtime itself can have far-reaching safety and economic impacts.

Manufacturing: Bently Nevada 3500/40M Used to monitor the performance of machine tools, industrial robots, and production line equipment in manufacturing facilities. Manufacturers can improve the quality and accuracy of their products by studying the vibration and position of all components within an assembly. For example, in a CNC machining center, it can detect tool chatter or spindle problems so that corrective actions can be taken immediately to minimize scrap.

Aerospace: It is used to monitor the health of aircraft engines and other critical components during ground testing and flight operations. II. The high accuracy and reliability of the Bently Nevada 3500/40M are essential to ensure NDE, NDT, and NDI for aerospace systems. For defense purposes, it is used to ensure the health of military vehicles and equipment, improve their operational readiness, and reduce the probability of field failures.
