Brand: Bently Nevada Description: Communication Gateway Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 3500/92-04-01-00 is the core communications gateway of the 3500 monitoring system, enabling data exchange between the 3500 framework and external systems. The device features a modular design and fits into standard 3500 system framework slots, facilitating easy installation and providing fault self-diagnosis.
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/92-04-01-00 |
|
Ordering Number |
3500/92-04-01-00 |
|
Catalog |
3500 |
|
Country Of Origin |
America |
|
HS CODE |
85389091 |
|
Dimension |
25*25*5CM |
|
Packing Dimension |
30*30*8CM |
|
Weight |
1.5 kg |
Product Overview
Model: 3500/92-04-01-00
Product Type: 3500 System Communication Gateway
Compatible System: Bently Nevada 3500 Vibration Monitoring System
Communication Protocols: Supports Modbus TCP/IP, OPC UA, and EtherNet/IP
Communication Interface: Two RJ45 Ethernet ports
Power Requirements: Powered by the 3500 system chassis (5V DC, typical power consumption ≤3W)
Operating Temperature: 0°C to +60°C (operating), -40°C to +85°C (storage)
Relative Humidity: 5% to 95% (non-condensing)
Ingress Protection: IP20
Dimensions: Compatible with 3500 system 19-inch racks, single module height 1U
Certifications: CE, UL, CSA
Product Features
Broad Protocol Compatibility: Bently Nevada 3500/92-04-01-00 supports multiple mainstream industrial communication protocols, allowing integration with PLC and DCS systems from different brands without the need for additional converters.
Stable Data Transmission: Bently Nevada 3500/92-04-01-00 use dual Ethernet ports support redundant communication, minimizing data interruptions caused by network failures.
Easy Integration: Bently Nevada 3500/92-04-01-00 with the modular design plugs directly into the 3500 system framework without the need for additional wiring, seamlessly integrating with the 3500 system's sensors and monitoring modules.
Applications
Power Industry: Bently Nevada 3500/92-04-01-00 used in the 3500 monitoring system for steam turbines in thermal power plants and generators in hydropower stations transmits vibration and shaft displacement data to the power plant's DCS system.
Petrochemical Industry: Bently Nevada 3500/92-04-01-00 used in the 3500 monitoring system for compressors and pumps in refineries uploads equipment operating data to the SCADA system via a gateway, supporting remote monitoring and fault warnings.
Physical Characteristics and Dimensions
This module consists of a main module and I/O modules, featuring a compact design suitable for industrial rack mounting. Key dimensions and weights are as follows:
Main Module
Dimensions: 241mm × 24.4mm × 242mm (9.50 in × 0.96 in × 9.52 in)
Weight: 0.82 kg (1.8 lb)
I/O Module (for Ethernet/RS485 type A=04):
Dimensions: 241mm × 24.4mm × 99.1mm (9.50 in × 0.96 in × 3.90 in)
Weight: 0.44 kg (0.96 lb)
Rack Space Requirements:
One full-height front slot (for the monitoring module) and one full-height rear slot (for the I/O module) are required.

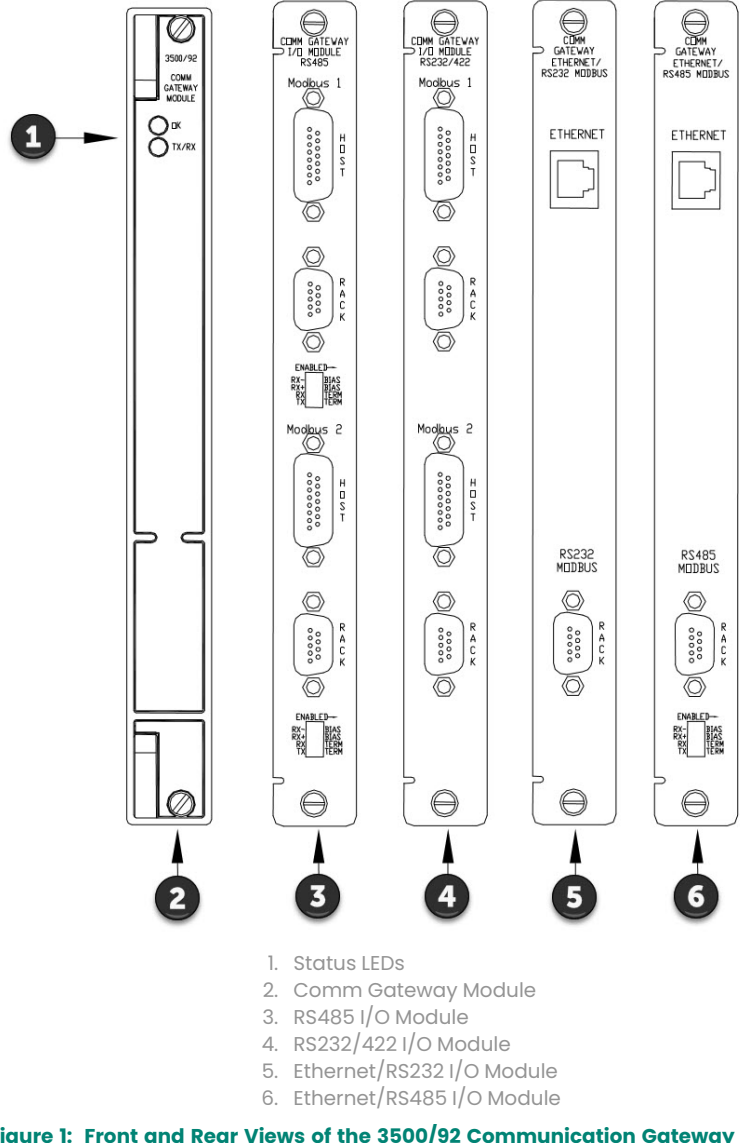

Front and rear views of the module:
