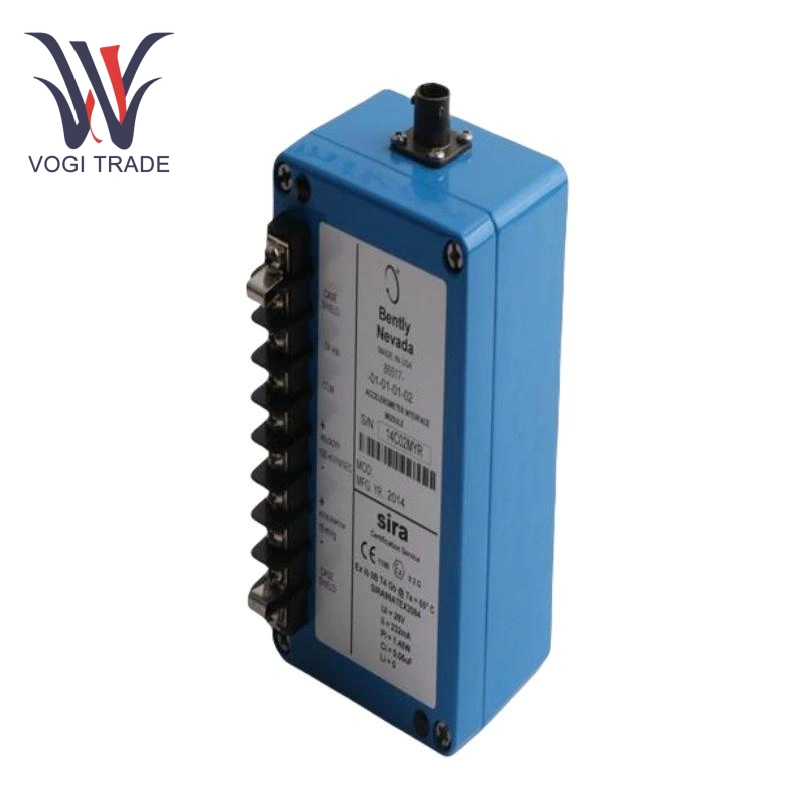

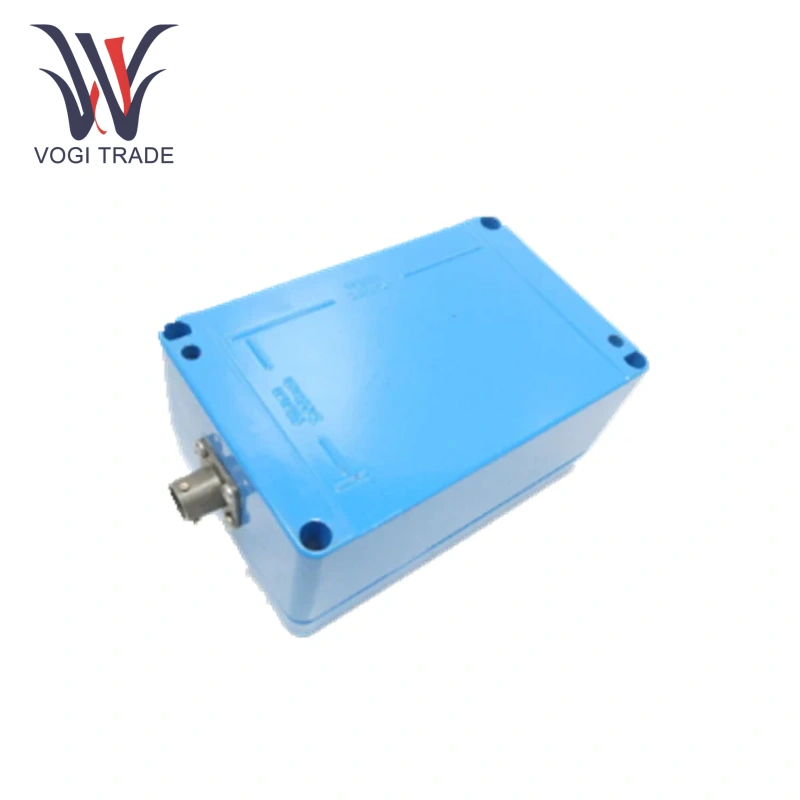

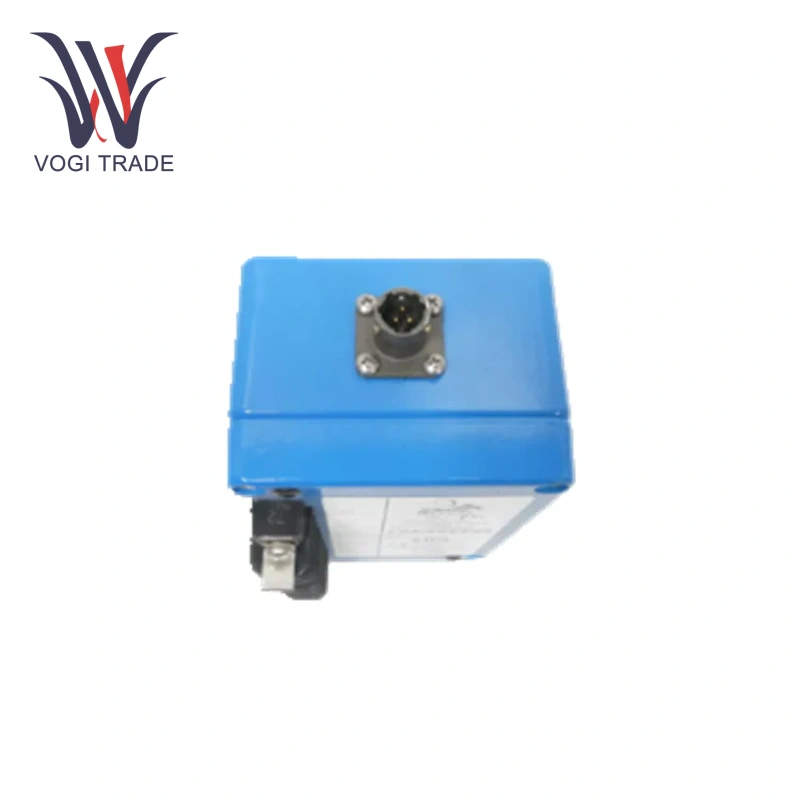

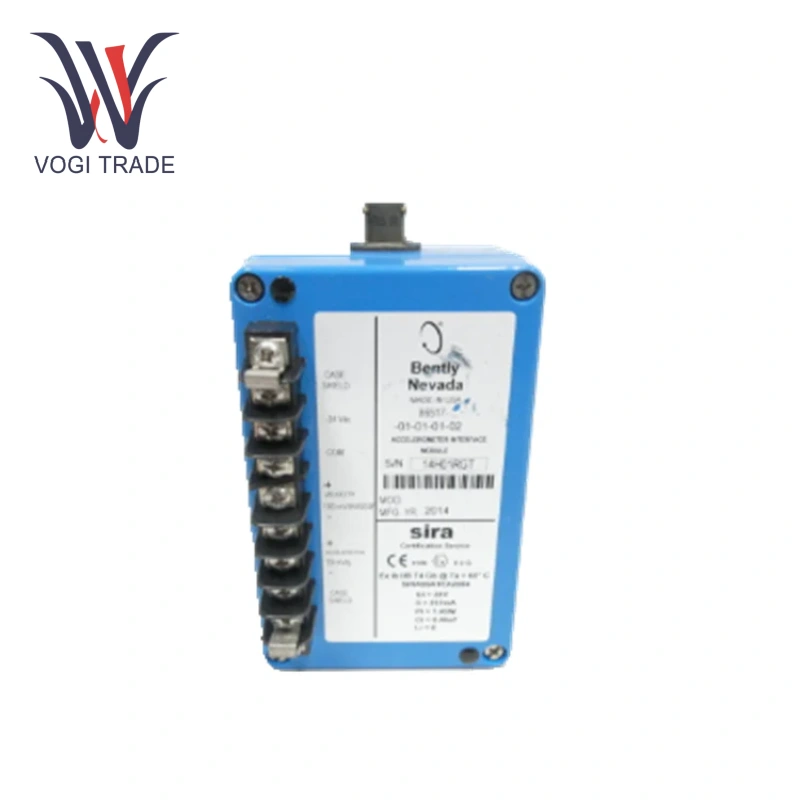

Brand: Bently Nevada Description: Accelerometer Interface Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 86517-01-01-CN accelerometer interface module is used in industrial machinery vibration monitoring systems. The module connects to an accelerometer, receives its output charge signal, amplifies and filters it through internal circuitry, and converts it into a stable DC output signal proportional to the vibration amplitude.
|
Manufacture |
Bently Nevada |
|
Model Number |
86517-01-01-CN |
|
Ordering Number |
86517-01-01-CN |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
16*10*8CM |
|
Packing Dimension |
20*15*10CM |
|
Weight |
2 kg |
Product Overview
Input Parameters: Sensor charge input sensitivity is 50 pc/g; DC signal bias voltage is -10 VDC.
Output Parameters: Output is a 10 VDC DC signal.
Frequency Response: High-pass cutoff frequency is 25 Hz, low-pass cutoff frequency is 350 Hz.
Power Requirements: Supply voltage is 24 VDC, current consumption is 138 mA.
Operating Temperature: 0°C to +70°C.
Function
Converts the accelerometer's charge input into a voltage acceleration signal.
Processes the signal through a 12th-order bandpass filter.
Integrates the acceleration signal to generate a velocity signal.
Supports single-ended or balanced two-wire output modes, suitable for long-distance transmission.
Product Features
Bently Nevada 86517-01-01-CN accelerometer signals are precisely amplified and filtered to remove noise and output a stable DC signal.
Bently Nevada 86517-01-01-CN have 25Hz-350Hz frequency response effectively covers the common vibration frequencies of various industrial equipment.
Bently Nevada 86517-01-01-CN used rugged and durable housing withstands harsh industrial environments such as high temperature, humidity, and dust.
Applications
Bently Nevada 86517-01-01-CN vibration monitoring for large rotating equipment such as steam turbines and generators helps promptly identify potential faults such as rotor imbalance and bearing wear.
Bently Nevada 86517-01-01-CN vibration monitoring for equipment such as compressors and pumps helps prevent leaks and damage caused by abnormal vibration.
Bently Nevada 86517-01-01-CN vibration monitoring for rolling mills, continuous casting machines, and other machinery helps optimize equipment operation.

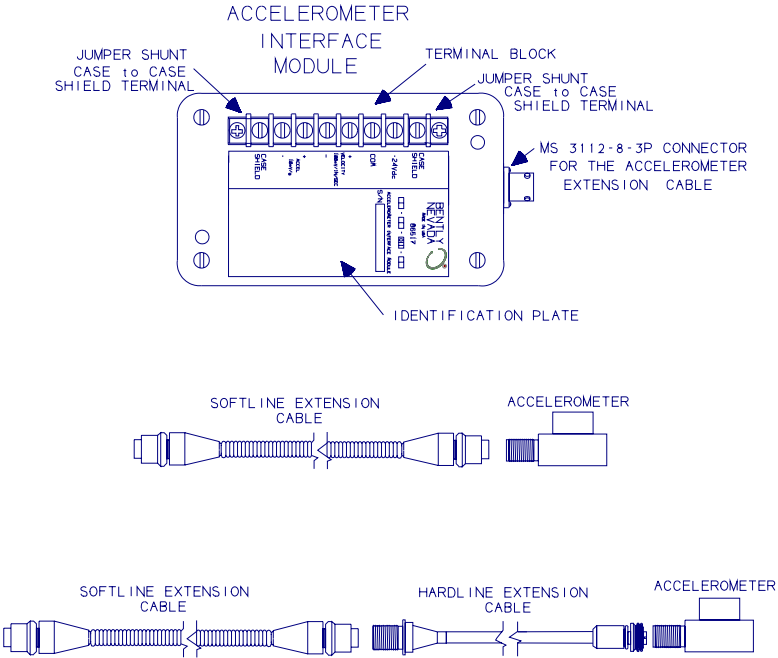

Interface module

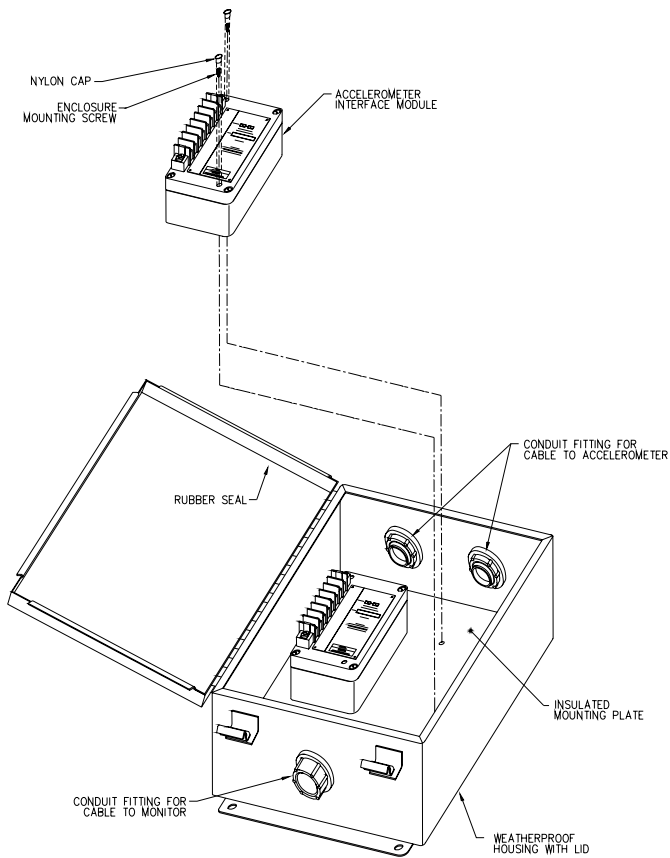

Mount horizontally in a protective housing (such as the BN 80808 series) to protect against vibration (≤ 0.1g-pk).
Isolation requirements: The housing must be insulated from ground.
Accelerometer: Install according to OEM specifications. Connectors must be securely strapped to prevent loosening.
