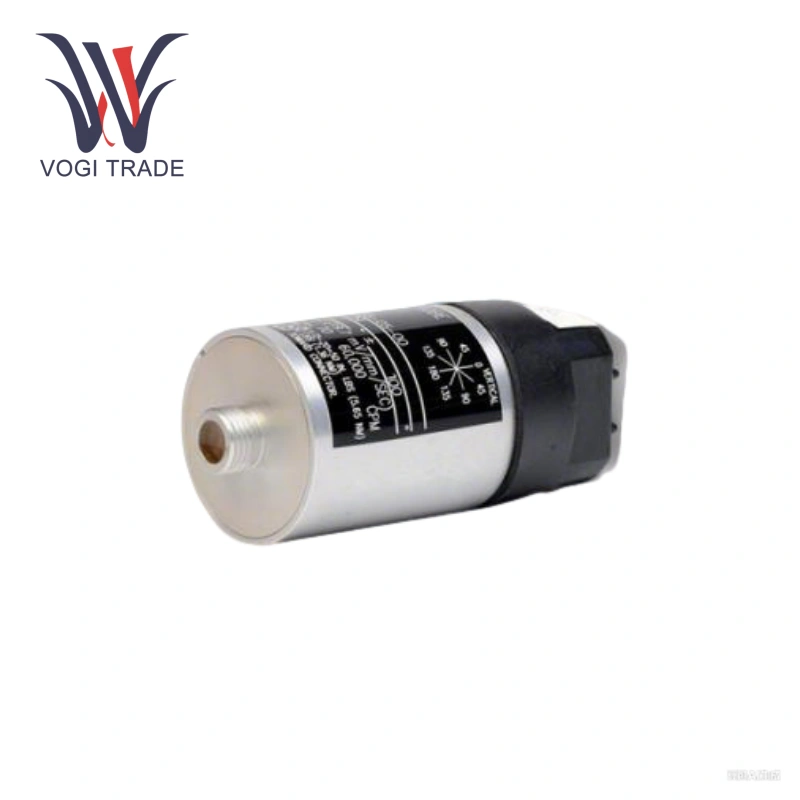

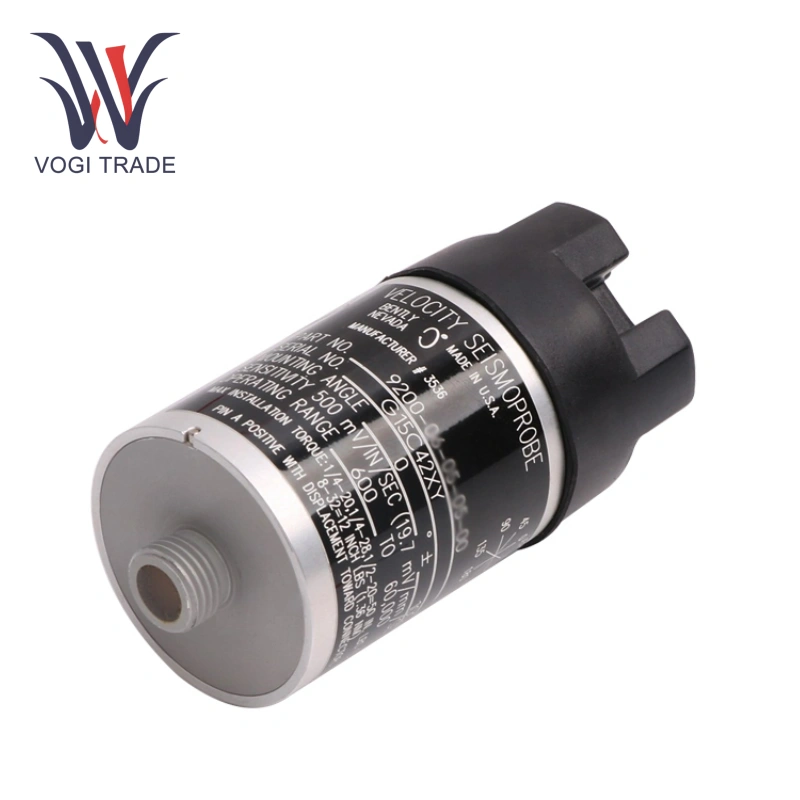

Brand: Bently Nevada Description: Two-Wire Velocity Seismoprobe Transducer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently 9200-01-05-10-00 2-Wire Transmitter Speed Sensor. The Bently 9200-01-05-10-00 is a 2-wire transmitter speed sensor manufactured by Bently Nevada. It is typically used for continuous monitoring or periodic measurement in conjunction with test or troubleshooting instrumentation.
|
Manufacture |
Bently Nevada |
|
Model Number |
9200-01-05-10-00 |
|
Ordering Number |
9200-01-05-10-00 |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
17*17*7CM |
|
Weight |
0.9kg |
Electrical Characteristics:
Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5%.

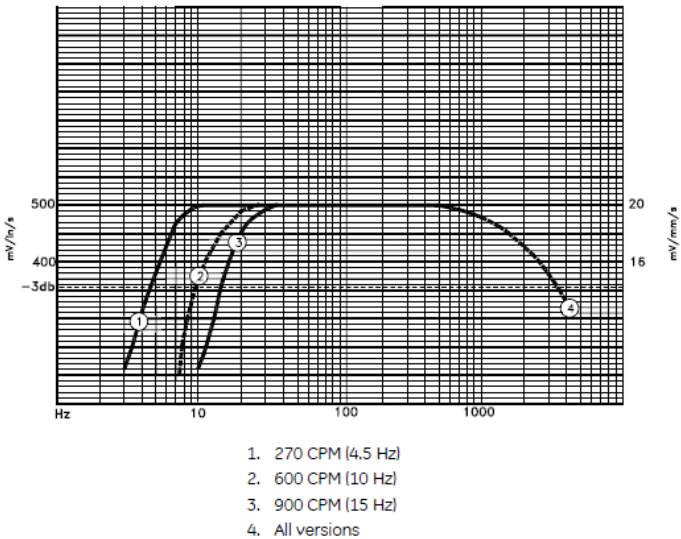

Frequency Response: With option A set to 01 (minimum frequency 4.5 Hz), response range is 4.5 Hz to 1000 Hz (270 to 60,000 cpm), typical ±0.3 dB.
Dynamic Range: Maximum displacement 2.54 mm (0.100 in) peak-to-peak; velocity range 25 mm/s (1 in/s) at 100 Hz.
Coil Resistance: 1.25 kΩ ±5%. Locking Coil Inductance: 125 mH.
Amplitude Linearity: ±5% (from 0.01 to 5.0 in/s at 100 Hz).
Transverse Sensitivity: ±10% (maximum, relative to the sensitive axis).
Materials:
Housing and adapter: Anodized A204 aluminum.
Gasket material: Neoprene (9200 series).
Connector: Terminal block options use polyphenylene sulfide (PPS) and nickel-plated copper contacts.
Environmental Compliance:
FCC: Complies with Part 15 of the FCC Rules (no harmful interference).
EMC: Complies with EU Directive 2014/30/EU (EN 61326-1 for industrial environments).
RoHS: Complies with EU Directive 2011/65/EU.
Hazardous Locations: This model (D option 00) has no specific certifications and is not suitable for use in Class I/II/III hazardous locations.
Feature
Two-wire design: Bently 9200-01-05-10-00 use implifies installation and wiring, reducing cost and complexity.
High-precision measurement: Bently 9200-01-05-10-00 can accurately measures vibration, providing critical data for predictive maintenance.
Rugged design: Bently 9200-01-05-10-00 designed for harsh industrial environments, it withstands shock and vibration.
Application
Industrial Condition Monitoring: Bently 9200-01-05-10-00 suitable for power plants, manufacturing plants, and other locations, analyzing mechanical equipment vibration to prevent equipment failure.
Rotating Machinery Monitoring: Bently 9200-01-05-10-00 suitable for real-time vibration monitoring of rotating equipment such as turbines, compressors, and motors.
Installation Procedure
Use the specified torque: For an M10x1 threaded stud (C option 10), the torque is 5.6 N·m (50 in·lb).
Orientation Alignment: Refer to Figure 1 to ensure a 0° vertical installation.
Cable Connection: Since option B does not include a cable (terminal block), an external cable (such as the 9571-NN or 9755-NN series) is required. The maximum cable length is 305 meters, but frequency roll-off should be checked for lengths exceeding this.
