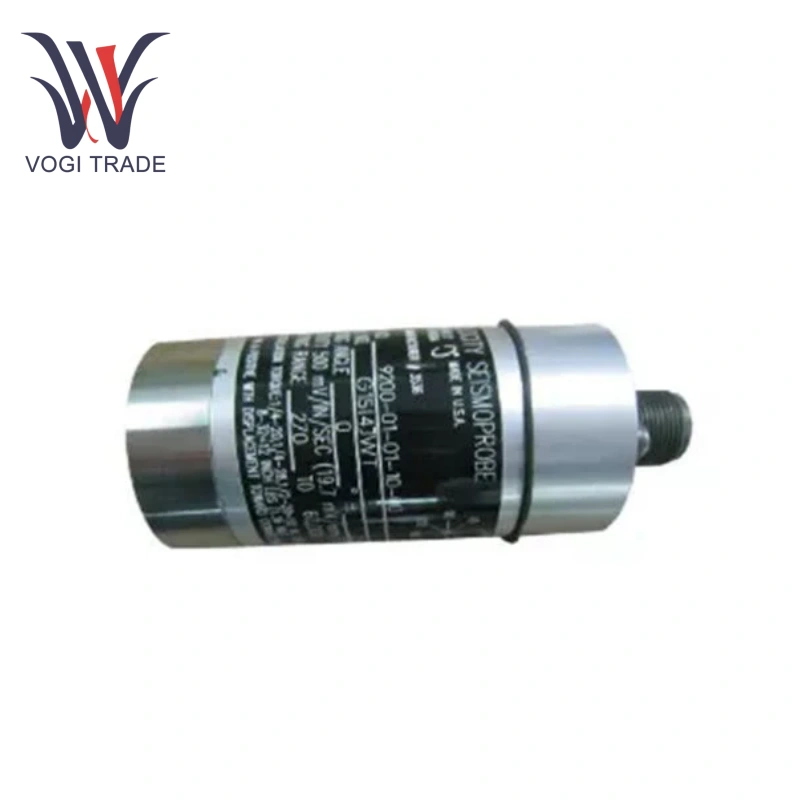

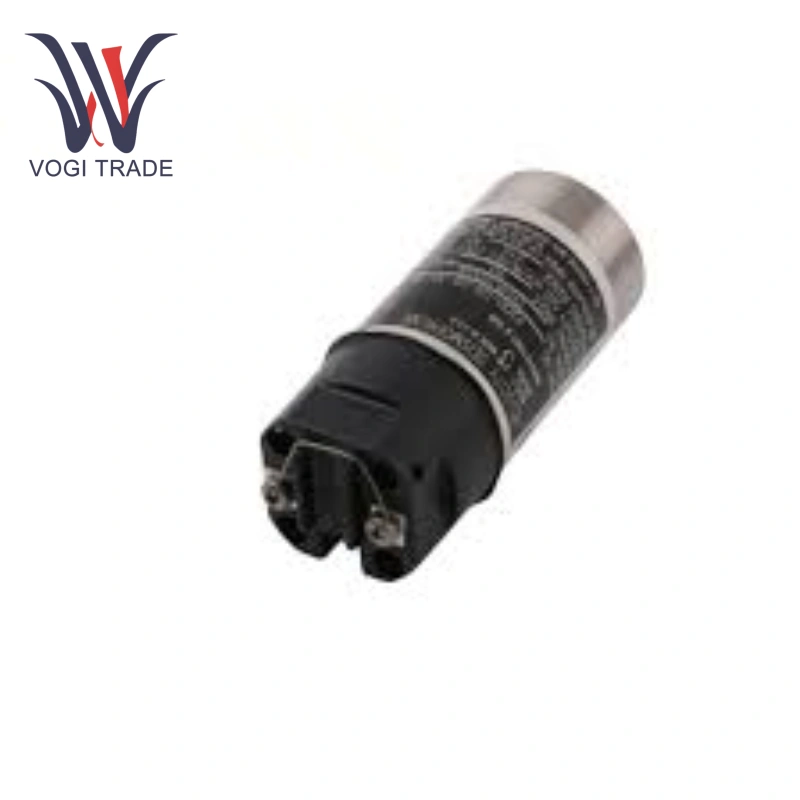

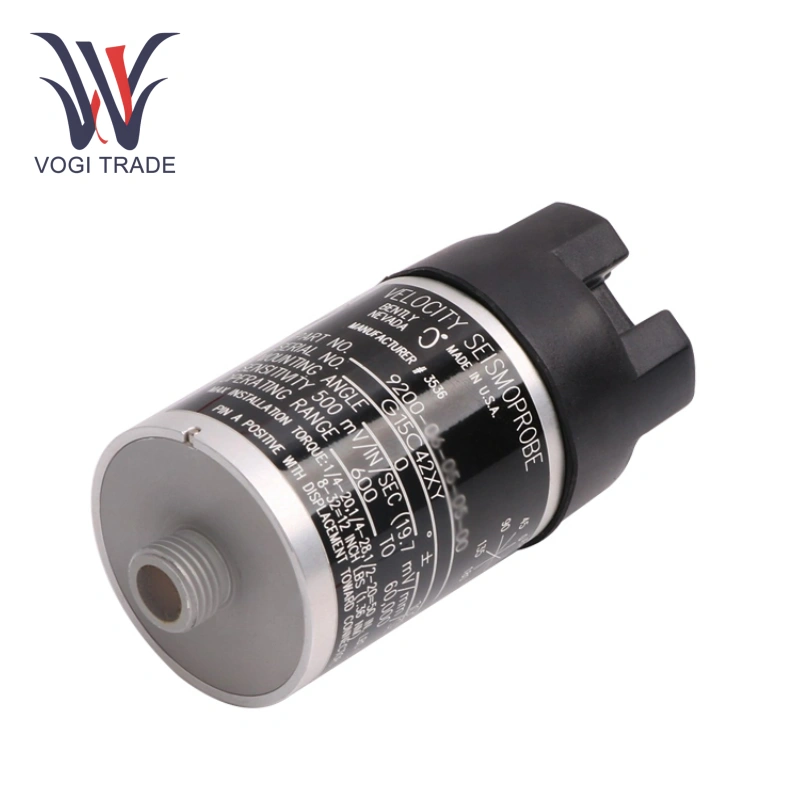

Brand: Bently Nevada Description: Two-Wire Velocity Seismoprobe Transducer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 9200-03-05-10-00 is an advanced two-wire velocity geophone sensor designed for speed and vibration measurement on industrial rotating machinery. It utilizes moving coil technology to output a voltage signal proportional to the sensor's vibration velocity.
|
Manufacture |
Bently Nevada |
|
Model Number |
9200-03-05-10-00 |
|
Ordering Number |
9200-03-05-10-00 |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
85389091 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
17*17*7CM |
|
Weight |
0.9kg |
Model: 9200-03-05-10-00
Product Type: Two-wire Velocity Geophone Sensor
Sensitivity: 20mV/mm/s (500mV/in/s) ±5% at 100Hz (6000cpm) when properly terminated and calibrated for angular positioning; ±5% zero-to-peak for 25mm/s (1in/s) velocity at 100Hz (6000cpm)
Frequency Response: Typical +0 to ±3dB
Operating Temperature Range: -29°C to +121°C
Lead Length: Maximum 305 meters between 9200 and 3300 monitors
Frequency Range: Minimum operating frequency to 10kHz
Mechanical Shock Resistance: Withstands mechanical shock up to 50g peak along the non-sensitive transverse axis
Transverse Sensitivity: 10% of axial sensitivity Output Signal Polarity: When the sensor housing is facing the connector, pin A is positive relative to pin B.
Feature
Accurate Measurement: Bently Nevada 9200-03-05-10-00 with high sensitivity and excellent frequency response accurately capture equipment vibration velocity, providing reliable data for evaluating equipment operating conditions.
Environmentally Resilience: Bently Nevada 9200-03-05-10-00 with excellent corrosion resistance eliminates the need for additional protection and enables stable operation in a variety of harsh industrial environments.
No External Power Required: Bently Nevada 9200-03-05-10-00 use the moving coil technology eliminates the need for an external power source, facilitating portable measurement applications.
Application
Industrial Condition Monitoring: Bently Nevada 9200-03-05-10-00 is suitable for power plants, manufacturing plants, and other locations, analyzing mechanical equipment vibration to prevent equipment failure.
Rotating Machinery Monitoring: Bently Nevada 9200-03-05-10-00 is suitable for real-time vibration monitoring of rotating equipment such as turbines, compressors, and motors.
Installation Procedure
Use the specified torque: For an M10x1 threaded stud (C option 10), the torque is 5.6 N·m (50 in·lb).
Orientation Alignment: Refer to Figure 1 to ensure a 0° vertical installation.
Cable Connection: Since option B does not include a cable (terminal block), an external cable (such as the 9571-NN or 9755-NN series) is required. The maximum cable length is 305 meters, but frequency roll-off should be checked for lengths exceeding this.
