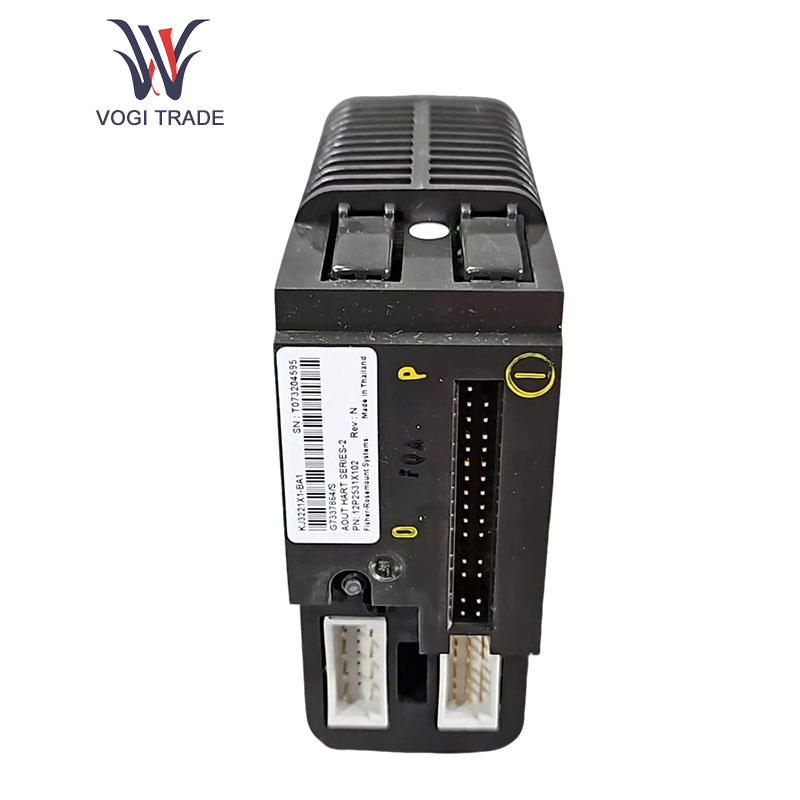

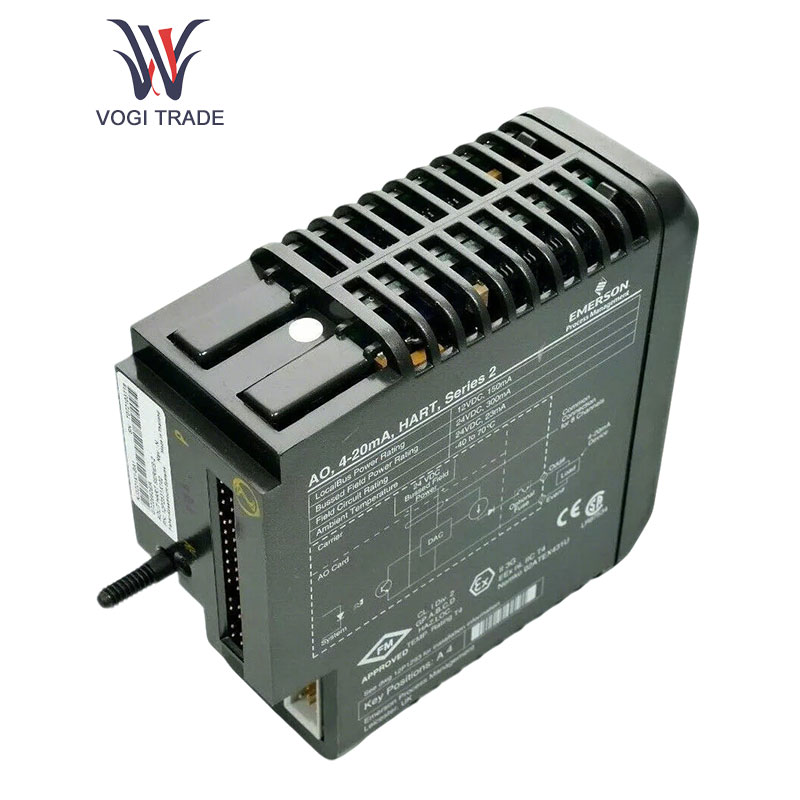

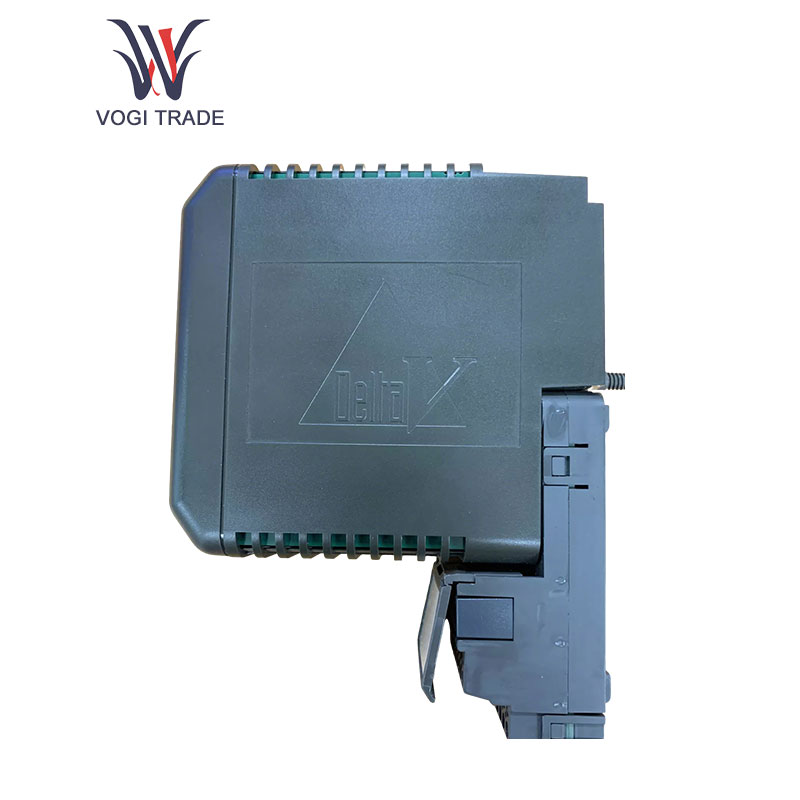

Emerson KJ3221X1-BA1

Details

Introduction of Emerson KJ3221X1-BA1

Emerson KJ3221X1-BA1 quickly obtains a large amount of accurate data that provides strong support for real-time control and optimization of industrial processes

Specification of Emerson KJ3221X1-BA1

Input range: Supports multiple input ranges consisting of 4-20mA, 0-10V, or 0-20V, etc., to meet the signal input requirements of different types of sensors and equipment and thus enhance the functionality and adaptability of the module;

2. Output range: Output ranges are within 0-10mA, 0-20mA, 4-20mA, etc., which may be flexibly configured with regard to the requirements of the actual controlled actuator or equipment to ensure that the controlled equipment receives its command signal;

3. Resolution: The 12-bit resolution will provide more associated analog signal outputs with reduced inaccuracy and better control accuracy of the system;

4. Accuracy: Accuracy can be 0.1% that will ensure the accurate and stable output signal; this ensures that due to well control accuracy requirements, and good equipment will stabilize the controlled equipment operation throughout the industrial processes;

5. Maximum output current: A maximum output current of 20mA meets the driving current requirements for most common analog devices, e.g., small control valves, frequency converters, etc., hence can drive such devices without resorting to add-on amplifications; this simplifies hardware designs for the system.

Key Features of Emerson Emerson KJ3221X1-BA1

Voltage Isolation and Reverse Connection: Emerson KJ3221X1-BA1 features input-output DC 1500V voltage isolation and reverse connection protection that effectively prevents the external voltage interference and reverse connection from damaging the internecine components in the module, therefore enhancing the anti-interference ability and safety of the module and assuring reliable working of the system;

Low Power Consumption: The module power is less than 4W and operates on low power, thus reducing total energy consumption and consequent heating of the module, prolonging its operational lifetime and enhancing system reliability and stability. Its application is preferred wherever energy consumption is amenable to strict requisites.

Relay Alarm Output: Emerson KJ3221X1-BA1 incorporates relay alarm output functions for alarm output of fiber link failure, power failure, etc. The contact capacity is DC 48V, 1A, which can connect to external devices through an industrial terminal interfaces for timely sending out alarm signals, hence reminding the personnel to take remedial action and enhancing the fault alarm capability and safety of the system.

Multi-Channel Output: Such an output channel can administer multiple analog devices in one go and therefore reduce the number of modules in use, culminating into lower system costs and complexities, a higher degree of system integration and scalability, and ultimately enables the users to control and augment the system according to their actual needs.

Applications of Emerson KJ3221X1-BA1

Electronic manufacturing: For patch machine patch speed control, wave soldering machine welding temperature control, and other parameters for the accurate installation and welding quality of electronic components; control of various gas and liquid flows, etc. in electronic production equipment.

Aerospace: Emerson KJ3221X1-BA1 works in the baggage conveying system and boarding bridge control system in the airport to enable the efficient and orderly operations of the airport; during manufacturing processes of the aircraft, it would serve to control the processing and assembly accuracy of aircraft parts to ensure the quality and performance of the aircraft.

Highway traffic: Emerson KJ3221X1-BA1 can be used to control the timing of traffic lights, the variable content of variable information boards, etc. to achieve effective guidance and management of road traffic flow; to control the toll collection system of highways, electronic non-stop toll collection systems, and other equipment to improve the efficiency and convenience of traffic management.

Chemical quality detection: Emerson KJ3221X1-BA1 can use various sensors to monitor in real-time and analyze the composition and concentration of chemical products and to automatically adjust the processing parameters during production in order to ensure that the product quality meets standard requirements.

Automotive manufacturing: In automobile assembly lines, parameters such as the welding current and spraying pressure of robotic arms are controlled to ensure consistent welding and spraying quality; Emerson KJ3221X1-BA1 consists of controlling the conveyor belt speed, clamping force of the fixture, etc. in fully automated and precisely controlled production, which ends up improving production efficacy and product quality.
