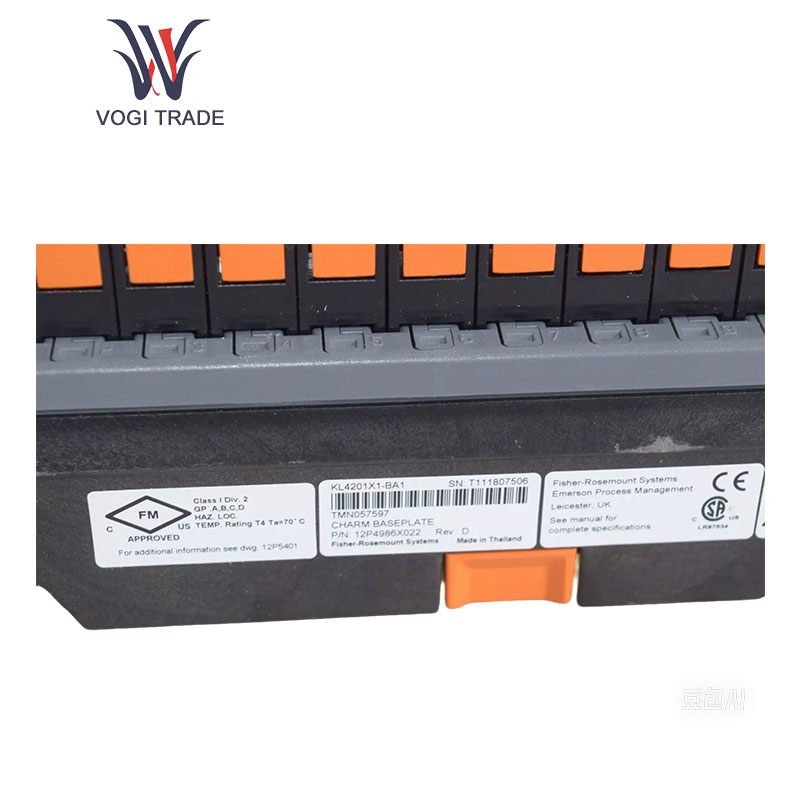

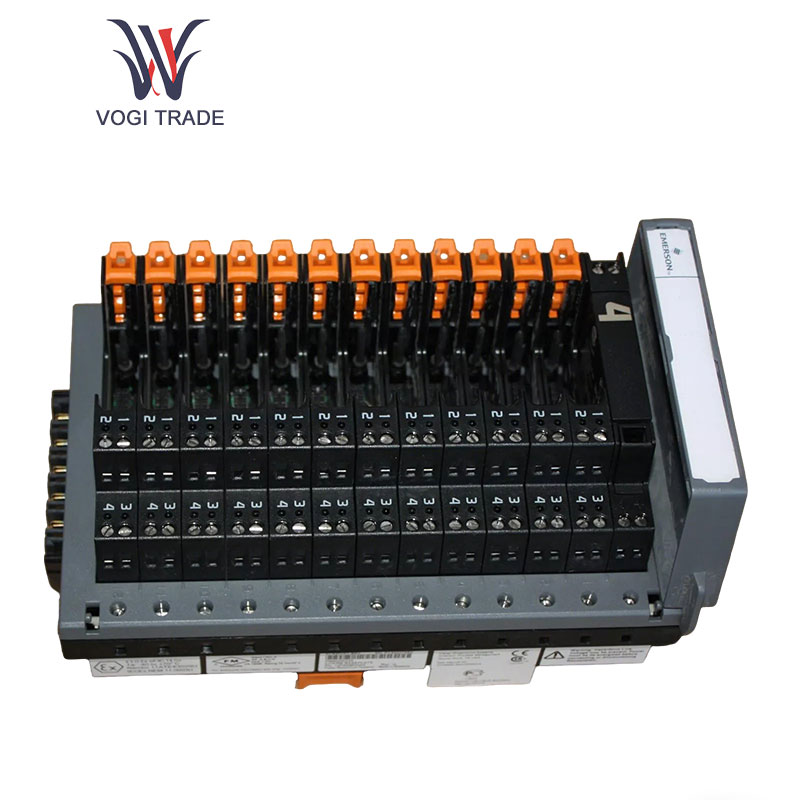

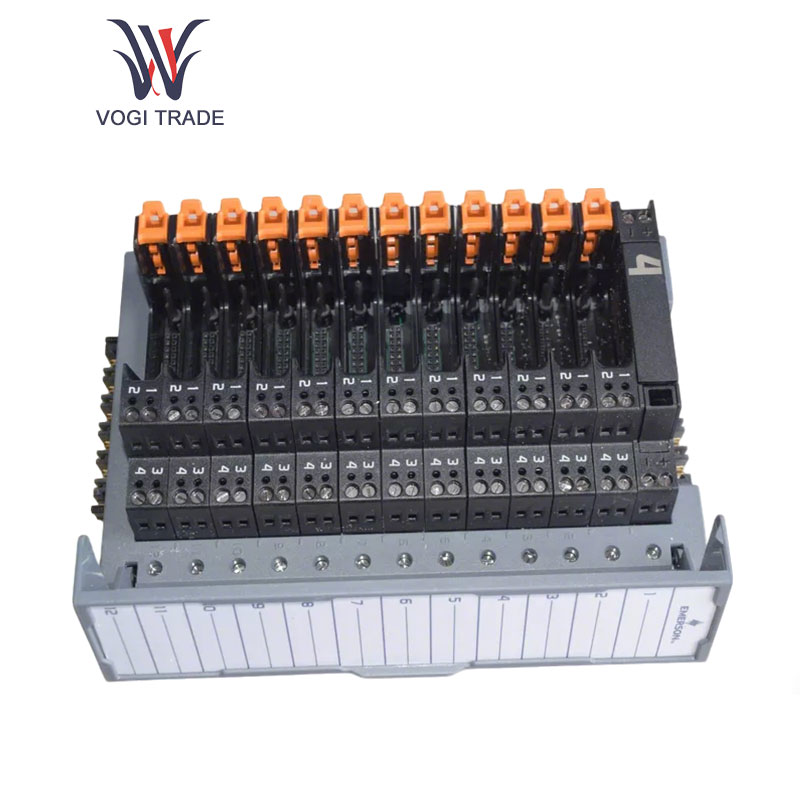

Emerson KL4201X1-BA1

Details

Introduction of Emerson KL4201X1-BA1

Emerson KL4201X1-BA1 has a long calibration period while at the same time tending to reduce the frequency and costs on the maintenance of the equipment.

Specification of Emerson KL4201X1-BA1

Accuracy of Measurement: Temperature measurement can reach an accuracy of ±0.3°C, which can meet the basic needs for temperature measurements in general industrial conditions and provide even more reliable temperature data references. Pressure measurement is ±0.6% full scale, which is more suitable for medium and low pressure industrial systems, and can effectively monitor the changes in pressure to ensure the normal operations of the system. Flow measurement will be around ±1.5% of reading through putting different liquids during industrial oil transmission.

Operating temperature range:  Emerson KL4201X1-BA1 could normally work in the ambient temperature range -5℃ to +45℃ and could adapt to most indoor industrial environments and mild conditions outdoors. Performance will not easily oscillate and fail due to factors of temperature

Voltage & frequency adaptivity:  Supports conventional industrial voltage range 110V - 220V AC and 50Hz/60Hz frequency. Emerson KL4201X1-BA1 could run normally under the common industrial voltage supplies without the necessity of additional voltage wrappers, so that the device could quickly be brought onto the platform of industrial electricity supply reducing installation and commissioning complexity.

Response time does rest at about 12 milliseconds to suit most of the common signals. It is capable of responding to parameter changes in the job environment instantly. These conditions rapidly transmit data to the control system to timely set adjustment on the production process on-time parameters.

Key Features of Emerson KL4201X1-BA1

Functions of Data Acquisition:

1.Emerson KL4201X1-BA1 comprises multi-channel data acquisition whereby it can process various types of analog signals, which are, however, signal voltage of the range 0-5V or 0-10V 4-20mA Current motor control signals, etc. Its function provides for the interconnection to different types of common sensors, with work on accumulating information concerning key physical quantities within an industrial process, such as temperature, pressure, liquid level, flow, etc. From the provision of data development, an industrial automation system becomes operational.

2.Emerson KL4201X1-BA1 Supports certain digital inputs to monitor discrete: the operation state and position status of equipment in industry allows for the assessment and monitoring of overall operational equality of systems.

Functions of Data Processing and Analysis:

1.Built-in data processing capabilities include the preliminary stage processing of data collected with the effect on the purity of data while linearizing converted raw data collected by sensors into actual physical values that will facilitate subsequent analysis and application.

2.Alarm triggers at the preset simple thresholds because the accumulated pressure data exceeded the upper limit, where either multiple logical rules are built into the preset, or each one is judged separately. For example, an alarm signal will alert the operator to pay attention to the operating status of the equipment and prevent possible failures or dangerous situations.

Control output：

Emerson KL4201X1-BA1 has an analog output channel that outputs control signals of 0 to 10 V or 4 to 20 mA, which can be used to control actuators such as regulating valves and frequency converters in the continuous regulation of process parameters such as flow, pressure, and speed. The digital output adopts the form of relay output, which can drive some small and medium power loads, and has good applications in equipment control of automated production lines, simple material transmission control, etc.

Communication function:

Supports common MODBUS RTU communication protocol, makes communication possible with various devices having this protocol interface reaching from PLC controllers to intelligent instruments, to achieve data interaction and sharing, thus establishing local nodes of the industrial automation network for centralized data management and monitoring. To include a serial communication interface that allows a stable short-distance data transmission, this was suitable for communicating with the close-range host computer or other control equipment. Operators could set parameters, read data, and monitor the equipment using the host computer software, thus improving operational convenience and flexibility.

Modular design concept:

Emerson KL4201X1-BA1 follows modular design concepts, while independently designing and packaging functional modules such as, but not limited to data acquiring, processing control output, and even communication itself into standards that link the modules through standard interfaces. Such design allows for an easier assembly and connection, maintenance, and upgrade of equipment and reduces the difficulty time of maintenance required for the equipment.

Energy-saving optimization design:

Energy-saving optimization technology is being applied to circuits. An intelligent power management module in the circuit automatically reduces power when some equipment is under low output or in standby mode, which further helps to lower energy use.

Friendly software operation interface:

Emerson KL4201X1-BA1 will be able to link a friendly interface which will allow for intuitive software operation that may not require any professional programming knowledge for users. The software interface coordinates the functions such as setting parameters for equipment, real-time display of data, historical data inquiry, etc., wherein the operator can immediately grasp the equipment's operational situation and make timely adjustments to the equipment's parameters to adapt to a wide range of industrial production needs.

Applications of Emerson KL4201X1-BA1

Manufacturing industry: The assembly production line of electronic manufacture enterprises enables temperature, pressure, and other state parameters of the equipment to be monitored, along with access to material transmission, along with the mobility to control speed and start-stop. This helps in assembling electronic components in a suitable environment where improved quality and production efficiency may be found.

Auxiliary links in the energy industry: In monitoring auxiliary equipment at small substations, it can monitor transformer oil temperature and pressure, along with the operational status of cooling and air extraction systems. By collecting and analyzing data from them, it will ensure normal operation and thus indirectly raises the reliability of power supply of the substation. In monitoring wellhead equipment in oil and gas extraction, Emerson KL4201X1-BA1 can monitor pressure and temperature parameters at the wellhead to ensure the safe operation of wellhead equipment and take necessary measures in a timely manner in case of any abnormal conditions.

Smart building and facility management: In order to achieve the comfortable control of indoor environment and energy-saving operation in the HVAC system of commercial buildings, Emerson KL4201X1-BA1 can monitor indoor and outdoor temperature and humidity, control the air-conditioning unit operating mode, air flow, and water valve opening.
