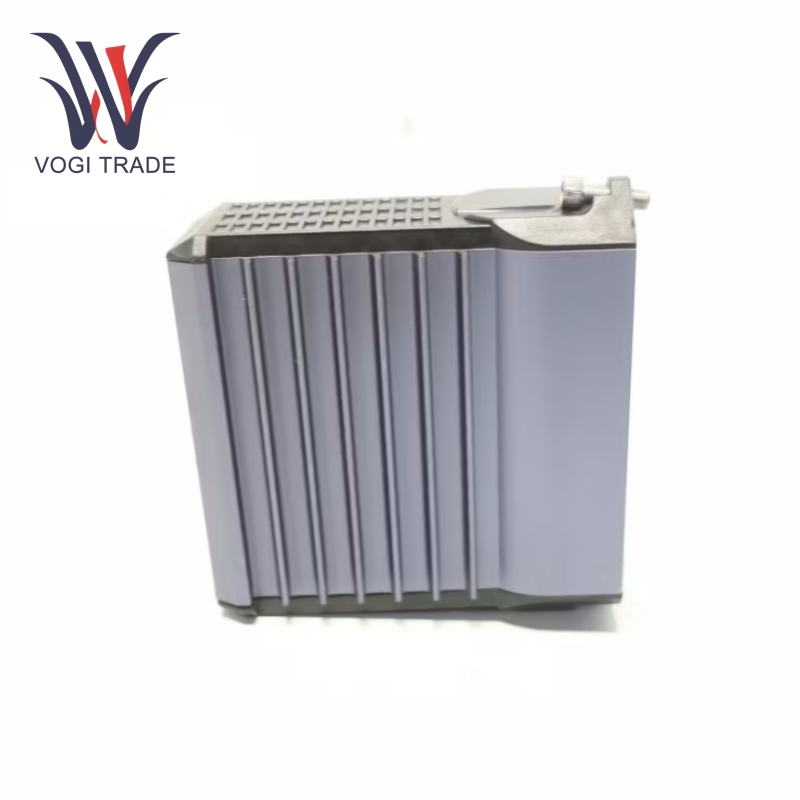

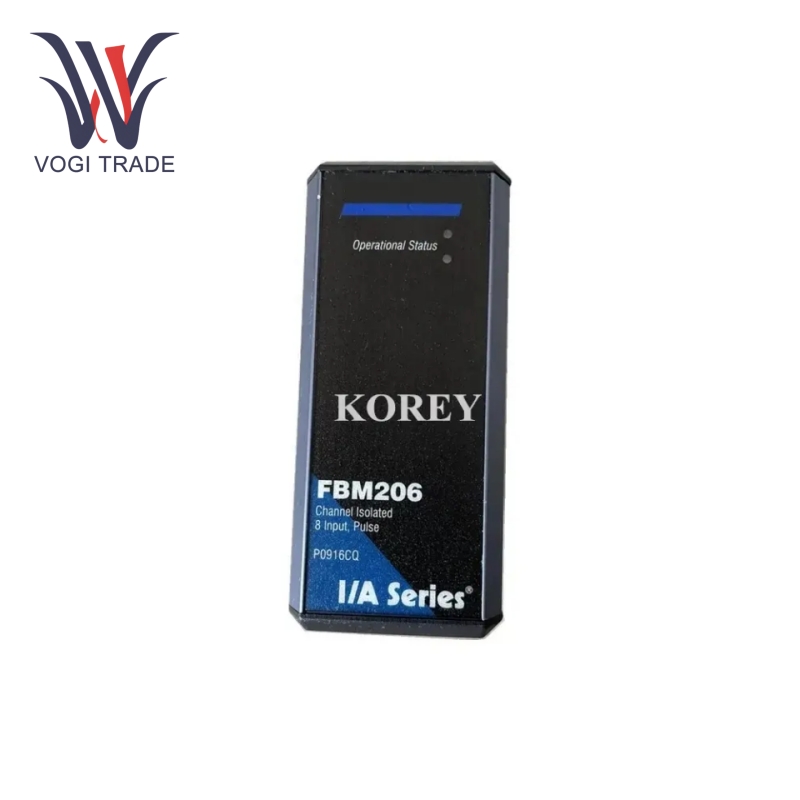

Brand: Foxboro Description: I/a Series Pulse 8 Channel Isolated Input Module Condition: New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment term: T/T Shipping Port: ShenZhen Foxboro FBM206 boasts solid data acquisition and transmittal capabilities, ensuring precise collection of signals from various field devices and their dependable conveyance to the control system. Its versatility allows it to interface smoothly with an array of sensors and actuators, showcasing admirable compatibility.
|
Manufacture |
Foxboro |
|
Model Number |
FBM206 |
|
Ordering Number |
P0916CQ |
|
Catalog |
- |
|
Country Of Origin |
United States |
|
HS CODE |
8517795000 |
|
Dimension |
16*4*15cm |
|
Packing Dimension |
18*6*17cm |
|
Weight |
0.2kg |
Technical Parameter
Number of Input Channels: 8.
Input Voltage Range: 0 to 24V DC.
Input Impedance: 100 kΩ.
Input Frequency: Up to 25 kHz .
Output Range: 4 to 20 mA DC.
Output Impedance: 250 Ω.
Accuracy: ±0.5% of full scale.
Resolution: 0.1% of full scale.
Power Supply: 24V DC, 50mA.
Operating Temperature: -40 to 85 °C.
Humidity: 0 to 95% non-condensing.
Function Features
Signal reception and conversion: Foxboro FBM206 is meant to receive and convert pulse signals into digital or analog signals for practical use in control systems.
Configurable options: Adjust the pulse rate total, resolution, and Meter Scale Factor in Foxboro FBM206 at will for desired results per application details.
Compatibility: Compatible with various input devices of an applicability type, inclusive of eddy current and turbine flow meters, solid-state or electromechanical contacts, and any other kind of device generating pulse output.
Easy integration: Foxboro FBM206 can easily integrate in an existing industrial automation architecture to permit communication and coordination in the integrated system.
Flexibility: The configurable features and numerous input and output channels of Foxboro FBM206 provide for a very flexible means of adaptation to various monitoring and control applications.
Applications
Flow measurement: It is widely used in industrial control systems for measuring flow rates by receiving pulse signals from flow meters like turbine flowmeters, allowing for the process acutely to monitor and control fluid flows in chemical production, water treatment, and oil and gas refining.
Position sensing: Foxboro FBM206 is applied in systems requiring position monitoring. It tracks precisely the location of moving parts or objects in manufacturing processes, such as conveyor belts, robotic arms, etc., when interfaced with position sensors that produce pulses.
Speed Monitoring: It is mainly for measurement of the rotating speed of machines and equipment. Foxboro FBM206 can receive fast-pulse signals coming from devices such as tachometers or encoders for the speed measurement of motors, pumps, turbines, and other rotating machines, ensuring proper operation and enabling control of speed for industrial automation applications.
Industrial automation: Foxboro FBM206 is a critical component in distributed control systems in classic industrial automation settings, imparting extremely reliable input data to process control and automation techniques aimed toward the optimization of the production process and improvement of product quality and production efficiency in industries such as power generation, pharmaceuticals, food and beverage, and automotive manufacturing.
