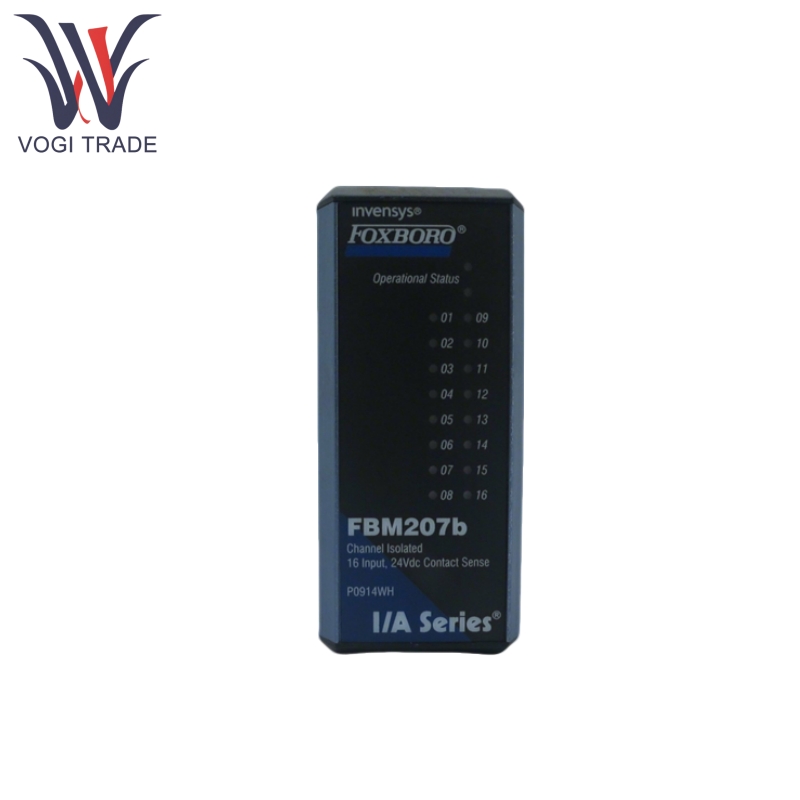

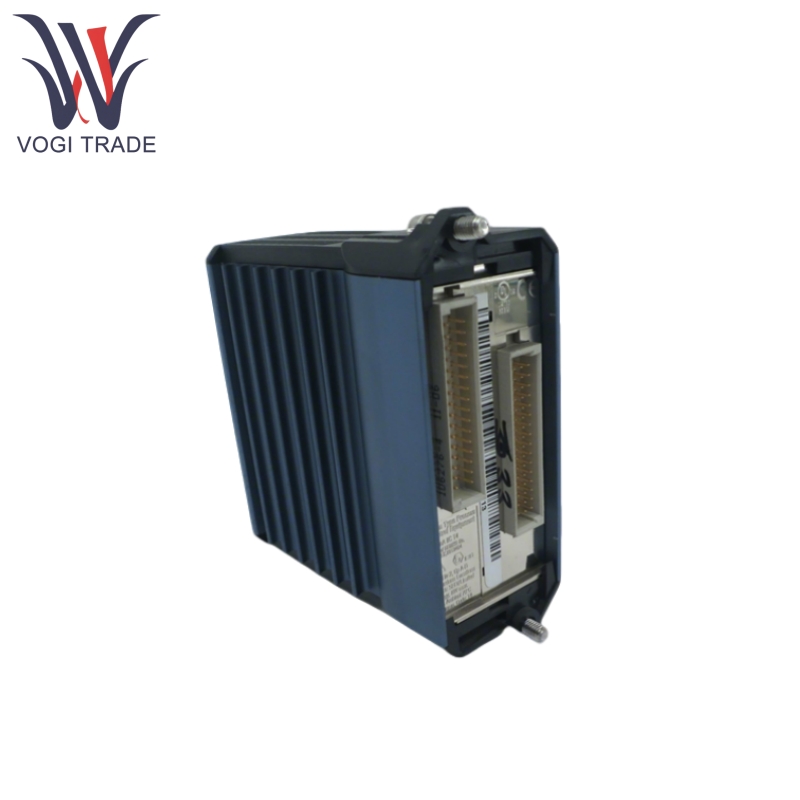

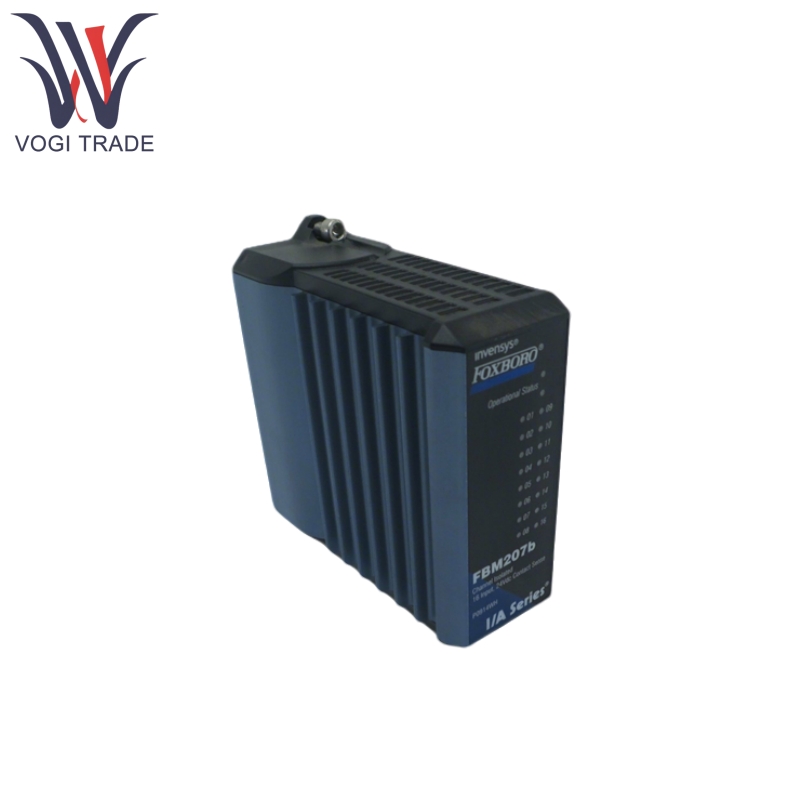

Brand: FOXBORO Description: Voltage Monitor/Contact Sense Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen FOXBORO FBM207B features a compact design and rugged extruded aluminum exterior for physically protecting circuits. Typically used as a key component in industrial automation systems for decentralized control, centralized monitoring and operations management, it can be used in conjunction with other modules in Foxboro's I/A Series® systems.
|
Manufacture |
FOXBORO |
|
Model Number |
FBM207B |
|
Ordering Number |
FBM207B |
|
Catalog |
- |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8538900000 |
|
Dimension |
12*10*6cm |
|
Weight |
0.4kg |
Product Features
FOXBORO FBM207B supports decentralized control for high reliability and easy maintenance, while centralized monitoring and operation management through integrated network communication technology improves system real-time and efficiency.
FOXBORO FBM207B supports a wide range of voltage inputs, including contact sensing from 15 to 60V DC, voltage monitoring or switching inputs from 120V AC/125V DC or 240V AC.
FOXBORO FBM207B monitors and measures voltage values with high accuracy to ensure system voltage stability and safety.
FOXBORO FBM207B has over-voltage protection, under-voltage protection and other safety protection functions to ensure the safety and stability of the system.
FOXBORO FBM207B supports digital tube display, LED indicator and other display modes, which is convenient for users to view the voltage value and equipment status intuitively.
FOXBORO FBM207B has a simple and clear installation and configuration interface, users can easily complete the installation and setup of the equipment.
Product Using Principle
Each channel of the FOXBORO FBM207B module accepts a 2-wire input from a DC voltage source or a pair of contacts or solid state switches. The associated termination assembly supports discrete input signals of varying voltages, and for voltages above 60V DC, the termination assembly has additional signal conditioning hardware to provide voltage attenuation and optical isolation. The module performs signal conversion to interface electrical input signals from field sensors to the redundant module fieldbus, and also executes programs such as discrete inputs, ladder logic, pulse counting, and event sequences with configurable input filtering times.
Product Parameter
The following detail is for FOXBORO FBM207B Voltage Monitor/Contact Sense Input Module.
Input channels: 16 isolated and independent channels.
Accuracy: No pulse loss for pulse counting at pulse rates from 0 to 250Hz.
Filtering / debounce time: Configurable, with options including no filtering, 4ms, 8ms, 16ms, or 32ms.
Storage conditions: Temperature ranges from -40℃ to +70℃, relative humidity ranges from 5% to 95% (non-condensing).
Communication interface: Communicates with relevant Fieldbus Communication Modules (FCM) or Field Control Processors (FCP) via a redundant 2Mbps module fieldbus.
Associated TA support discrete input: 24 VDC Contact Sense.
