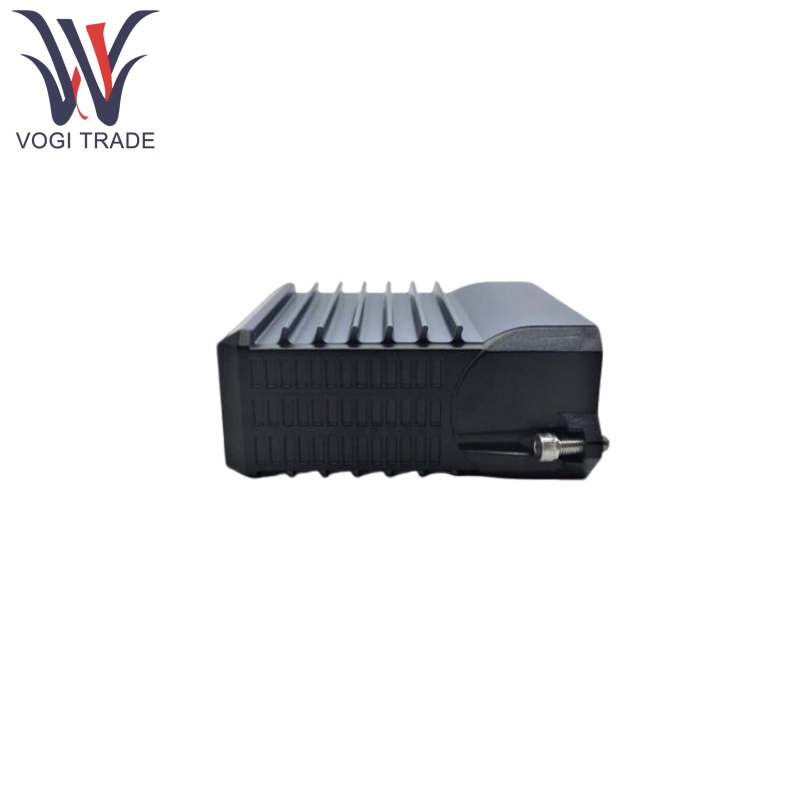

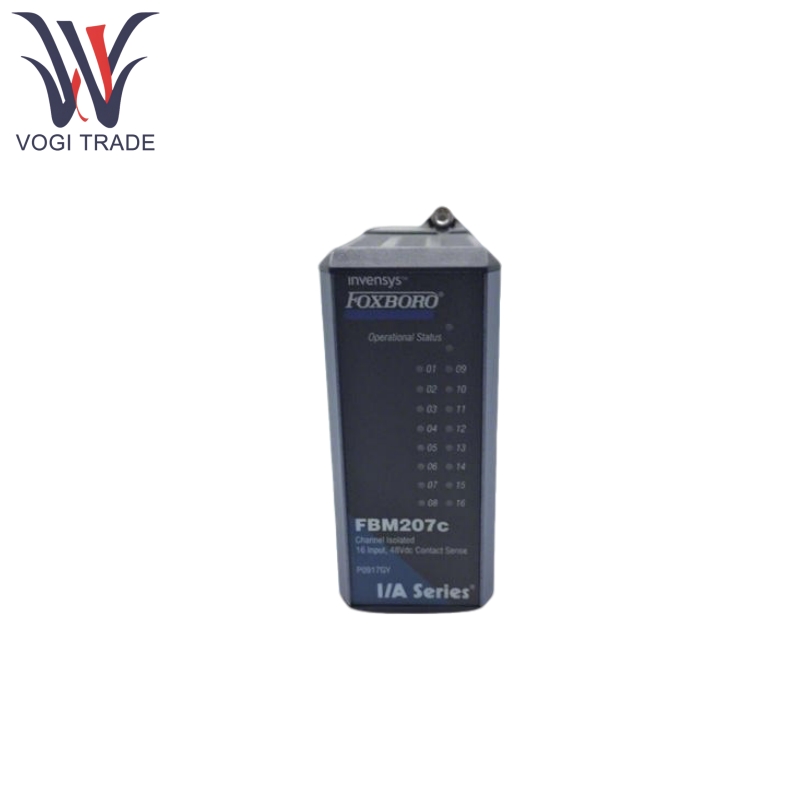

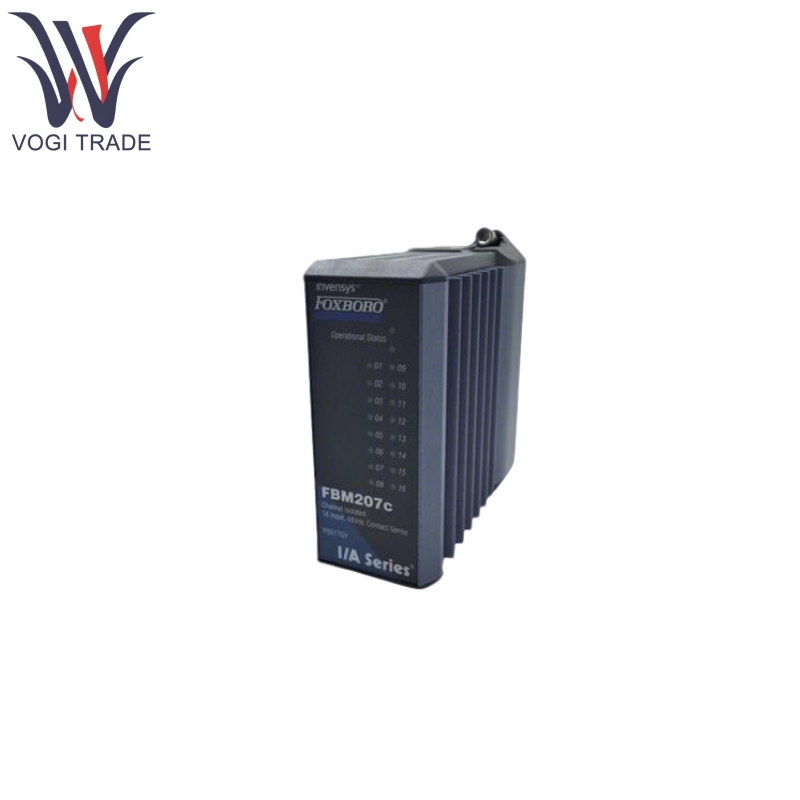

Brand: FOXBORO Description: Voltage Monitor/Contact Sense Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: Shenzhen FOXBORO FBM207C is mainly used to monitor voltage signals or contact status and convert them into digital signals for processing by the host computer. It supports a wide range of input types and communication protocols, is suitable for harsh industrial environments, and can be seamlessly integrated with distributed control systems.
|
Manufacture |
FOXBORO |
|
Model Number |
FBM207C |
|
Ordering Number |
FBM207C |
|
Catalog |
- |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8538900000 |
|
Dimension |
12*10*6cm |
|
Weight |
0.4kg |
Product Features
FOXBORO FBM207C adopts current isolation design for all 16 channels, and the isolation voltage reaches 2500V rms, which effectively prevents electrical noise and ground faults.
FOXBORO FBM207C contact sense input supports 15-60V DC (48V DC for FBM207C) and supports 120V AC/125V DC, 240V AC.
FOXBORO FBM207C executes discrete input, ladder logic, pulse counting, and event sequence programs, with configurable input filtering time (0.1-255ms), and supports fail-safe configurations and fallback strategies.
FOXBORO FBM207C can be installed as a redundant pair with standard control blocks to manage redundancy and improve system reliability.
FOXBORO FBM207C supports Foundation Fieldbus H1 (31.25kbit/s), Modbus RTU, DeviceNet, etc. and is compatible with mainstream industrial control systems.
FOXBORO FBM207C is equipped with LED indicators to show power status, communication status and channel faults, and supports online diagnosis and remote configuration.
Product Using Principle
FOXBORO FBM207C receives field signals, such as contact closures or voltage changes, via the terminal assembly. After the signals are isolated and filtered, they are converted to digital signals by an analog-to-digital converter and transmitted to the controller via fieldbus protocol. The modules have a built-in microprocessor to handle the signal logic and support local ladder logic operations, reducing dependence on the host controller.
Product Parameter
The following detail is for FOXBORO FBM207C Voltage Monitor/Contact Sense Input Module.
Input Current: 2mA per channel (typical value)
Isolation Characteristics: Isolation voltage between channels and between channels and ground is 2500V rms, compliant with ISA S71.04 G3 standard, suitable for harsh environments
Operating Temperature: -40℃ to 85℃
Operating Humidity: 0-95% (non-condensing)
Power Supply Requirements: 24V DC (±10%). Maximum power consumption is 8.5W with redundant power supply, and 3W without redundancy.
Protection Rating: IP65, dustproof and waterproof.
Data Transmission Rate: 31.25kbit/s for Foundation Fieldbus H1, 19.2kbit/s and below supported for Modbus RTU
Associated TA support discrete input: 48 VDC Contact Sense
