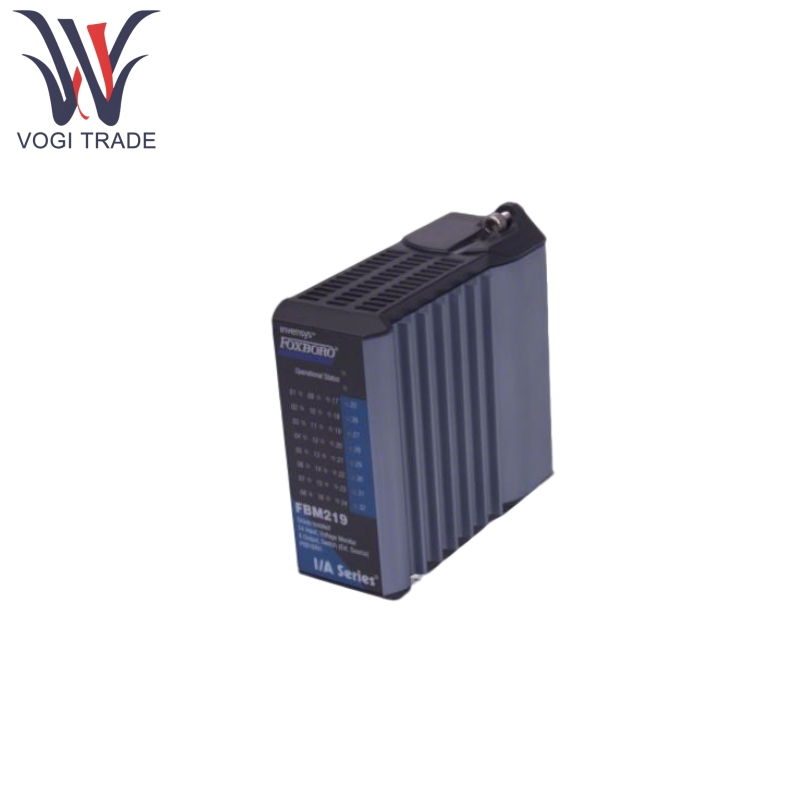

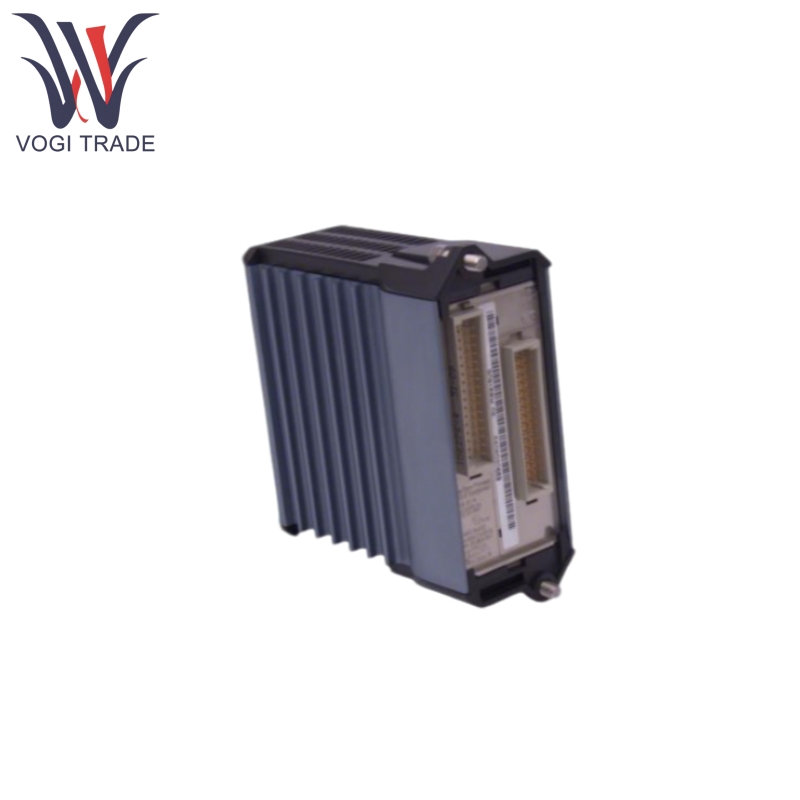

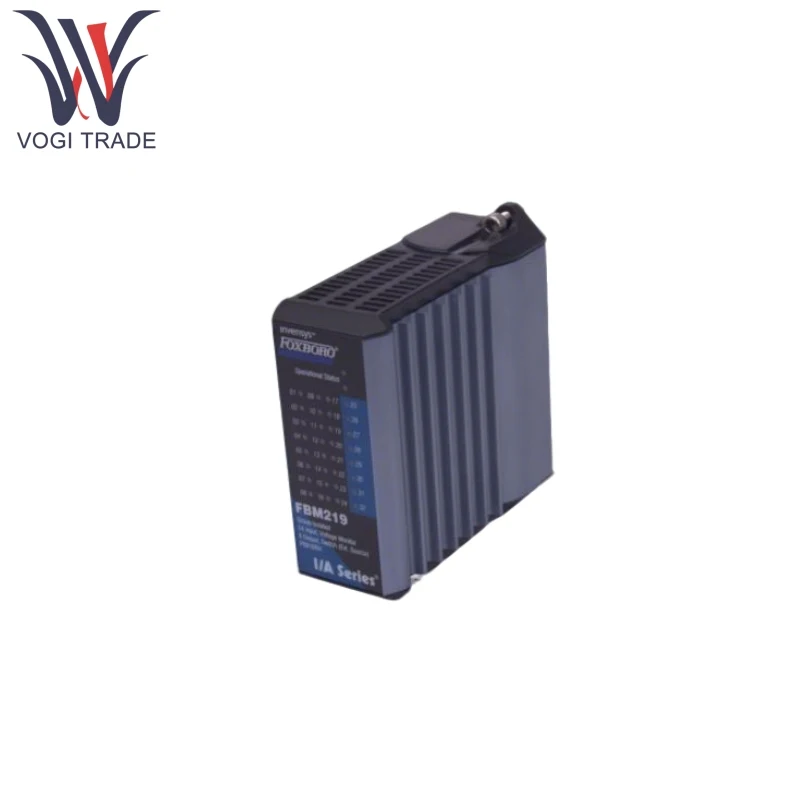

Brand: FOXBORO Description: Discrete I/O Interface Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen FOXBORO FBM219 is mainly used for the acquisition and control of discrete signals in industrial field. Its core function is to connect the field equipment through the terminal components to realize the processing of 24 discrete input signals and 8 discrete output signals, which can replace the function of 100 series FBM I/O sub-systems, and support the upgrading of scenarios used in conjunction with extended FBMs.
|
Manufacture |
FOXBORO |
|
Model Number |
FBM219 |
|
Ordering Number |
FBM219 |
|
Catalog |
- |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8538900000 |
|
Dimension |
12*12*6cm |
|
Weight |
0.4kg |
Product Features
FOXBORO FBM219 has 24 discrete inputs and 8 discrete outputs and supports group isolation and supports multi-voltage signals including 15-60V dc, 120V ac/125V dc, 240V ac.
FOXBORO FBM219 is ruggedized for Class G3 (harsh) environments as defined by the ISA S71.04 standard, and is vibration resistant (0.75m/S², 5-500Hz).
FOXBORO FBM219 is configurable in terms of input filter time (no filter, 4/8/16/32ms), Fail Safe mode, and output type (continuous/instantaneous).

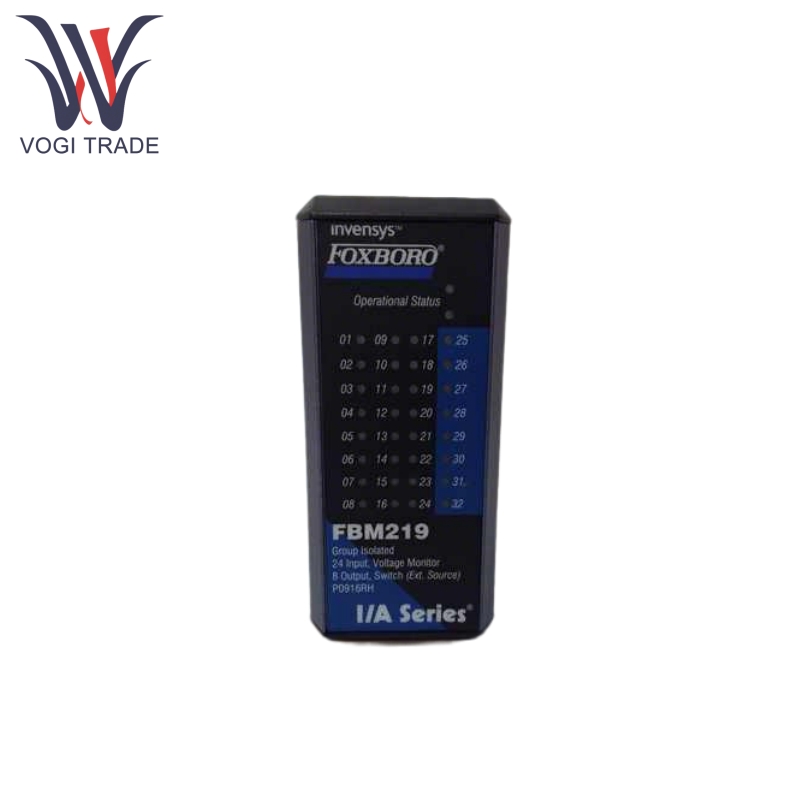

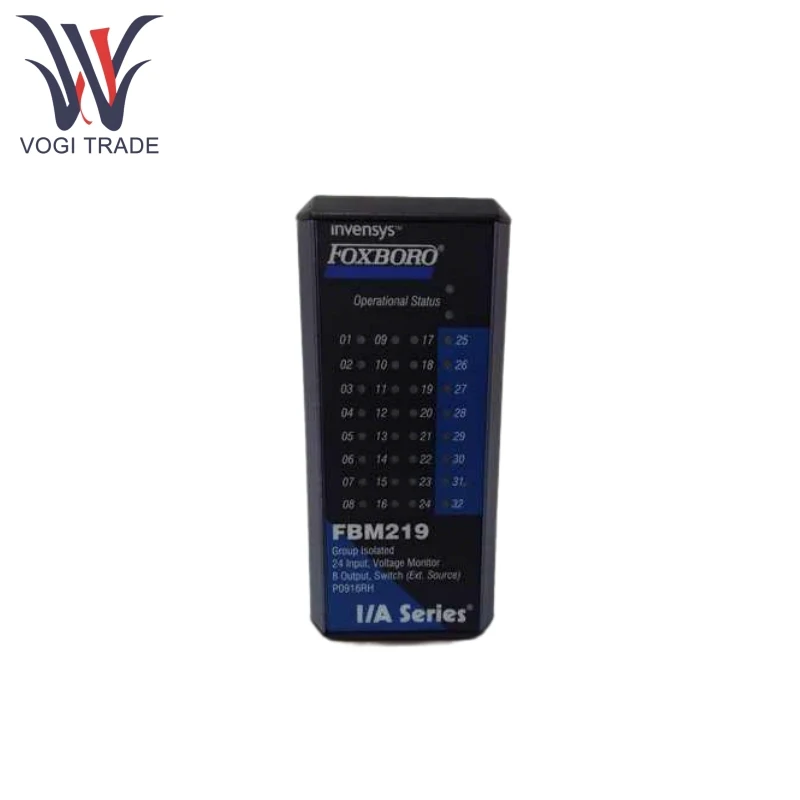

FOXBORO FBM219 has an integrated LED indicator on the front to show the module's operating status and the discrete status of each input/output point.
FOXBORO FBM219 can be removed/replaced without disconnecting field device wiring, power or communication cables for easy maintenance.
FOXBORO FBM219 communicates with FCM (Fieldbus Communications Module) or FCP (Control Processor) via a 2Mbps redundant fieldbus and supports automatic A/B path switching to ensure communication continuity.
The input/output circuits are protected by current limiting, TA integrated fusing, optical isolation, etc. to prevent overcurrent or signal interference.
Product Using Principle
Field I/O signals are connected to FOXBORO FBM219 through a DIN rail-mounted TA, which is responsible for signal conditioning, isolation, and protection.
FOXBORO FBM219 executes discrete I/O or ladder logic programs, processes signals according to configured parameters such as filtering time and fail-safe mode, and displays the status in real time through LEDs.
FOXBORO FBM219 communicates with the FCM/FCP via a 2Mbps redundant fieldbus, and the redundant design ensures that communication is not interrupted in the event of a single-path failure.
The redundant design ensures uninterrupted communication in the event of a single path failure. The hot-swappable design allows online replacement of modules without interrupting the operation of the field equipment, the TA is connected to the module by a dedicated cable (maximum 30m), supporting remote installation.
Product Parameter
The following detail is for FOXBORO FBM219 Discrete I/O Interface Module.
On-State Voltage: 15-30V dc
Off-State Voltage: 0-5V dc
Typical Current: Approximately 2.2mA at 30V dc
Source Resistance Limits: Maximum 1kΩ when on-state (at 15V dc), minimum 100kΩ when off-state (at 30V dc)
Maximum Applied Voltage: 60V dc
Maximum Load Current: 0.25A
Off-State Leakage Current: Maximum 0.25mA
Inductive Load Protection: An external protective diode or metal oxide varistor (MOV) is required
Input Voltage: 24V dc (redundant design), allowing a fluctuation of +5% (upper limit) / -10% (lower limit)
Maximum Power Consumption: 5W (at 24V dc)
Maximum Heat Dissipation: 6W (at 24V dc)
Loop Protection: Input current is limited to 2.5mA
Group Isolation: The input/output groups and ground, as well as between input and output, can withstand 600V ac for 1 minute
Channel-Level Isolation (for specific TAs such as RH917LL/RH917LP/RH917LS): Each channel can withstand 600V ac for 1 minute from other channels and ground.
