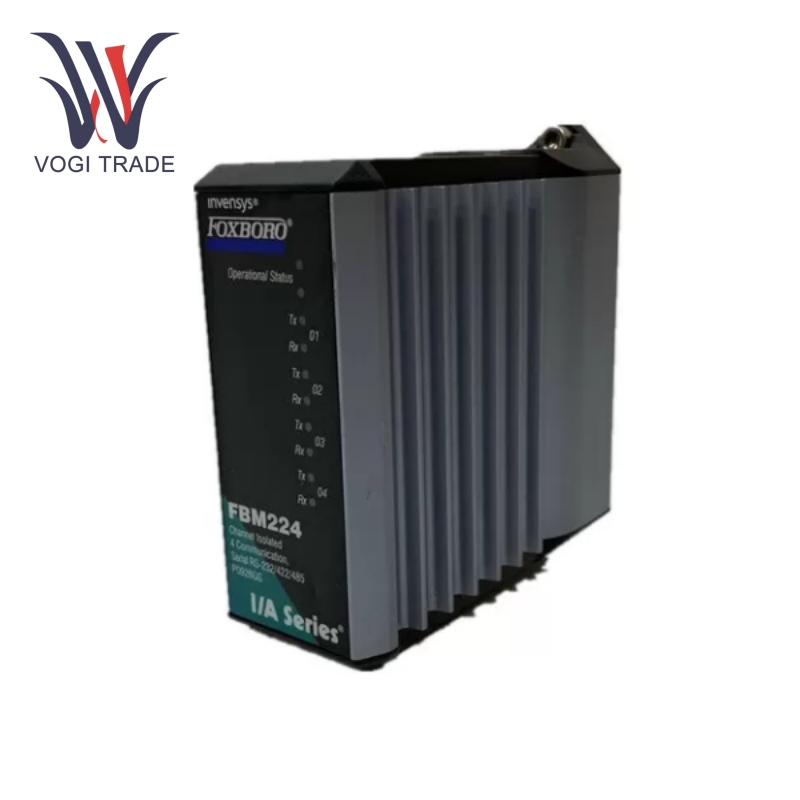

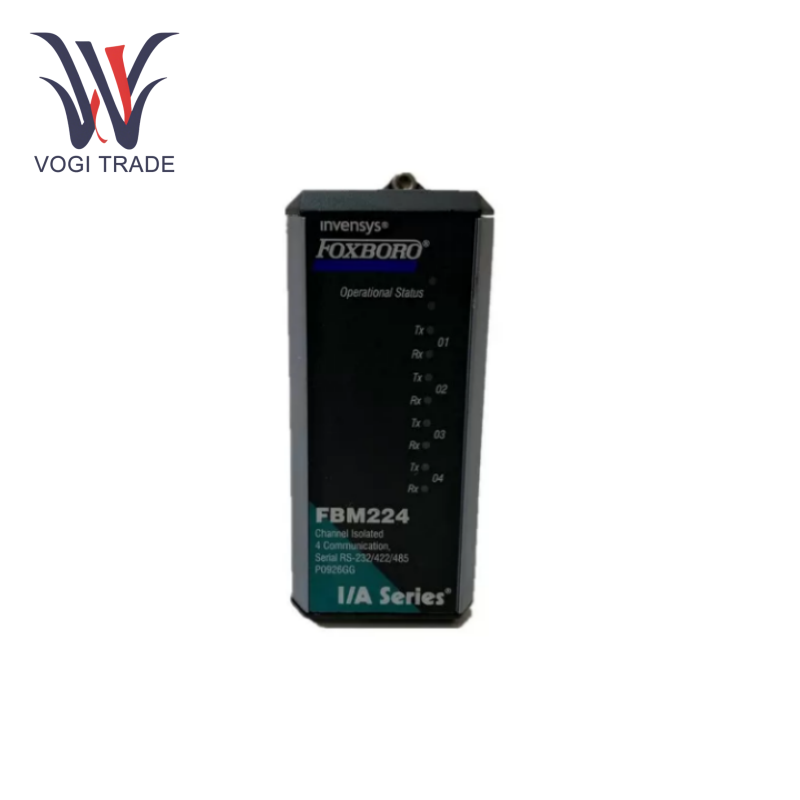

Foxboro FBM224

Technical Parameter

SDRAM: 16 MB.

Flash: 32 MB.

Redundant Voltage: 24V DC (typical value).

Per Non Fault-Tolerant Module: Maximum 8.5 W.

Operating Temperature: 0 to +60 degrees

Function Features

Isolated Inputs: Foxboro FBM224 possesses eight isolated input channels allowing the connection of sensors or field devices with proven electrical insulation between them, which helps avoid interference and maintain the integrity of signal acquisition.

Signal Conditioning and Conversion: It carries out signal conditioning, e.g., amplification, filtering, and analog-to-digital conversion of incoming signals. All signal conversions are performed in a way that returns the original data in digital format, so it may process signal units above it.

Communication Capabilities: The module houses communication links, normally supporting the interruption of FoxCom or other common industrial communication protocols, such as HART. This enables Foxboro FBM224 to communicate with other control systems such as controllers or other I/O modules, allowing broad flexibility and integration into the whole automation infrastructure.

Configuration and Calibration: The software tools supplied by it allow effortless configuration and calibration. Users can easily set parameters such as input ranges, alarm thresholds, and signal conversion factors as they suit the application.

Diagnostic and Monitoring Functions: Built with diagnostic capabilities, Foxboro FBM224 can monitor the continual working status of the input channels, power supply, and communication links. It can identify trouble spots and correspondingly provide alarm signals or diagnostic information to the operator. This makes identifying and rectifying problems easier and minimizes downtime while improving reliability.

Precision and Accuracy: With signal processing and calibration good enough for high precision, Foxboro FBM224 measures the input signals with results in really tight tolerances. The user can use this for its application in precise control and monitoring within process industries since deviations in process variables by an ounce here or there would be too critical in affecting product quality and production efficiency.

Applications

Industrial application: It is used for monitoring and controlling parameters such as pH, chemical concentration, and reaction temperature in chemical reactors, storage vessels, and transport pipelines. Foxboro FBM224 is a stable unit for most chemical sensors and provides accurate file readings in chemical process automation.

Pharmaceutical Industry: Monitoring of vital parameters, such as concentration and pressure of air and clean rooms, as well as flow and level of raw material and finished products on production lines, can be performed by Foxboro FBM224. This aids in assuring the quality of pharmaceutical products and their integrity with the introduction of many therapies, which will assure strict compliance with rigorous regulatory requirements.

Water and Wastewater Treatment Plants: In treatment systems using Foxboro FBM224, the flow rate of water is monitored alongside tank levels and levels of chemical dosing. In wastewater treatment plants, it can measure parameters relating to the treatment process, including dissolved oxygen concentration, pH, and sludge level. This enables the efficient running and controlling of the treatment process, ensuring that treated water is of good quality and that it complies with environmental laws.
