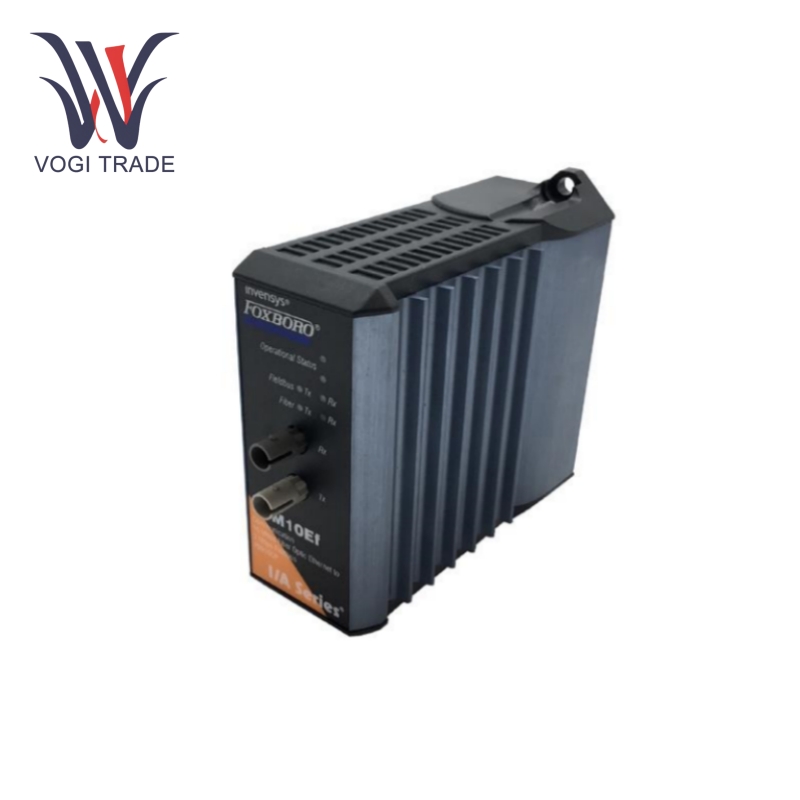

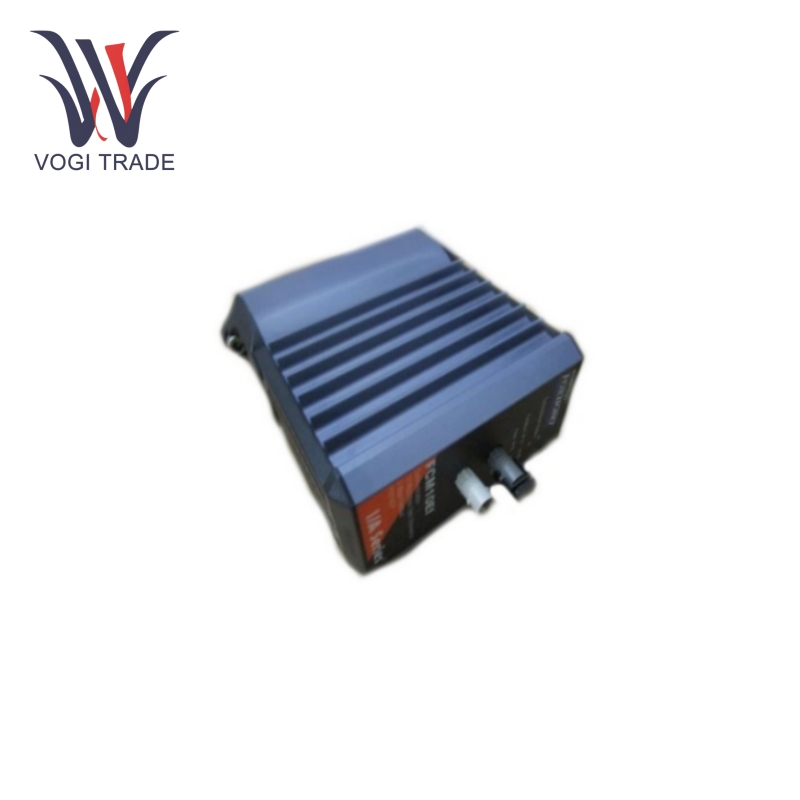

Brand: Foxboro Description: Communication module Condition: New Certificate:COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment term: T/T Shipping Port: ShenZhen Foxboro FCM10EF is a powerful and versatile industrial control product with reliable working parameters and powerful control and data processing functions.
Manufacture |
Foxboro |
Model Number |
FCM10EF |
Ordering Number |
P0916CP |
Catalog |
- |
Country Of Origin |
United States |
HS CODE |
8517795000 |
Dimension |
15*4*15cm |
Packing Dimension |
18*6*18cm |
Weight |
0.2kg |
Power Supply: Its operation is usually guaranteed by a specific voltage range, such as 24VDC, which provides a stable power input to its internal circuitry for continuous operation. Power consumption is optimized and is within an efficient horizontal concentrated operating range to reduce its heat dissipation and overall energy consumption.
Inputs and Outputs: The Foxboro FCM10EF has multiple analog and digital I/O channels. When it comes to analog inputs, various signal types are supported: 4 -20mA current signals or 0 -10V voltage signals - the number of these signals can be anywhere between 8 and 16 in order to receive signals from as many sensor points as possible almost simultaneously. Digital input channels accept signals from switches, relays, etc., so the number can also be more or less traced back to around 8 to 16. Analog output channels provide convenient outputs for actuators, with typical ranges of 4 - 20mA or 0 - 10V and channels ranging from 4 to 8. Digital output channels can perform the actuation of solenoid valves or indicator lights, and there may be 4 to 8 of them. Processing time: It is capable of executing complex control algorithms and data processing tasks in a shorter time. The cycle time for processing a set of I/O data and control algorithms can be reduced to a few milliseconds, ensuring a fast response to changes in industrial processes.
Communication protocols: Supported communication protocols include Ethernet/IP, Profibus and Modbus. This allows seamless communication with all other devices in the industrial network, such as PLCs, HMIs and SCADA systems. The communication speed depends on the protocol and to a certain extent on the network configuration, but the flexibility can generally meet the requirements of real-time data exchange in industrial applications.
Product application
Control function: Foxboro FCM10EF has powerful control capabilities. It executes a variety of control algorithms, and PID (proportional-integral-derivative) control operations are widely used to control process variables such as temperature, pressure and flow. More complex model-based control strategies can also be applied to accurately control and optimize industrial processes. For example, in a chemical production process, it can control the flow rate of the input reactants based on instantaneous feedback to maintain the specified reaction conditions.
Data Acquisition and Monitoring: It continuously acquires data from connected sensors and instruments. Real-time monitoring of processed data gives operators a clear understanding of the current status of any industrial process. Setting alarms and notifications for specific conditions, for example, if a process variable exceeds a predetermined threshold, helps to avoid possible failures and ensure the safety and reliability of the process.
Configuration and Programming: The product is very flexible in terms of configuration and programming; dedicated software tools are available, with which engineers can configure I/O channels and set control parameters and custom control logic. The programming environment is user-friendly and control strategies can be easily changed or optimized. This means that as industrial processes evolve or new requirements arise, the Foxboro FCM10EF can be reconfigured without long downtimes.
Application Range
Chemical Industry: Used to control and monitor a wide range of chemical reactions under industrial conditions in chemical plants. The Foxboro FCM10EF control system can regulate the flow of a variety of chemicals, control temperature and pressure in reactors, while ensuring the chemical quality and safety of the production process. A typical example is the industrial production of fertilizers or "pharmaceuticals", which is responsible for maintaining the precise conditions required for the synthesis of the final product.
Power Generation: The Foxboro FCM10EF is used in power plants, whether thermal or renewable, to control the generation and distribution of electricity. It monitors the performance of generators, turbines, or other power generation equipment and changes operating parameters to maximize power output and grid connection stability.
Manufacturing: In the manufacturing process of automotive manufacturing, food and beverage production, and electronics manufacturing, it controls operations in production equipment. It regulates conveyor speed and position, temperature and pressure of processing equipment, and ensures product consistency and quality.
