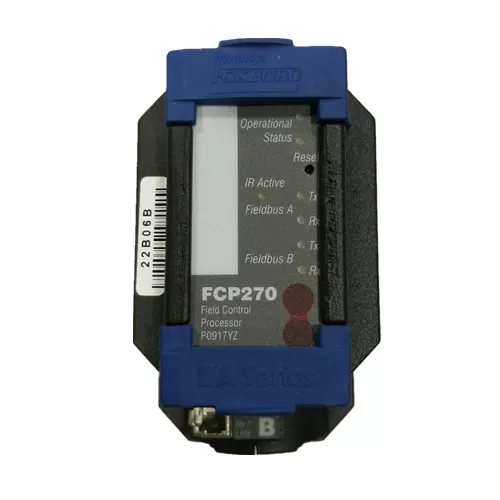

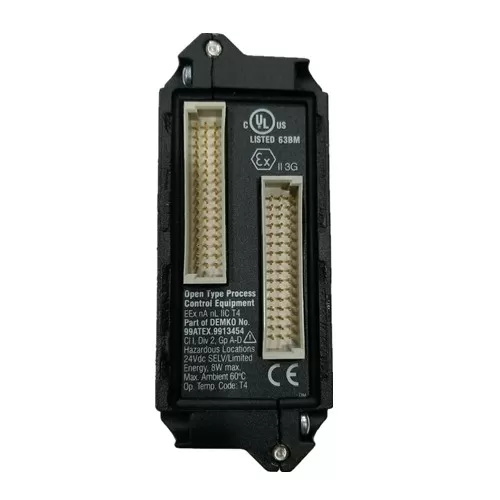

Foxboro FCP270

Operating Parameters

Power Supply: The operating power supply of Foxboro FCP270 usually consists of dual redundant form. These systems are usually expected to work in the operating voltage range of around 18 - 32 VDC. This will allow a fairly high input power stability even in minor power failures. Therefore, this power supply redundancy design improves the reliability of the equipment and eliminates the need to stop operation when any one power supply is off.

Operating Temperature: It has a very wide operating temperature range, from -20°C to 60°C. Such a temperature range ensures that it is easy to deploy in a variety of industrial applications, including cold storage facilities and high-temperature industrial process areas.

Processor and Storage: With a powerful processor, it can perform the most complex control algorithms and their data processing tasks. It has enough memory to save a large amount of configuration data, historical data and program code. For example, there will be several megabytes of flash memory for program storage, as well as some RAM, depending on the speed of process data processing and caching.

Product Features

Control Function: Foxboro FCP270 is an active controller for industrial processes. It can perform a variety of control strategies, including PID (proportional-integral-derivative) control. It takes real-time input signals from sensors, compares them to set points, and calculates output signals for actuators. For example, the flow rate of reactants and the temperature of reactors can be precisely controlled to maintain the quality and safety of chemical reactions in chemical production processes.

Data Acquisition and Monitoring: It has multi-purpose input channels, both analog and digital types. The analog input channels have several types of signals, such as 4 - 20 mA current signals or 0 - 10 V voltage signals from sensors such as temperature, pressure, or flow sensors. Digital input channels take on/off status functions from switches and relays. It then processes this data immediately while providing the operator with a visual screen display of the status of the industrial process.

Communication Capabilities: The Foxboro FCP270 supports a variety of communication protocols, including Ethernet/IP, Profibus, and Modbus. Its operation is oriented toward communicating with other devices on an industrial network, thereby communicating with other controllers, human-machine interfaces (HMIs), and supervisory control and data acquisition (SCADA) systems. For example, it can forward process data to a SCADA system for centralized monitoring and management, while also receiving control commands from an HMI for operator intervention.

Redundancy and Fault Tolerance: Fault tolerance is reflected in part in its dual redundant power supplies. In some configurations, it may have redundant communication channels and dual redundant processors. If a component fails, the backup unit immediately starts running to ensure the continuity of the industrial process, thereby minimizing downtime and reducing product losses.

Application Scope

Process Industry: Foxboro FCP270 is widely used in the chemical and petrochemical industries to control and monitor complex chemical reactions, distillation processes, and pipeline transportation systems. For example, in a refinery, the operational management of the unit must include a crude distillation tower, a catalytic cracking unit, and a product blending tank.

Power Generation: In a power plant, the Foxboro FCP270 can be used to control a boiler-turbine-generator system. Here, it checks parameters such as steam pressure, temperature, and turbine speed, and adjusts control signals to ensure the stability of power generation and grid interconnection. It also assists in the protection and fault diagnosis of power generation equipment.

Manufacturing: In manufacturing industries such as automobiles and electronics, Foxboro FCP270 is used for production line control. It can perform the operations of robotic arms, conveyors, and machine tools. For example, in an automobile assembly line, it coordinates the welding, painting, and assembly operations of robots to ensure high production efficiency and product quality.
