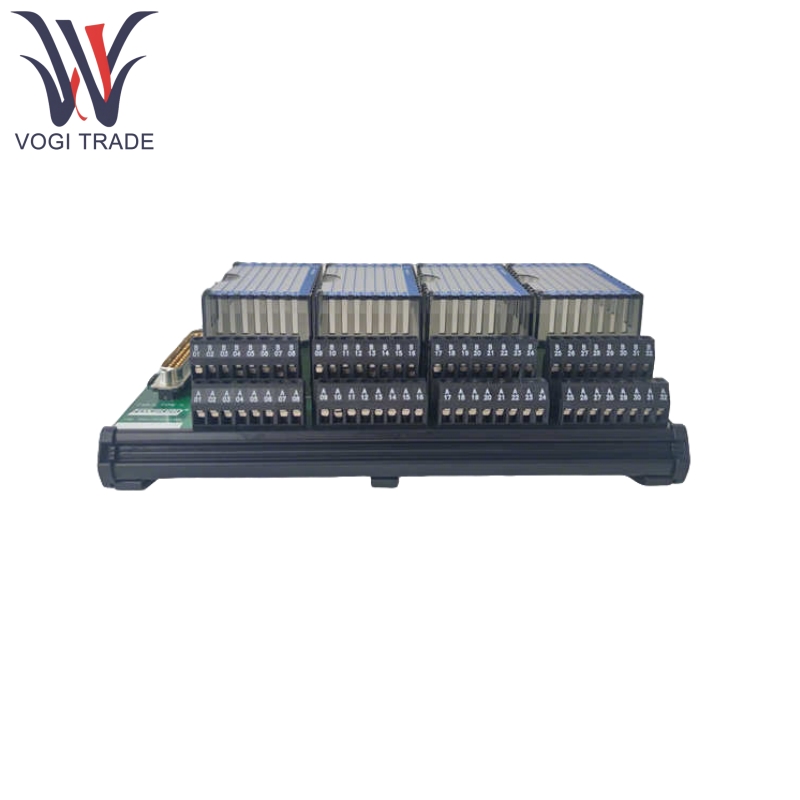

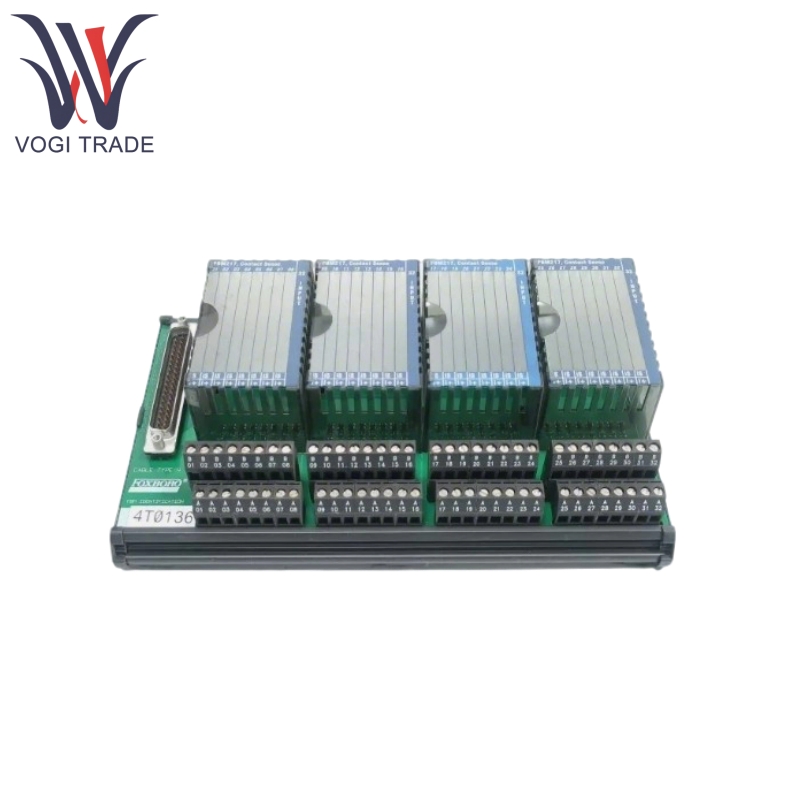

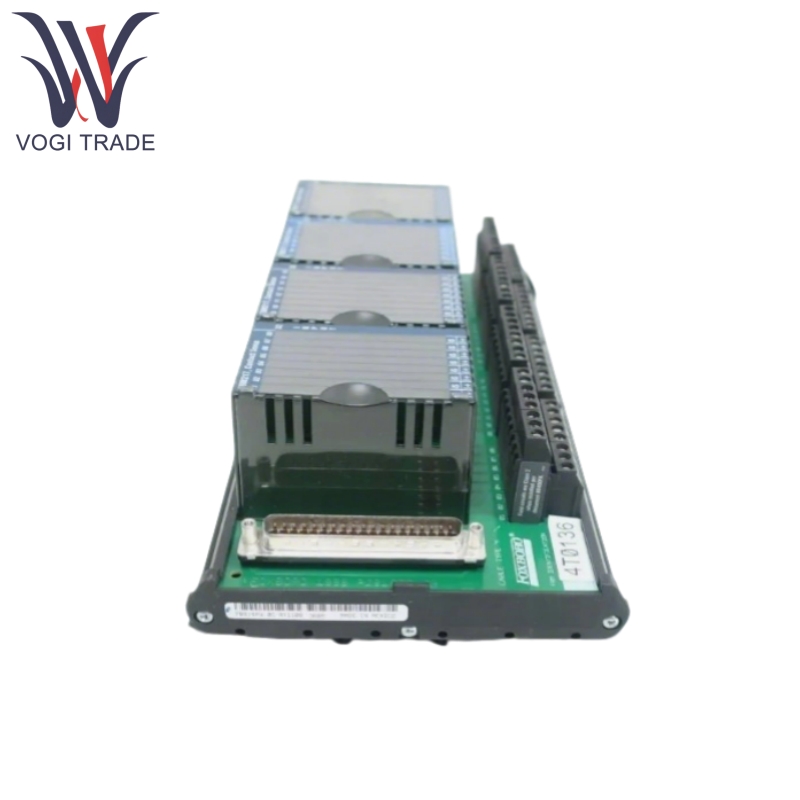

Brand: FOXBORO Description: Contact Sense Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen FOXBORO P0916PW is mainly used to connect field devices to control systems, enabling the acquisition, transmission, and control of digital signals. It is a terminal module that complements the FBM217 card, specifically designed for industrial automation scenarios to ensure reliable signal transmission and interference resistance.
|
Manufacture |
FOXBORO |
|
Model Number |
P0916PW |
|
Ordering Number |
P0916PW |
|
Catalog |
- |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8538900000 |
|
Dimension |
22*14*8cm |
|
Weight |
0.4kg |
Product Features
FOXBORO P0916PW is compatible with free-voltage contacts and NAMUR standard proximity sensors, adapting to the needs of various industrial equipment.
FOXBORO P0916PW achieves electrical isolation between the system and field devices via optocouplers, enhancing interference resistance and protecting the safety of the control system.
FOXBORO P0916PW supports dual 24VDC redundant power supply, ensuring stable operation even during power failures, with built-in OR diodes for mixed power supply voltages.
Each channel is equipped with an independent LED indicator light, providing real-time display of input status (on/off), facilitating quick fault diagnosis.
FOXBORO P0916PW is designed for harsh industrial environments, supporting a wide temperature range (-20°C to +60°C) and high-altitude operation (below 2000 meters).
Product Using Principle
FOXBORO P0916PW changes in the status of field devices (such as switches) are transmitted via terminal connection modules.
Optocouplers convert field signals into digital signals, isolating electrical interference.
Digital signals are transmitted via a 37-pin D-sub connector to the FBM217 card, where they are processed by the control system.
Redundant power supply modules automatically switch between primary and backup power sources to ensure continuous power supply.
Its LED indicator lights display the channel status in real time, facilitating on-site maintenance.
Product Parameter
The following detail is for FOXBORO P0916PW.
Operating Voltage: 24VDC (allowable range: 20-30VDC), with reverse polarity protection.
Free voltage contacts: Supports dry contact or wet contact signals.
NAMUR sensors: Compliant with IEC 60947-5-6 standard, with a detection distance of 0-5mm.
Number of Channels: 32 digital input channels, supporting high-density signal acquisition.
Signal Isolation: Isolation voltage between the system and the field side is ≥1.5kV, ensuring safety and reliability.
Wiring Specification: Supports a maximum wire size of 2.5mm², with connections via screw terminals for secure wiring.
Protection Class: IP20 (for indoor installation), dust-proof but not water-proof.
