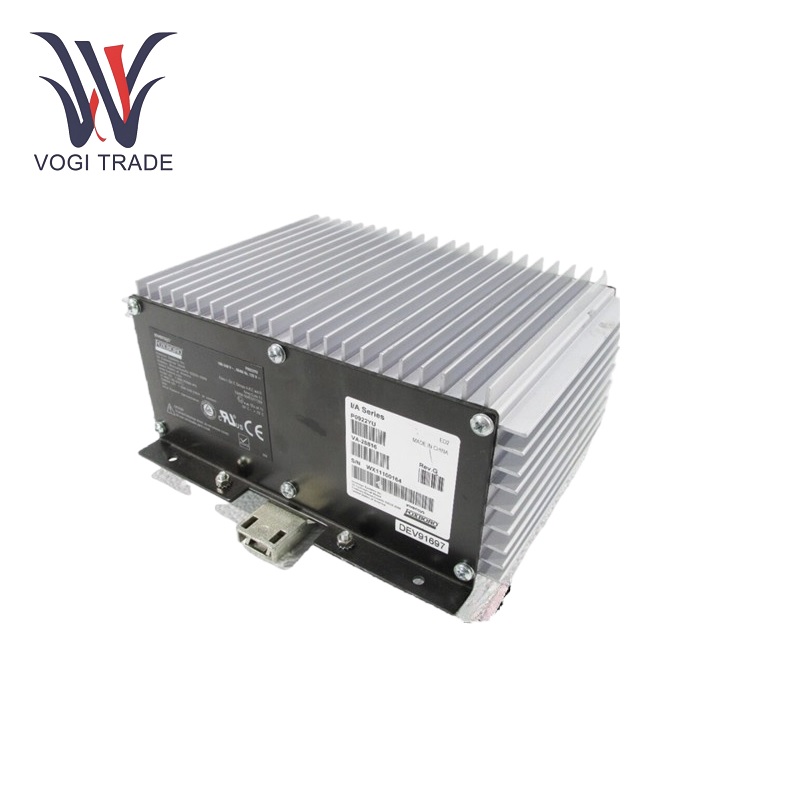

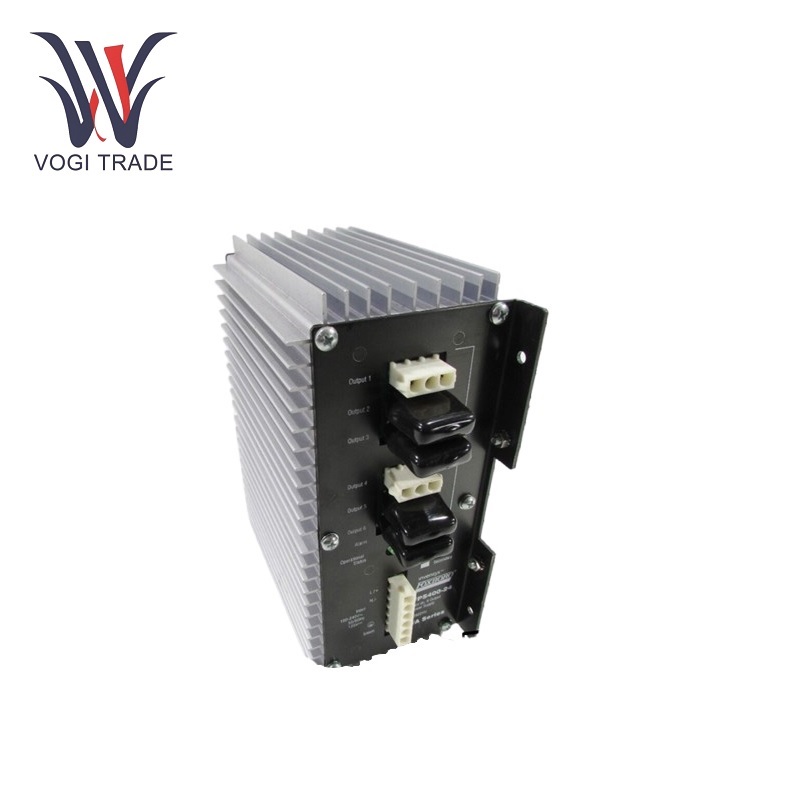

Foxboro P0922YU

Technical Parameter

Voltage supply: 85-265 V AC.

Input current: 5.6 A at 85 V AC input.

Input frequency range: ranges from 47 to 63 Hz.

Output voltage: 24.0 V DC, ± 0.2 V DC nominal factory setting.

Output current: 16.7 A.

Output power: 400 W.

Efficiency: up to 88%.

Ripple and noise: less than 2%.

Wide operating temperature range: -40 to 70 °C.

Wide storage temperature range: -40 to 85 °C.

Humidity: 0 to 95% non-condensing.

Vibration: 0.5 g RMS, 5 to 500 Hz.

Shock: 5 g, 20 ms half-sine.

Mounting: solid DIN rail.

Function Features

Widely Compatible Voltage: Foxboro P0922YU can accept a wide range of AC or DC input voltage; it is, therefore, suitable for different power supply requirements in various industrial environments.

High Efficiency: with an 88% efficiency rating, Foxboro P0922YU converts electrical energy quite effectively, thus reducing energy consumption and operating costs.

Low Ripple and Noise: The output gives peak-to-peak ripple and noise less than 2%, which guarantees a stable and clean supply of power to sensitive electronic components; Foxboro P0922YU is critical for precise-operating industrial control systems.

Overload and short-circuit protection of the output: automatically shuts down in case of overloading or short-circuit to protect connected equipment from electrical faults.

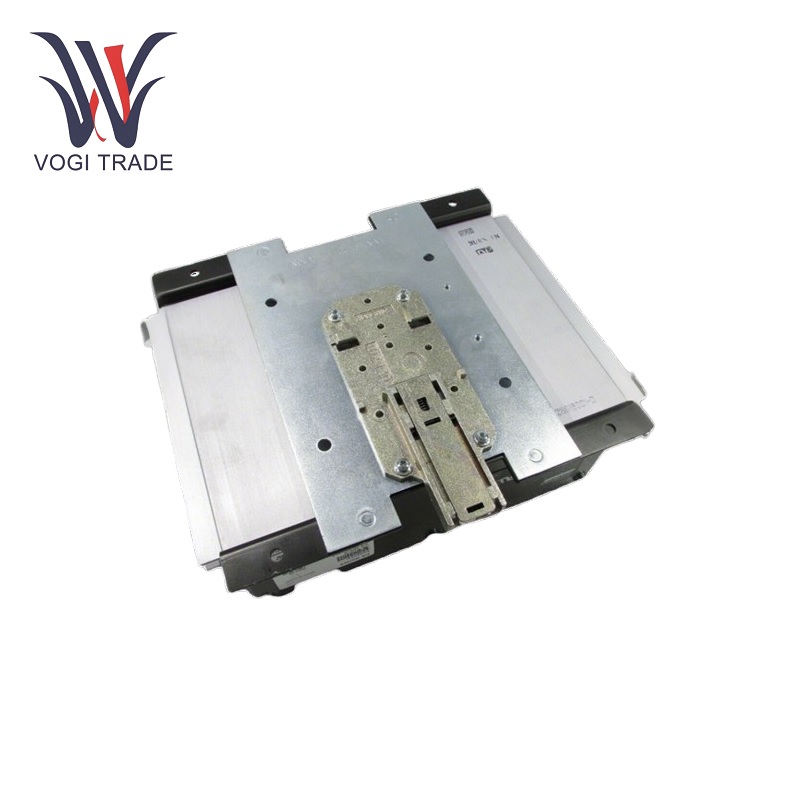

DIN Railmounting: Easy to install or remove, Foxboro P0922YU allows convenient integration into existing industrial control panels or racks, significantly reducing installation time and effort.

Applications

Process Control: It's mostly used in various process industries, that is, chemical, petrochemical, pharmaceutical, and food and beverage. Foxboro P0922YU provides dependable power supply for controllers, sensors, actuators, and other devices involved in process control systems, hence ensuring accurate and stable operations of production processes, for example, in a chemical plant provides energy sufficient for the control valves, temperature sensors, pressure transmitters into operating appropriately with chemical reactions.

Manufacturing: It is in manufacturing that it is applied in manufacturing facilities for powering production equipment like CNC machines, robotic arms, conveyor belts, and assembly line machinery. The stable power supply helps to improve production efficiency, reduce downtime, and ensure quality in manufactured goods.

Oil and Gas: In the oil and gas sector, Foxboro P0922YU powers exploration, production, and refining processes. It can supply power for wellhead control systems, pumps, compressors, and analyzers in harsh onshore and offshore environments where a reliable power supply is essential for safe and efficient operations.

Power Generation: In power plants, it is used in control and monitoring systems, including turbine control systems, generator protection relays, and SCADA systems. Its high reliability and stability lead to the smooth operation of power generation facilities and reliable electricity supply.

Building Automation: Foxboro P0922YU supplies controllers, sensors, and actuators for HVAC (Heating, Ventilation, and Air Conditioning) systems, lighting control systems, access control systems, and other building automation applications in building management systems. This allows for energy efficiency, occupant comfort, and building security.
