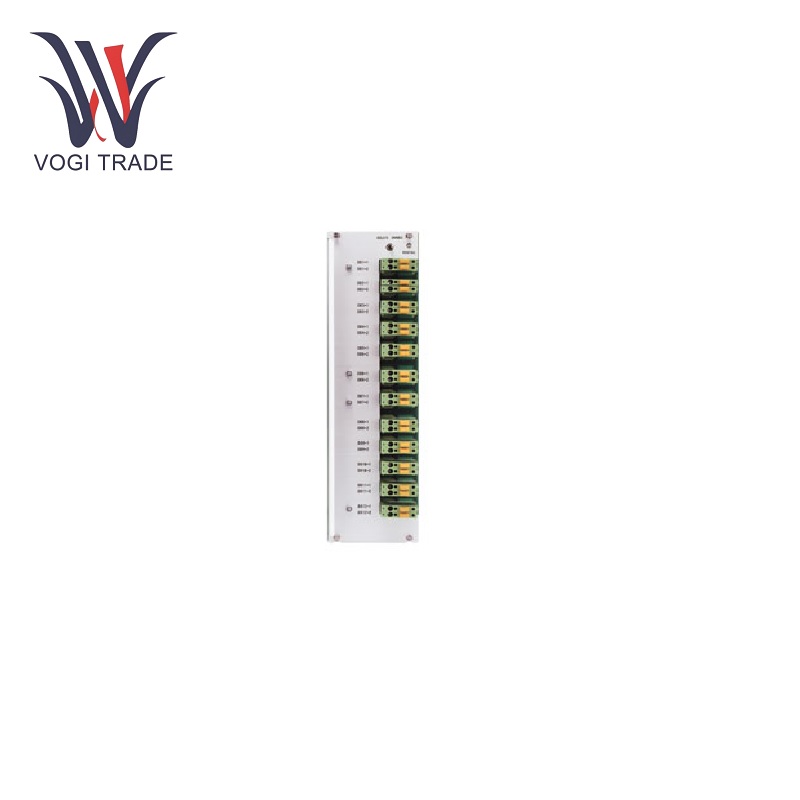

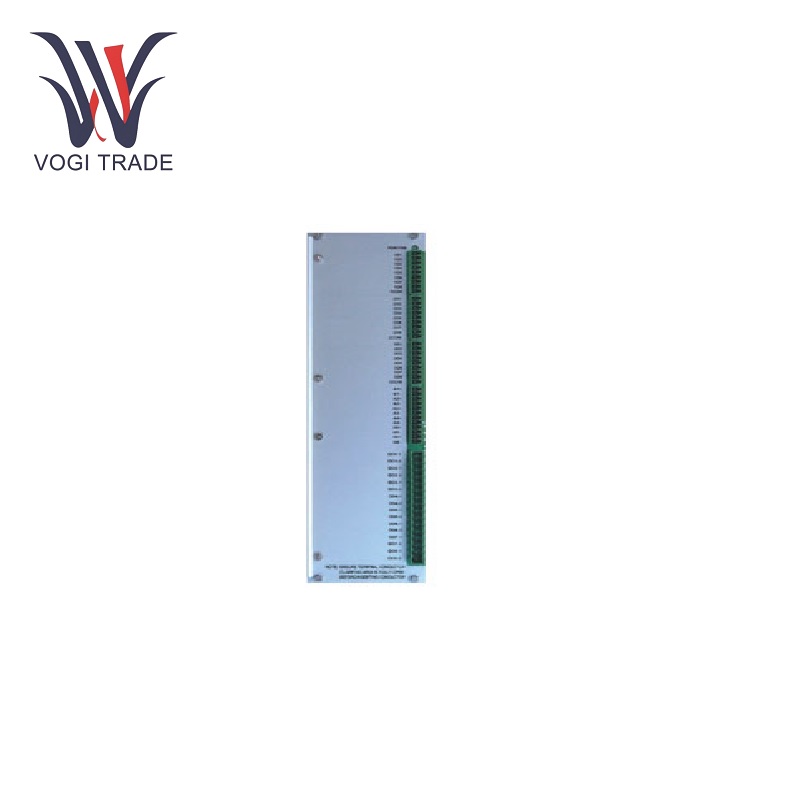

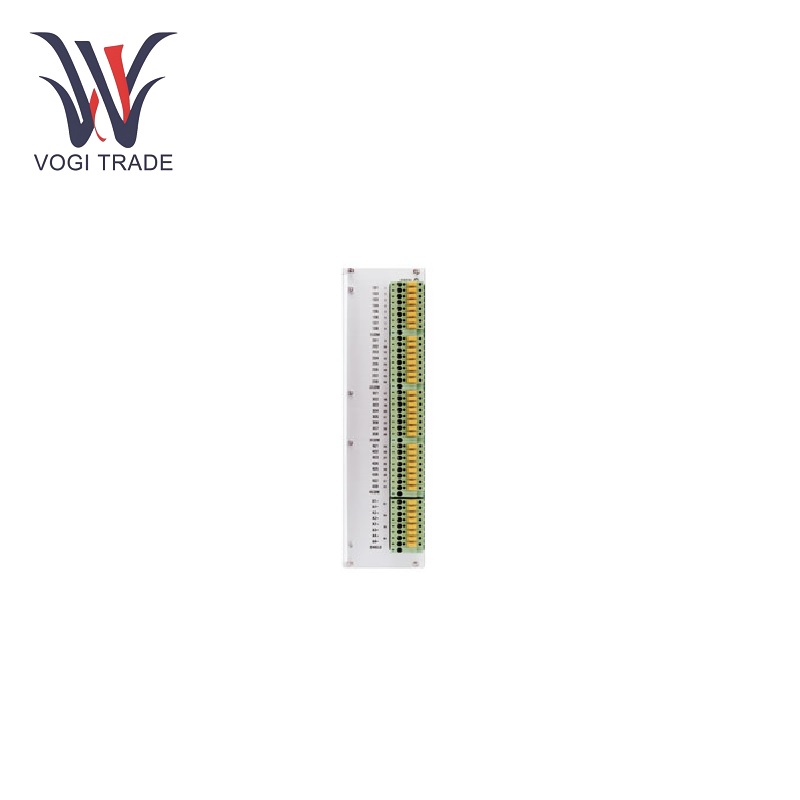

Brand: FOXBORO Description: Remote Terminal Unit Condition: New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 3 Payment term: T/T Shipping Port: ShenZhen Foxboro RTU50 successfully goes into providing support for the accurate control and resourceful management of the industrial functions. For an international standard of real-time and precise data networking, FOXBORO RTU50 can ideally link up with the central control center through multiple standards of communication protocols to allow for both short-distance LAN and long-distance WAN connections.
|
Manufacture |
FOXBORO |
|
Model Number |
RTU50 |
|
Ordering Number |
RTU50 |
|
Catalog |
- |
|
Country Of Origin |
USA |
|
HS CODE |
8538900000 |
|
Dimension |
15*10*5cm |
|
Packing Dimension |
17*14*7cm |
|
Weight |
0.5kg |
Technical Parameter
Intake Voltage: 18 - 164 V DC .
Power Consumption: 130 W input max .
Operating Temperature Range: -20°C to 60°C.
Storage Temperature Range: -40°C to 85°C.
Operating Humidity Range: 5% to 95%.
Network Protocols: Foxboro RTU50 supports industrial standard DNP3 slave, DNP3 master, IEC 60870-5101 master, Modbus slave, and Modbus master protocols .
Serial Ports: One dedicated RS-232 diagnostic port and one RS-232/RS-485 programmable serial port.
Function Features
Software Configurability：Digital inputs of Foxboro RTU50 are software configurable and can be individually set as accumulators, momentary change detection inputs, status inputs, or a combination of these. Analog inputs also have software-configurable features such as plug-in resistors for current loops and continuous auto input calibration/check .
Protection and Input Processing: The digital inputs subsystem has optical isolation, filtering, and surge transients protection. Foxboro RTU50 writes the contact status information to the microprocessor in its barroid and also uses the contact bounce circuitry. The analog inputs subsystem has surge transients and noise protection that sends a multiplexed sample to the A/D converter.
Output Flexibility： Foxboro RTU50 control outputs are very flexible in providing configurable pulse and latched relays, provision is supplied for control operations by monitoring hardware and software, as well as control operations security checks.
Security and Integrity： Built-in check-before-operation logic for all control outputs and individual configurable fixed and variable output duration that improves security and integrity mechanisms of Foxboro RTU50 sharply minimizes the risk of an incorrect operation.
Applications
Power Generation and Distribution: It can monitor and control several power generating equipment, including substations with power distribution systems. This includes monitoring the status of circuit breakers, transformers, and power lines and controlling electric-plant output and distribution.
Oil and gas industry：Foxboro RTU50 keeps track of equipment safety and operational efficiency in oil and gas exploration, production, and transportation processes and at wellhead devices, pipelines, and compressor stations.
Water and Wastewater Treatment: Monitoring and controlling water treatment plants and wastewater treatment facilities performances, controlling pumps, valves, and equipment to monitor the quality of water treatment to ensure the quality of water treated and proper operation of the treatment process.
Industrial Automation: In the manufacture, chemicals, and pharmaceutical industries, Foxboro RTU50 can do equipment monitoring, as well as data collecting to enhance production efficiency and product quality.
