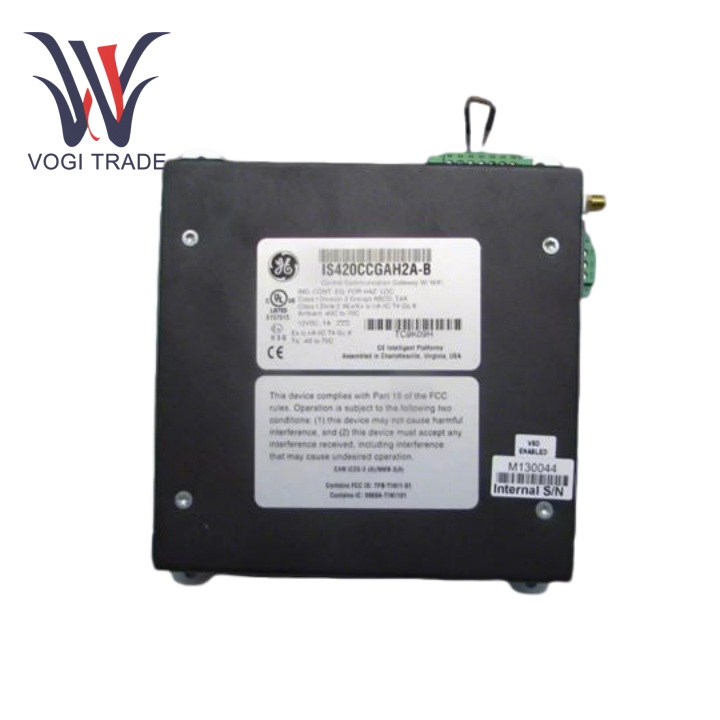

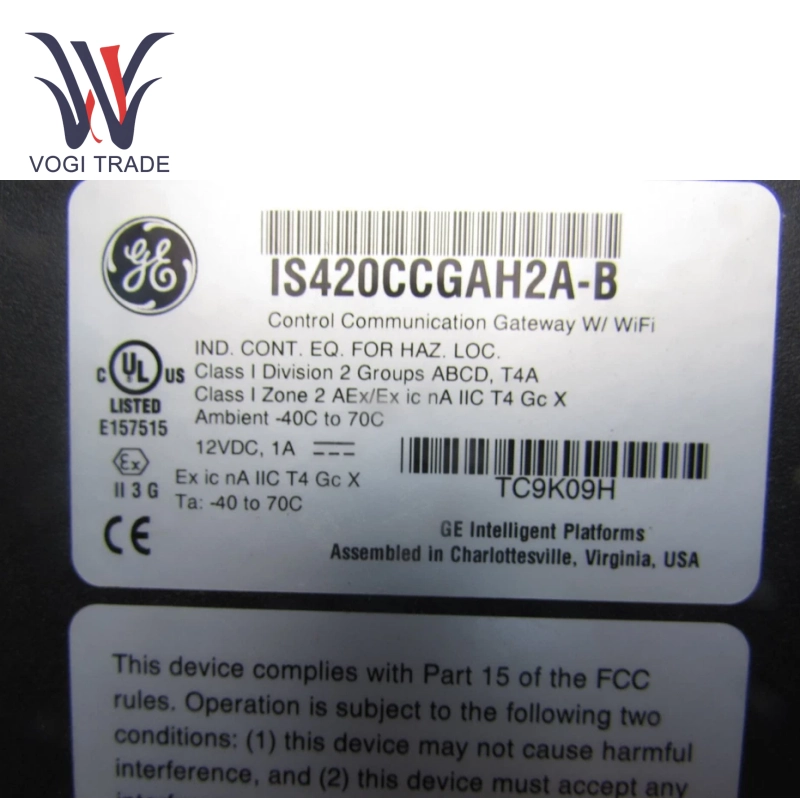

Brand: GE Description: Control Communication Gateway Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: Shenzhen GE IS420CCGAH2AB uses an integrated hardware and software architecture to achieve real-time data interaction and control command transmission between devices, and is suitable for gas turbines, power systems, petrochemicals and other high-reliability scenarios.
|
Manufacture |
General Electric |
|
Model Number |
IS420CCGAH2AB |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
9031809090 |
|
Dimension |
16*9*6CM |
|
Packing Dimension |
20*12*8CM |
|
Weight |
2kg |
Technical parameters
Processor: Multi-core high-performance processor.
Memory and storage: 256MB RAM, 512MB flash memory.

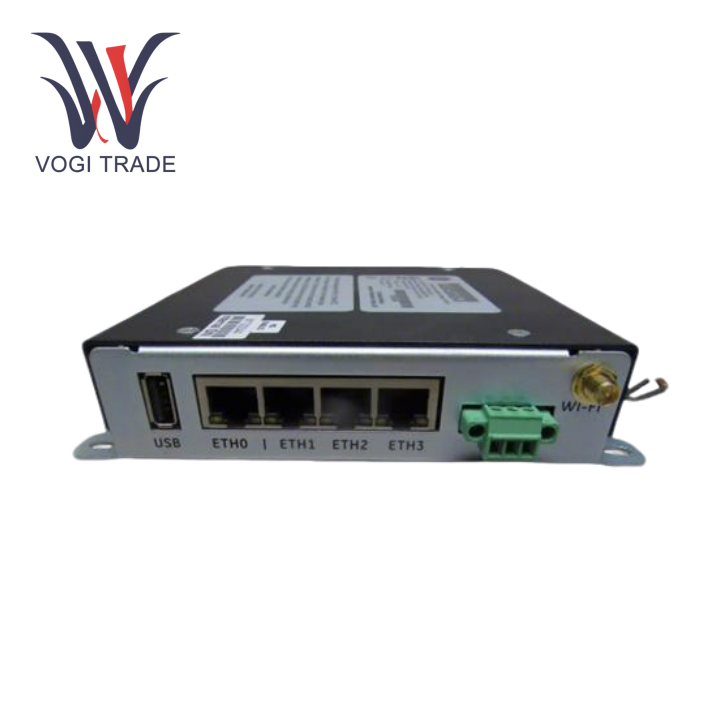

Ethernet port: 2×100Mbps.
Serial interface: 2×RS-485/422, support Modbus RTU protocol.
Power input: 24V DC (±10%), power consumption ≤15W.
Operating temperature: -20℃ to +70℃, protection level IP40.
Core functions
Multi-protocol communication: GE IS420CCGAH2AB supports EtherNet/IP, Modbus TCP/RTU and other protocols to achieve seamless integration with PLC, DCS system and third-party equipment.
Data management: GE IS420CCGAH2AB has a built-in real-time database, supports millisecond-level data collection and forwarding, and is suitable for high-speed control scenarios (such as turbine speed regulation).
Diagnosis and redundancy: Real-time monitoring of communication link status, triggering abnormal alarms (such as disconnection, data packet loss), supporting module hot swapping and firmware online upgrades, and reducing system downtime.
Working principle
GE IS420CCGAH2AB is integrated into the Mark VIe control rack through the backplane connector. After receiving instructions from the controller, it is parsed by the protocol stack and transmitted to the target device through Ethernet or serial interface. At the same time, the data of field equipment is collected and fed back to the control system to form a closed-loop control.
Compatibility and supporting products
Control system: compatible with Mark VIe and Mark VIeS platforms, supporting ControlST software configuration and diagnosis.
IS420ESWBH2A: Industrial Ethernet switch for network expansion.
IS220PDIAH1B: Digital I/O module for signal acquisition and actuator drive.
IS220PAICH1B: Analog input module, supporting high-precision sensor access.
PLC compatibility: supports Siemens SIMATIC S7-1500 and Schneider Modicon series communication via Modbus protocol.
Instrument adaptation: can be connected to Bently Nevada 3500 series vibration monitoring instruments.
