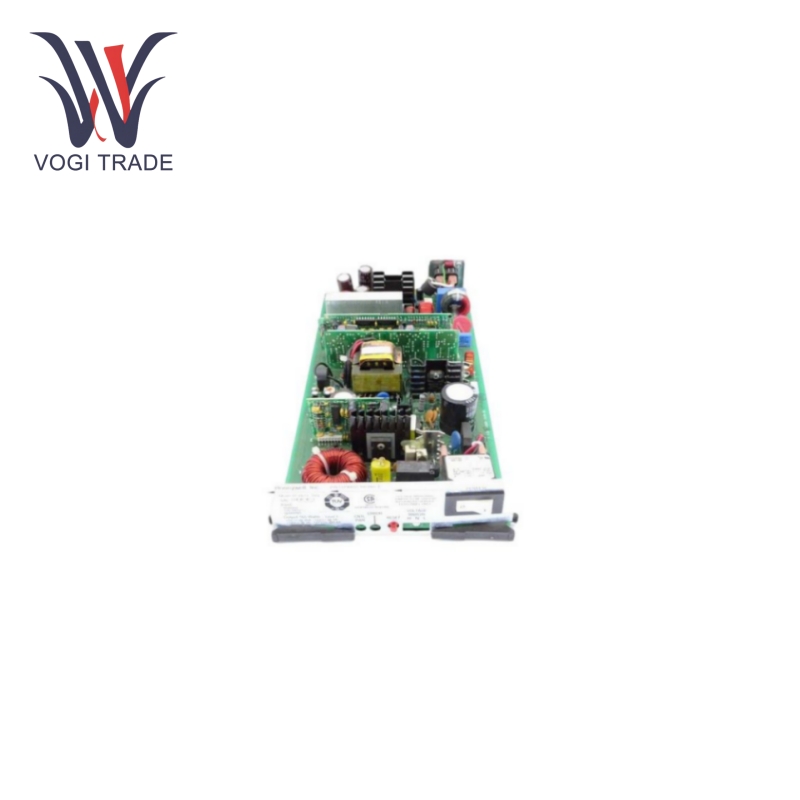

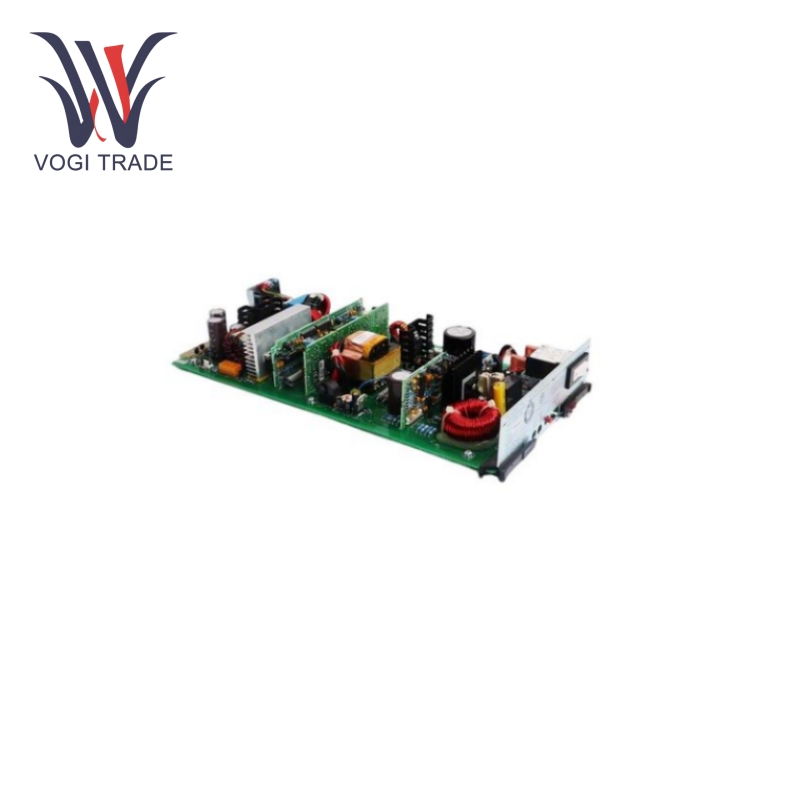

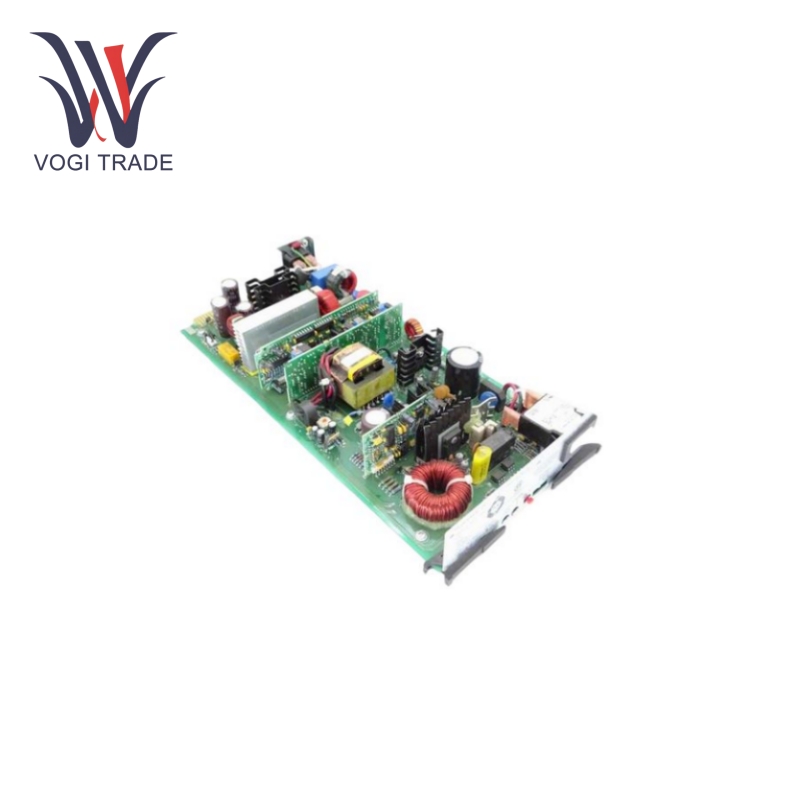

Honeywell 51196655-100

Usage Parameters

Input Voltage: 120/220VAC input is compatible with the universal voltage of power supplies in industrial environments, and is flexible to install and use.

Output Voltage: 23V DC output voltage is convenient for powering specific devices or systems, ensuring stable power supply for connected devices.

Output Current: Multiple devices can be powered simultaneously with a maximum current of 10A according to the power consumption requirements of each connected device.

Power Consumption: The maximum power consumption of 240W indicates that the device operates within the specified energy level, allowing for proper power management and capacity planning of the entire system.

Communication Interface: RS485 and Modbus communication interfaces can be supported. RS485 enables reliable long-distance communication, while Modbus is a universal industrial transmission protocol that makes it easy to integrate different types of devices and systems into automation networks.

Input Channels: Honeywell 51196655-100 has 16 input channels, 12 single-ended and 4 differential. It allows great flexibility in using various sensors or signal sources and applying different input signals in signal acquisition.

Input range: Each channel of Honeywell 51196655-100 can be configured with an input range of 0 to 5V, 1 to 5V, 0.4 to 2V, or 4 to 20mA. This wide range of input range selectivity is suitable for different types of sensors and transducers, and can accurately measure various physical quantities such as temperature, pressure, flow, etc. Lightning protection: The lightning protection function of this module can protect itself and the connected equipment from damage by lightning or other forms of transient surge voltage, which helps to improve the reliability and durability of this product design, especially in harsh outdoor or harsh industrial environments.

Product Features

Power supply: The main function of Honeywell 51196655-100 as a power supply module is to convert AC voltage into a certain stable DC voltage, thereby providing reliable power input for other components or subsystems within industrial automation or safety systems. Ensure the normal operation of various devices such as controllers, sensors, actuators, etc.

Overload, short circuit, over-temperature protection: With overload, short circuit, over-temperature protection functions, it can self-protect when abnormal conditions such as excessive current, short circuit, overheating, etc. occur, preventing the power module and the entire system from being damaged. When abnormal operation occurs, the module can take safety measures on its own to stabilize and save the entire system.

Monitoring and diagnosis: In addition to basic power supply and protection functions, it also has monitoring and diagnosis functions, which can monitor the working status and parameters of the module in real time, including output voltage, current, temperature, etc. Through these parameters, potential faults can be discovered in time, preventive maintenance can be performed, and system downtime can be reduced.

Application range

Industrial automation: Honeywell 51196655-100 is used in industrial automation processes such as manufacturing plants, chemical plants, and refineries, including providing power and control signal support for PAC, DCS, and other types of automation, so as to more accurately control and monitor the production process.

Manufacturing: Used in the manufacture of production equipment, such as robotic arms, conveyor belts, and machining centers. Stable power supply ensures normal operation and better production efficiency, and improves product quality.

Monitoring and Control Systems: Monitoring and control systems used in industrial facilities, including environmental monitoring systems, building automation systems, and security monitoring systems, provide power to sensors, controllers, and communication devices, thereby facilitating real-time data collection, processing, and communication.
