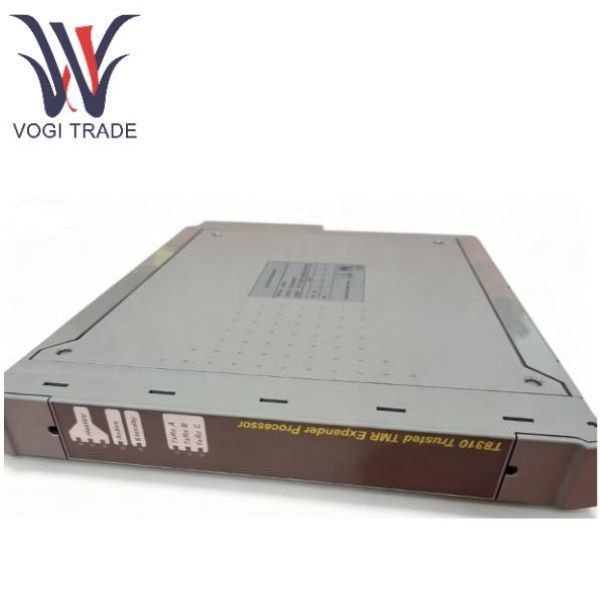

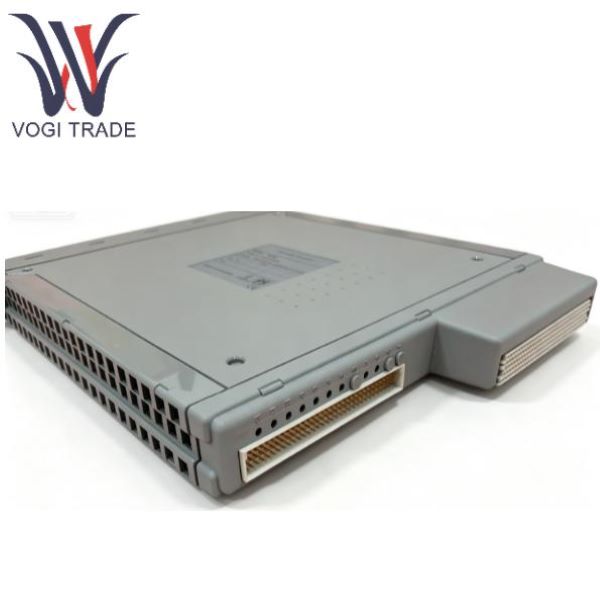

Brand: ICS Triplex Description: Expander Processor Condition: New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 2 Payment term: T/T Shipping Port: Xiamen The T8310CX is a Rockwell Trusted series TMR three-redundancy expansion processor. T8310CX Supports dual-module primary and backup redundancy, hot-swapping without shutdown, and real-time display of channel health and communication status on the panel LED, meeting the continuous and stable operation requirements of SIL high-level safety instrumented systems.
The T8310CX is a Rockwell Trusted series TMR three-redundancy expansion processor. It is an optimized copper cable communication module based on the standard T8310 hardware architecture and is used in the T8300 expansion rack to achieve remote I/O cabinet expansion. The T8310CX operates with three independent fault-isolated FCR lockstep systems. It connects to the main control rack via a 1.5Gbps expansion copper cable, forwarding 12.5Mbps IMB backplane bus data, system watchdog and power failure warning signals. The T8310CX version enhances the anti-interference and long-distance transmission capabilities of UTP cables, making it suitable for strong electromagnetic and long-distance wiring scenarios such as chemical and thermal power plants.
|
Manufacture |
ICS Triplex |
|
Model Number |
T8310CX |
|
Ordering Number |
T8310CX |
|
Catalog |
- |
|
Country Of Origin |
United States |
|
HS CODE |
8517795000 |
|
Dimension |
27cm*3cm*31cm |
|
Packing Dimension |
30cm*6cm*35cm |
|
Weight |
1.2kg |
Product Functions
1. The three-mode redundant TMR expansion processor is installed in the PL1/PL2 redundant slots of the T8300 expansion rack, serving as the slave interface of the expansion bus.
2. Forward the bus data of the IMB module between the controller rack and the expansion rack, system watchdog, power failure warning, and clock synchronization signals;
3. Three independent FCR fault isolation zones, real-time monitoring of dual 24V backplane power supply, three bus transmission and reception error codes, and module health status;
4. Supports hot plugging and automatic switching between primary and backup. The panel LED visually displays the health status of the three channels, as well as the status of primary and backup and bus transmission and reception.
5. T8310CX Cx-exclusive features: Optimize the UTP copper cable drive circuit, extend the transmission distance of the TC-301 copper cable, and enhance EMI anti-interference capability
Key differences between T8310CX and standard T8310
|
Comparison items |
Standard T8310 |
T8310CX |
|
Copper cable communication circuit |
Standard UTP transmission and reception, standard maximum range of 30 meters; long-distance lines are susceptible to interference. |
CX optimized driver chip, with enhanced anti-attenuation and EMI filtering, improving long-distance stability. |
|
Applicable cabling scenarios |
Short-distance (≤20m) server rack expansion in computer rooms |
Long-distance copper cable laying across factory areas and strong electromagnetic field |
|
Bus error suppression |
Basic filtering and interference environments can easily lead to an increase in bit error rate. |
Enhanced hardware filtering significantly reduces transmission and reception errors under the same cable conditions. |
|
Hardware |
The basic FCR architecture remains unchanged. |
The hardware for the A/B/C bus transceiver channels has been redesigned, while the power supply and I/O forwarding logic remain completely unchanged. |
|
compatibility |
Fully compatible with T8312 and TC-301 |
Backwards compatible with original cables/racks and can directly replace T8310 |
Product Advantages
1. Native TMR triple redundancy fault tolerance, 3-2-0 fault degradation, no disturbance to the system when a single channel is damaged; Advantages of the CX upgrade: The stability of copper cable transmission distance is enhanced, the bit error rate in high EMI industrial environments is significantly reduced, and there is no need to install Repeaters for long-line cabling.
2. Full-link fault isolation, FCR partition isolation of faults, to prevent single-point faults from spreading throughout the entire machine;
3. T8310CX supports hot plugging and automatic disturbance-free switching between primary and backup, meeting the requirements for continuous production facilities to operate and maintain without stopping.
4. Integrated complete diagnosis, fully quantified upload of voltage, bus error code and channel status, and rapid fault location;
5. Standard 24V backplane power supply, compatible with the complete set of Trusted T8300 expansion racks, and equipped with TC-301 copper cable plug-and-play.
