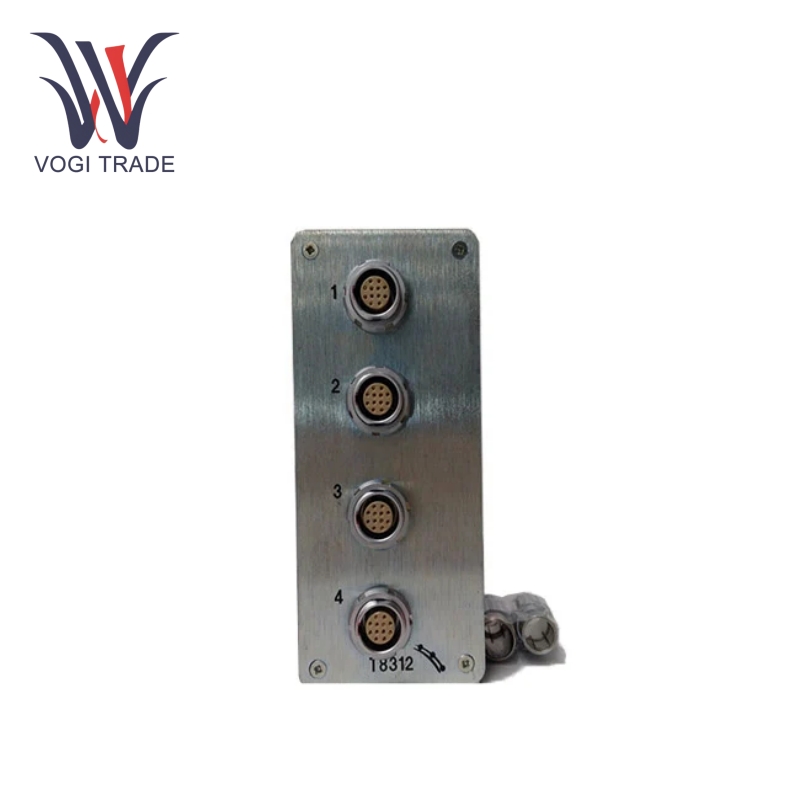

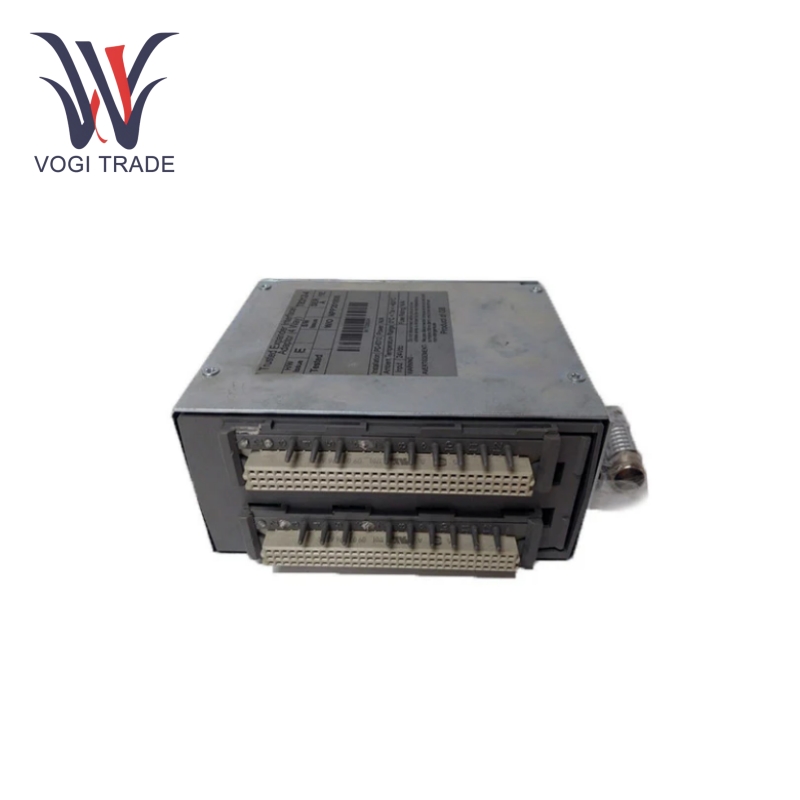

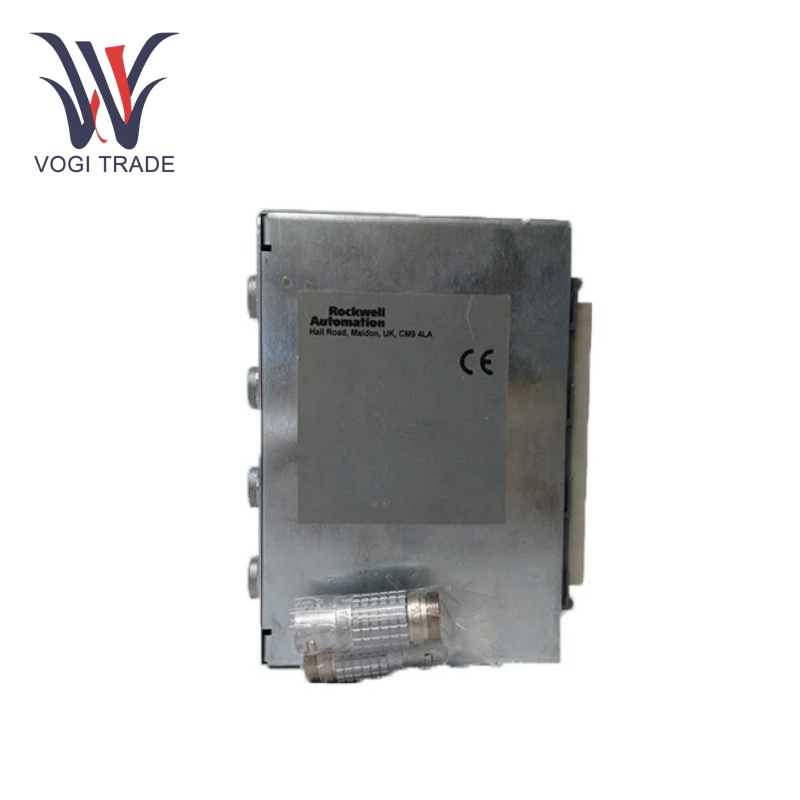

ICS Triplex T8312

Technical Parameter

Power Supply: 24V DC.

Power Consumption: 6W.

Operating Temperature: -40 °C to +70 °C.

Storage Temperature:  -40 °C to +85 °C.

Humidity: 5-95%.

Communications Interface: Ethernet.

Data Transfer Rate: 100 Mbps.

Cable Length: 100m max.

Protocols: Modbus TCP/IP, Ethernet/IP supported.

Input/output isolation: 1500V AC.

EMC: It is compliant with IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11.

Function Features

Triple Modular Redundancy (TMR): ICS Triplex T8312 constructs TMR architecture that contains three identical and independent processing modules. These modules simultaneously perform the same calculations, and the system employs a voting mechanism to convey which outputs are correct. As one of the three modules fails, the other two continue to function in a fully operational state without interruption and provide a maximum fault tolerance and system availability.

Advanced programming features: ICS Triplex T8312 proposes a comprehensive programming environment with multiple programming languages available such as ladder logic, function block diagrams, and structured text. This enables engineers to design and implement complex control strategies and safety functions to specifications dictated by industry.

Real-time monitoring and diagnostics: ICS Triplex T8312 constantly evaluates its own internal components, I/O channels, and the field devices connected. It detects any fault, error, or abnormal condition and generates a diagnostic report in real-time. Therefore, it enables proactive maintenance and effective troubleshooting to a minimum of downtime.

Secure communication: ICS Triplex T8312 incorporates secure communication protocols and interfaces like Ethernet, serial ports, and industrial fieldbus protocols. This guarantees areas of further care to other devices in an industrial network that include a layer of protection against data transmission vulnerabilities like unauthorized entry and data corruption.

Applications

Petrochemical sector: It is used for control and safeguard processes in refinery operations, reactor operations, pipeline transport, and storage plants. ICS Triplex T8312 communicates the safe and efficient production of petrochemical products.

Power generation industry: Its use is for turbine and generator control, grid synchronization, and protection of auxiliary systems at power plants.

Nuclear power plants: ICS Triplex T8312 fulfills reactor control, safety system management, and monitoring of critical nuclear processes. Its reliable and safe features are indispensable for secure operation of nuclear facilities.

Industrial Automation: ICS Triplex T8312 is used in many areas of manufacturing industries including but not limited to pharmaceuticals, food and beverage, automotive for process control, quality assurance, and automation of production lines, improving productivity, and product quality while ensuring the safe operation.
