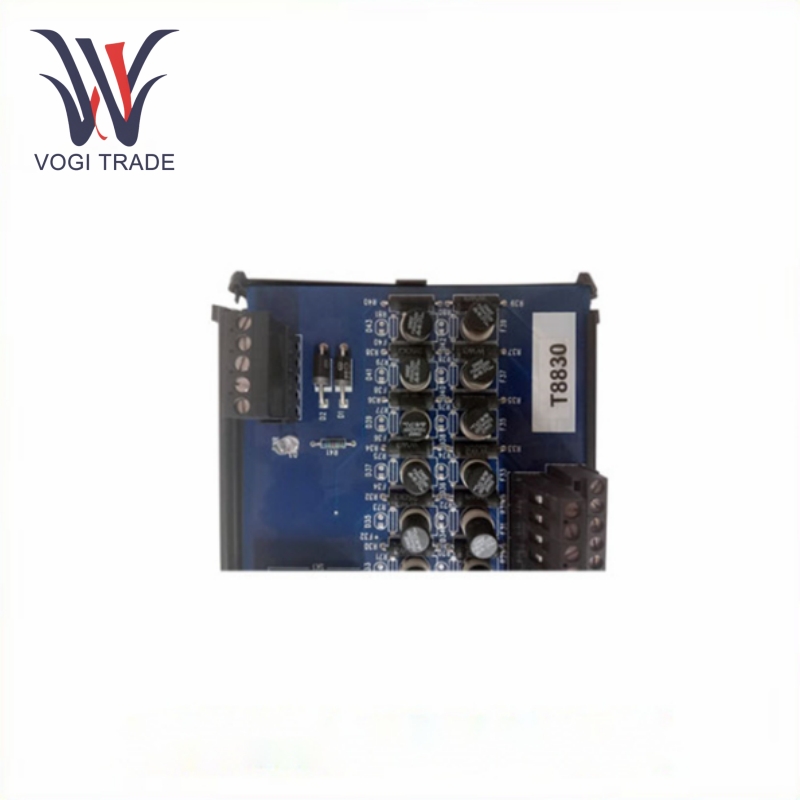

ICS Triplex T8830

Operational Parameters

Processor: ICS Triplex T8830 is a powerful processor that can process data very quickly and execute complex control algorithms. The processing speed enables the system to manage a range of industrial processes efficiently and accurately.

Memory: A large amount of memory is provided, including RAM memory and flash memory. Due to the ample memory space, a large amount of program code, configuration data and historical data can be stored. A large database of process variables, alarm history and event records can be processed.

Operating temperature: -20°C to 60°C. This makes the system suitable for a variety of industrial environments, including extreme temperature conditions in outdoor industrial plants and overheated places.

Power supply: The system requires a power supply, which tends to have a voltage variation range of 24VDC ± 10%. Usually, redundancy in the power supply can be used to continue operation when any one of the power supply sources fails. This redundancy ensures the reliability and availability of the system.

Product Features

High reliability control: ICS Triplex T8830 is designed for critical industrial control applications. It adopts triple modular redundant (TMR) technology. In this architecture, three identical channels process the same data simultaneously. The outputs of these channels are compared and a voting mechanism is used to decide which output is correct. It significantly reduces the risk of single point failures and ensures continuous, accurate control even if one of the two channels fails.

Process Monitoring and Alarm Generation: The system continuously monitors a range of process variables, including temperature, pressure, flow, and level. As soon as the value of a variable differs from a preset value or normal operating range, an alarm is immediately generated. Alarms can be configured to have different priorities and send their messages to different destinations - new plant operator consoles, control rooms, maintenance personnel mobile units, and other terminals.

Data Logging and Historical Analysis: The system stores a history of all process variables and events. This data can then be retrieved and analyzed to collect the activities that the industrial process has carried out over a given time frame, determine suitable and relevant time trend patterns for troubleshooting and informed process optimization and maintenance planning. For example, examining historical temperature data can detect a gradual increase in temperature, which may be related to potential equipment failure or maintenance.

Communications: Various communication interfaces, Ethernet, RS-232, and RS-485 are in place. It can communicate with other devices and systems on the corresponding industrial network and share information with sensors, actuators, programmable logic controllers (PLCs), distributed control systems (DCSs), and supervisory control and data acquisition (SCADA) systems. Effective communication facilitates comprehensive control and monitoring of the entire industrial process.

Programmable Logic Control: With the ICS Triplex T8830, users can write custom control logic. Engineers can freely express the control strategy of the system using any programming language or graphical programming tools according to the specific needs of the industrial process. This flexibility enables the system to adapt to different applications and process changes. For example, in a chemical manufacturing process, the control logic can be programmed to change the flow rate of reactants according to the temperature and pressure conditions in the reactor.

Application Scope

Oil and Gas Industry: The ICS Triplex T8830 is used in refineries and natural gas processing plants to control key processes in distillation towers, compressors, and pipelines. It ensures the safe and efficient operation of these processes by precisely controlling parameters such as temperature, pressure, and flow. For example, in a natural gas pipeline, it can monitor and control pressure to maintain an appropriate flow rate and avoid overpressure or underpressure moments that may cause leaks or equipment damage.

Chemical Processing: The ICS Triplex T8830 is widely used to control chemical reactions, mixing operations, and tank operations in chemical plants. In chemical manufacturing, precise control of process variables is critical to ensure product quality and safety and to meet regulatory standards. The ICS Triplex T8830 can control temperature, agitator speed, and monomer feed rate during polymerization to produce polymers with desired molecular weight and properties.

Power Generation: In thermal and nuclear power plants, the system TEM is used for turbine control, boiler control and grid synchronization. It helps maintain continuous power generation process at optimal efficiency. For example, in thermal power plants, it controls the steam flow to the turbines to follow the power load demand and optimize the power output. In nuclear power plants, it plays an important role in reactor control and safety systems that are required to operate the reactor correctly or shut it down under various conditions.

Pharmaceutical Industry: Manufacturing operations in the pharmaceutical industry require very accurate and reliable process control. For this purpose,the ICS Triplex T8830 is used to control processes such as fermentation, purification and packaging. It will maintain strictly controlled environmental conditions, including temperature and humidity in sterile manufacturing areas, and ensure accurate dosing and mixing of pharmaceutical ingredients with high precision.
