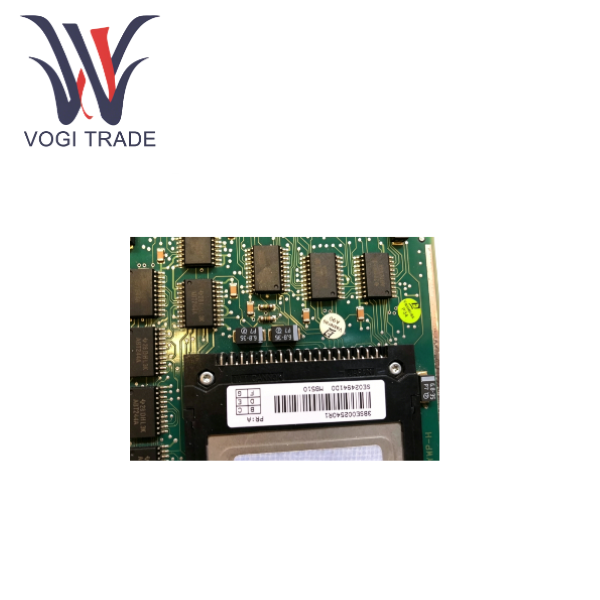

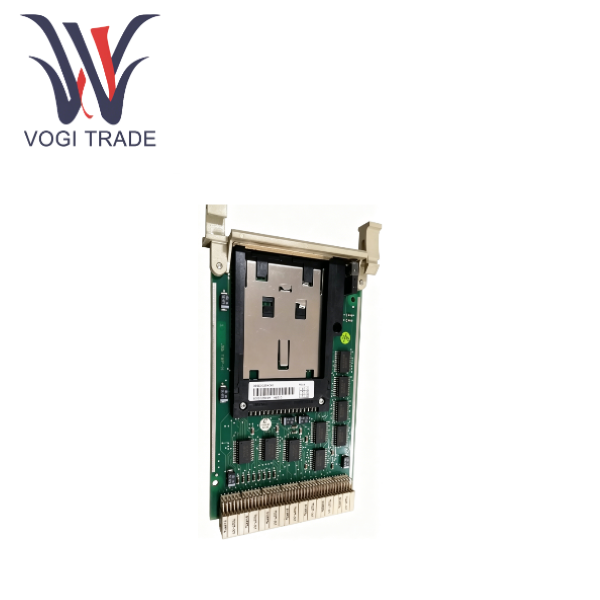

MB510 3BSE002540R1

Product Overview

ABB MB510 3BSE002540R1 is a dedicated program interface spare part for ABB's automation control systems. Its core value lies in enabling offline data interaction between the program card and the controller without the need for a computer. It focuses on rapid on-site recovery, batch deployment, and maintenance without downtime. Its hardware structure is simple and its functions are specialized, without complex configurations. It relies on hardware links to complete data relay. Currently, it is mainly applied in the operation and maintenance of existing industrial equipment and spare parts replacement, and does not belong to the accessories of the new generation of intelligent control systems.

Operating principle

The MB510 3BSE002540R1 is essentially a dedicated interface board for signal conversion and data relay. It realizes data interaction through hardware circuits and bus protocols. The complete workflow is divided into four steps:

1. After the hardware link establishment module is inserted into the ABB control rack, it automatically connects to the system backplane bus and completes the power-on initialization. When the dedicated EPROM/EEPROM program card is inserted into the MB510 card slot, the internal contact circuit of the module conducts, and the physical link is established.

2. The equipment identification and verification module is equipped with an internal identification circuit that automatically reads the hardware identification, capacity, and data Checksum of the program card, determines whether the program card is an ABB original factor-compliant medium, refuses the connection of non-compatible memory cards and simultaneously completes the pre-verification of data integrity.

3. On the one hand, signal conversion and data relay receive the original storage signal output by the program card, convert it into a standard digital signal that can be parsed by the ABB controller bus, and upload the program and configuration data to the controller memory. On the other hand, it receives the storage instructions and operation data issued by the controller, converts them into read and write signals recognizable by the program card, and writes the data into the storage area of the program card.

4. Status feedback and link maintenance: Real-time monitoring of the communication link, voltage, and data message integrity throughout the data transmission process, and synchronous output of status through LED lights. During normal operation, continuously inspect the connection status of the program card. If poor contact or data damage occurs, immediately trigger the fault indicator light to alarm.

The entire system has no independent computing function. All logical operations and program executions are completed by the main controller.

MB510 3BSE002540R1 Features

MB510 is a dedicated interface module that connects ABB's dedicated EPROM/EEPROM program card with the main controller, focusing on the offline management of program and configuration data. The core functions are divided into five items:

Bidirectional program data reading and writing

1. To achieve bidirectional transmission of program, parameter, and system configuration data between the controller and the dedicated program card. The logic program solidified in the program card can be loaded into the controller for operation, or the current running program and parameters of the controller can be completely written into the program card for backup.

2. It can operate offline without a PC. There is no need to connect an external computer or programming software. Just rely on the combination of modules and program cards to complete program loading, backup, and version migration. It is suitable for industrial scenarios without office equipment on site.

3. The hot-swappable program card is supported for plugging and unplugging while powered on. When replacing or reading and writing the program card, the normal operation of the main control system will not be interrupted, ensuring the continuous operation of the production line.

4. The status monitoring and fault indication board is equipped with independent LED indicator lights, which can provide real-time feedback on the power supply status of the module, data read and write status, and link fault status, facilitating on-site personnel to quickly identify abnormalities.

5. Batch program replication and deployment, in combination with standard program cards, can batch replicate the standard program of a single device to multiple controllers of the same model, achieving standardized configuration of production line equipment.

Application Cases

1. Emergency recovery of controllers in Power plant stations

A certain thermal power plant adopted the ABB Advant Controller 450 control system. Due to an unexpected power outage of the on-site controller, the program in the RAM was lost. The operation and maintenance personnel use the EPROM program card pre-stored with the complete program to insert it into the MB510 module on the rack. Without the need for an external computer, the program can be reloaded within a few minutes, quickly restoring the control logic of the unit and reducing the downtime for maintenance.

2. Standardized deployment of batch equipment in chemical production lines

Large-scale chemical production lines are equipped with multiple AC 31 series controllers, and all equipment must have a unified control program. Technicians first debug the program of a single device and write the standard program into multiple EEPROM program cards through MB510. Then insert the program cards one by one into the MB510 interfaces of the remaining devices to complete batch program replication, achieve unified configuration of the entire line of equipment, and significantly improve deployment efficiency.

3. During the factory stage of the ABB OEM automation equipment, engineers use MB510 to solidify the customized control program into the program card, which serves as a standard component of the equipment. When program anomalies occur at the equipment site, after-sales personnel directly replace the pre-made program card and rely on MB510 to complete program recovery, lowering the technical threshold for after-sales service.
