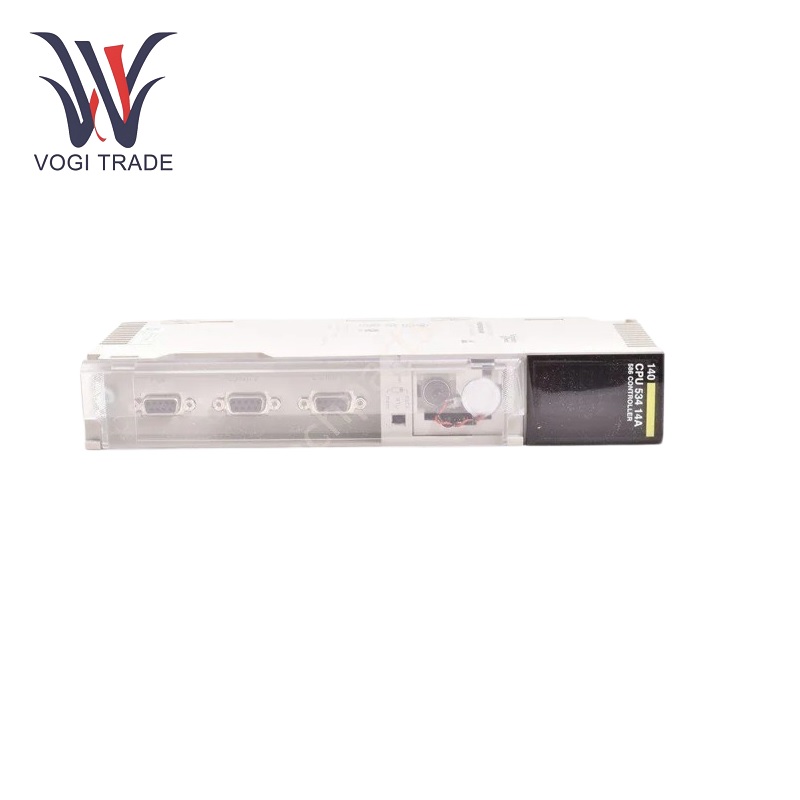

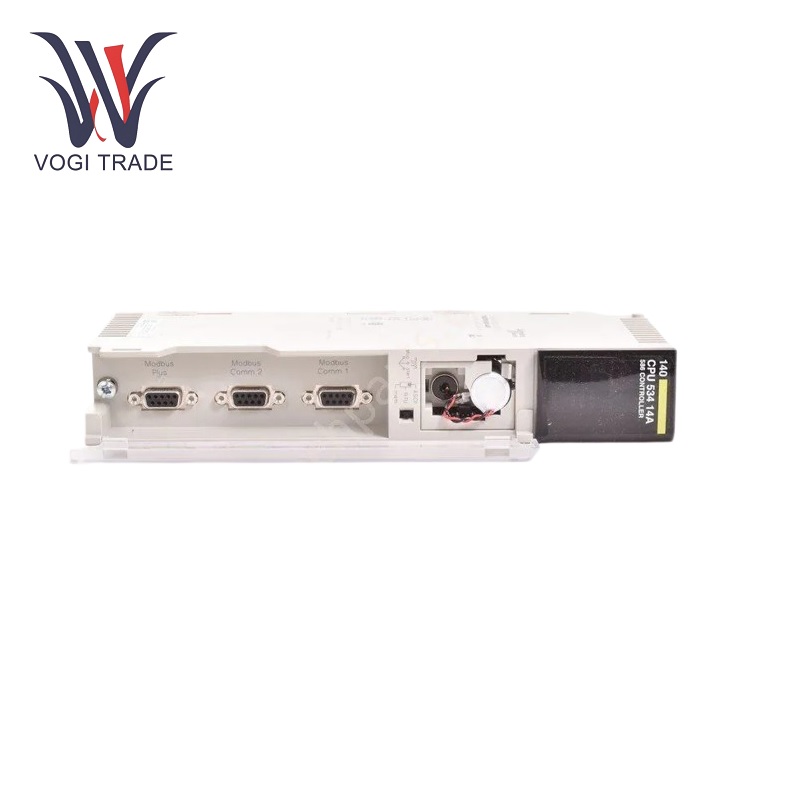

Schneider 140CPU53414A

Specification

Processor: 586-class CPU.

Memory: Equipped with 4MB SRAM, has 2972KB of internal RAM, and has additional 1435KB flash EEPROM, which is used to store user program codes and initialization values for resident variables.

Power consumption: 6.25W.

Clock frequency: 100MHz.

Ladder logic: 64K.

The memory strategy for input and output: 128K. 57 Internal registers, can handle external registers up to 96K.

Operating temperature: 0 to 60 degrees Celsius.

Features

Rich instruction set: Schneider 140CPU53414A has a rich instruction set with covering varied functions such as logic operations, data processing, communication control, etc, which will meet the requirements of different industrial control scenarios. Users may implement various complex control functions through calling these instructions.

Sing and storage: Schneider 140CPU53414A is capable of collecting, processing, and storing a large amount of data. It can analyze and process real-time data from a wide range of fields from sensors, thus storing the data that is critical and which can later be referred to and analyzed. It is the basis for data support in the optimization of the production process and fault diagnosis.

Good reliability: chneider 140CPU53414A uses low power (6.25W) and hence generates less heat. Therefore stability and reliability improve and the chance for hardware failure due to overheating decreases. The device has a lithium battery that offers an average load current rating of 10µA, with peak performance of 420µA. Its life is about 1.2 Ah. The shelf life stated for the battery is ten years, which ensures reliable power support for data preservation and real-time clock operation in the case of power failure. Schneider 140CPU53414A features a 250ms watchdog timer that constantly monitors the system operational status. The user may specify a supervisory recovery procedure to restart the controller anytime the system is in an abnormal condition or is grappling with a freeze. This necessitates constantly monitoring the operational status and ensuring continuous normal operation of the processor. This could greatly enhance the operational efficiency and reduce the maintenance costs, especially for various remote industrial situations such as pumping stations and substations.

Powerful processing power: Schneider 140CPU53414A has 586-class CPU boasting smooth data processing capabilities at the clock frequency of about 100MHz. This makes this master run all complex control strategies and handle very large quantities of data in real time. It performs excellently in automation systems from coordinating control for numerous devices installed on the production line to quick analysis and response to real-time monitoring data.

Application

Transportation: Schneider 140CPU53414A finds use in automation control systems in transportation, such as the container loading and unloading automatics in ports. It will manage aspects like cable cranes, container cranes, and vehicle transportation, which will enable efficient loading and unloading of containers and thus improve the operational capacity of ports. punctuality standards.

Energy industry: The Schneider 140CPU53414A plays a huge role in the power and oil-energy fields as well as natural gas. In substation automation, such power system devices as transformers, circuit breakers, disconnectors, etc., are controlled and monitored, thus achieving power distribution automation. Control of switching and storage on transformers and breakers lots into a city grid distribution may affect efficiently load growing. During petrochemical sector production, the Schneider 140CPU53414A-controlled parameters such as temperature, pressure, liquid level, and flow control of material due into the reactor could continue the effectiveness of chemical production in terms of safety and efficiency, through which one would then increase production efficiency and enhance quality.

Manufacturing: In the automated machining center of mechanical manufacturing, Schneider 140CPU53414A can control the trajectory of the tool movement, control the cutting speed and feed rates, together with the material handling system to reside with its detection system in the realization of automated processing and quality inspection in parts. In the manufacturing of electronic chips, Schneider 140CPU53414A can control accurately the movement of chip heads in chip mounters, the pickup and dropping of components, and the interconnection with other monitoring and testing equipment.
