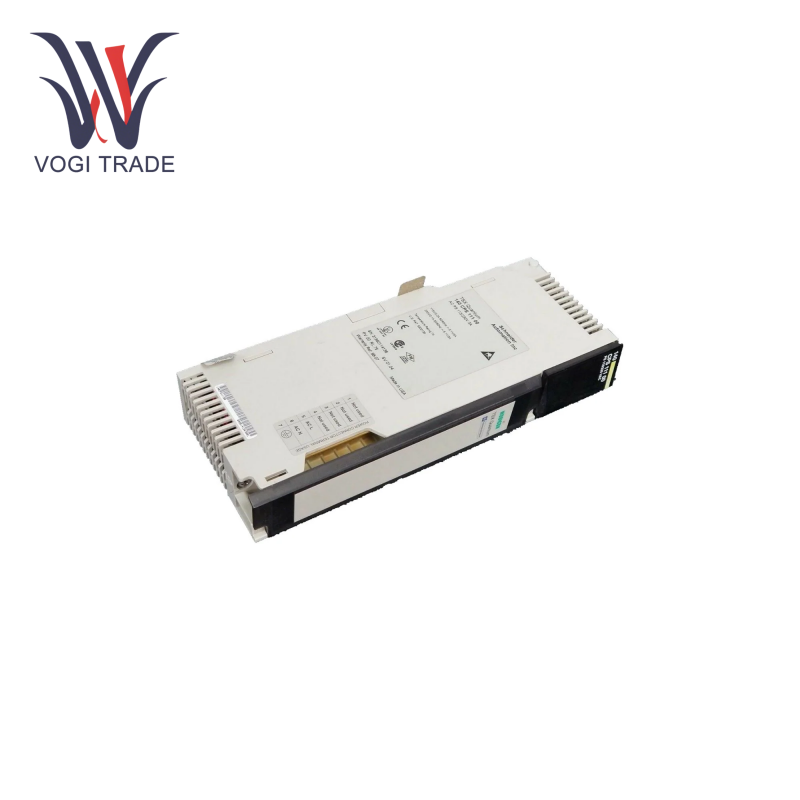

Schneider 140NOE77100

Specification

Transmission rate: 10/100Mbit/s.

Working voltage: 750mA at 5V DC.

Power consumption: 1W.

Working altitude: < = 4500m.

Physical interface: MT/RJ-100Base-FX fiber interface, RJ45-10Base-T/100Base-TX twisted pair interface.

Network protocol: Schneider 140NOE77100 supports TCP/IP protocol and is an Ethernet network module; it can be used as a B20-level network server with data editing and rack view functions.

Features

Great variety of physical interfaces: Schneider 140NOE77100 has not only MT/RJ-100Base-FX fiber interface but also RJ45-10Base-T/100Base-TX twisted pair interface. It has the features of long transmission distance and strong anti-electromagnetic interference ability fiber interfaces. Long-distance data transmission and the use in severe electromagnetic-interference industrial environments in terms of, among other things, data connection in great factories between different workshops, or key equipment data transmission in high-electromagnetic environments such as substations.

The editing function: Data editing in Schneider 140NOE77100 makes it not a simple channel for data transfer but an intelligent node of limited data programming. Among industrial networks, due to the data being very heterogeneous and complex, it may be that different devices implement peculiarities in storage of data according to formats or margins of precision. The Schneider 140NOE77100 permits uniform processing of this data-all data are merged into unit types, conversion, and processing of the raw data collected by the sensor-into a form more in attenuance with requirements of processing in downstream. This leads towards minimizing dependence upon other data processing equipment and the improvement of data processing performance by increasing efficiency and accuracy, supplying the data more towards being relied upon in analysis and decision making in actual industrial production.

Rack viewing function: network management enjoys perfect convenience with rack viewing operations of Schneider 140NOE77100. Many devices, topologies in large industrial networks, greatly expanded would cause fault locating challenging, compelling troubleshooting actions sometimes hard. A rack view function would very simply allow a network administrator to gain an intuitive understanding of the connection status, operation status, and data traffic of each device in the network, enabling fault identification of faulty devices or faulty links in a relatively short order. For example, whereas in the case of network failure in production, the administrator can make use of direct viewing of the racks to determine which device has the connectivity problem, or that is excessively loaded with work, towards targeted fault repair, hence shortening the time taken to troubleshoot networking failures greatly, increasing the availability and reliability of the networks and hence decreasing production downtime caused by network failures.

Application

Industrial automation production line: In the automation production line of automobile manufacturing, mechanical processing, and other industries, Schneider 140NOE77100 would stand at the core of the control unit, coordinating the operation of the various production devices such as the robot movement control, the conveyors' speed adjustments, and control of the start and stop functions of processing equipment for the automation and smart level of production processes and thus increasing productivity and product quality.

Process control system: In the process control system for the chemical, pharmaceutical, food, and beverage industries, Schneider 140NOE77100 collects data and processes a variety of process parameters, including temperature, pressure, flow, and liquid level, allowing it to accurately control the production process through a predetermined control strategy and guaranteeing stability in the process of production and quality of the products manufactured. For example, Schneider 140NOE77100 has been widely deployed for controlling a chemical reaction process in chemical production, drug batching, and reaction control in active pharmaceutical production.

Intelligent building automation system: In the automation control of the air conditioning system, ventilation system, lighting system, etc., Schneider 140NOE77100 realizes intelligent monitoring and control of indoor environmental conditions through connections with several sensors and actuators. The controller will therefore automatically adjust air conditioning mode settings, start and stop ventilation, and control the intensity of lighting by responding to fluctuations in environmental parameters both inside and outside the building, thus enhancing energy use efficiency and comfort in-buildings and reducing operational costs.
