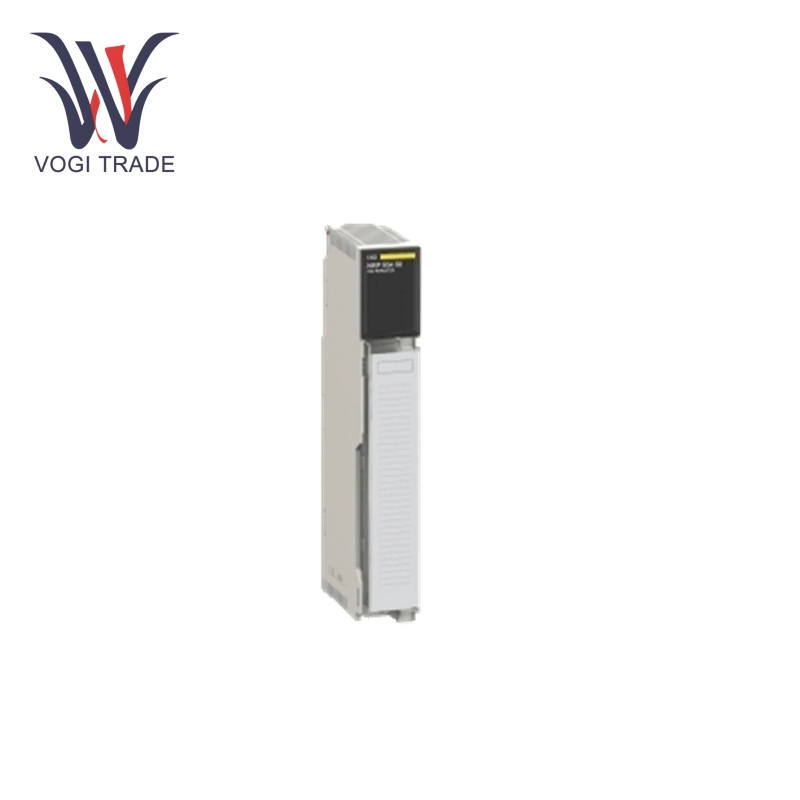

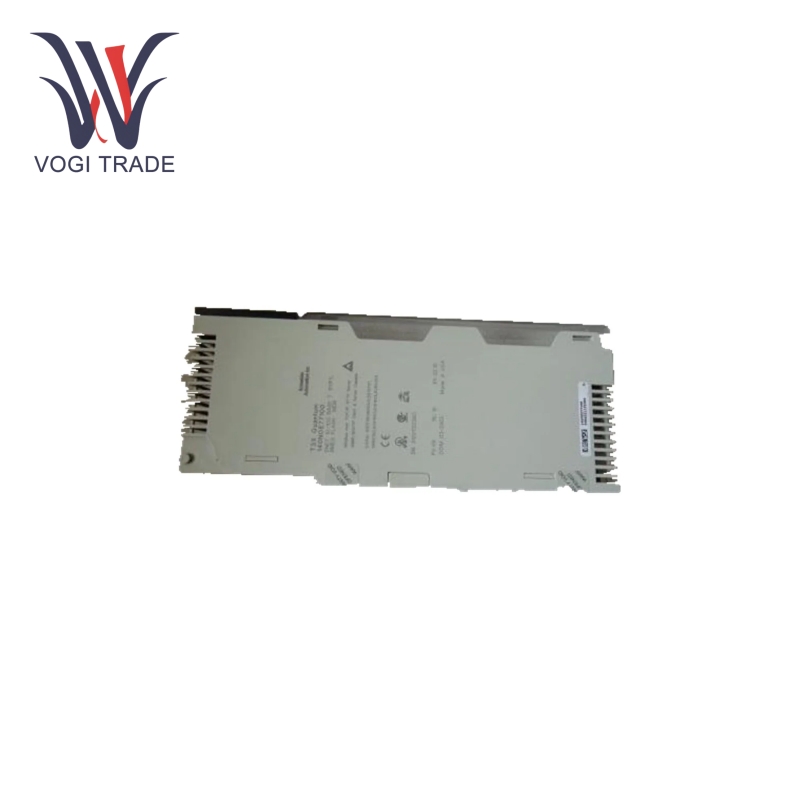

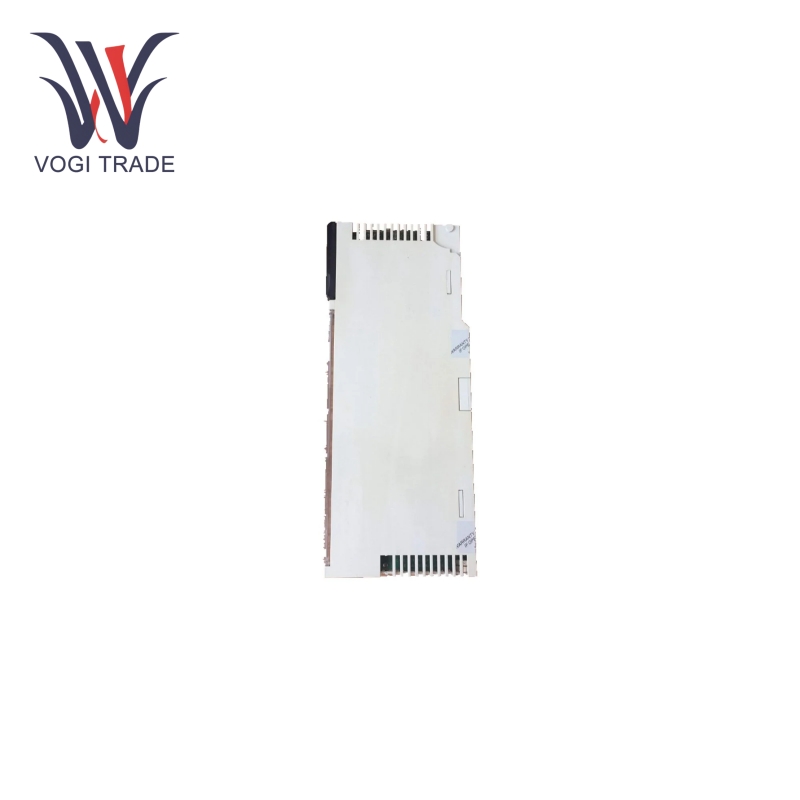

Schneider 140NRP95400

Usage Parameters

Power Requirements: Bus current requirements are 700 mA, power consumption is 5 watts, and surge current is 1 amp at 5 V DC.

Connector Type: It has 2 LC-type fiber optic connectors and 2 Ethernet connectors RJ45, which are convenient for direct connection with fiber optic cables and Ethernet networks.

Fiber Type: Schneider 140NRP95400 supports multimode fiber optic cables and is mainly used in industrial communication systems that require long-distance transmission and wide bandwidth availability.

Diagnostic Relay Port: The module contains a diagnostic relay port with a normally closed relay contact rated at 220 Vac 6 A/30 Vdc 5 A, which can facilitate diagnosis of the status of the relay and its related circuits.

Product Functions

Signal Amplification and Regeneration: As a fiber optic repeater, Schneider 140NRP95400 can amplify and regenerate optical signals transmitted over long distances to overcome signal attenuation and distortion, thereby providing reliable communication between various RIO nodes or network segments.

Noise immunity: Since the electrical signals are isolated from external electromagnetic interference, the noise immunity of the installed equipment is greatly enhanced. This is very important in industrial environments, where electrical noise and interference from motors, drives and other equipment can have adverse effects.

Topology creation: With the help of this module, network topologies that cannot be achieved with a single coaxial cable can be created. More flexible and complex network configurations such as star, ring or tree topologies can be created according to the specific requirements of industrial automation systems.

Diagnostic capabilities: The built-in diagnostic capabilities of the Schneider 140NRP95400 can detect and report errors or faults in the fiber optic network. Some examples of these problems include fiber breaks, poor connections or signal degradation, which allows faster maintenance and troubleshooting to minimize system downtime.

Compatibility: Full compatibility with Schneider Electric MODICON QUANTUM Automation allows seamless integration into existing Schneider-based control systems. This compatibility will extend to hardware and software configuration, simplifying configuration and programming.

Applications

Industrial Automation: In manufacturing plants, Schneider 140NRP95400 provides the primary connection between remote I/O devices, sensors and actuators and the central control system. It guarantees fast and reliable communication with different parts of the production line, allowing real-time monitoring and control of key processes - assembly, packaging and material handling.

Process Control: In industries such as chemical, pharmaceutical and food processing, where industrial standards are similar to consumer expectations and precise control of process variables is always required, the module transmits process signals from field instruments such as temperature sensors, pressure transmitters and flow meters to the control room. These control corrections improve product quality and production efficiency.

Building Automation: This means that in large commercial buildings or industrial facilities, Schneider 140NRP95400 can be used to integrate various building automation systems such as HVAC, lighting control and access control, so that the management and operation of these systems can be integrated, thereby improving energy efficiency and enhancing the comfort of occupants.

In the field of power generation and distribution: The modules are used in power installations and substations to interconnect teleprotection relays, meters and other intelligent electronic devices to control and monitor the system, thus ensuring timely vigilance and protection of the power grid and efficient management of all power generation and distribution processes.
